EM6500SX K1 ANH (EAPC) - Honda Generator, Made in China (SN: EAPC-1000001 - EAPC-9999999) CYLINDER HEAD Parts Diagram

Generator, Made in China

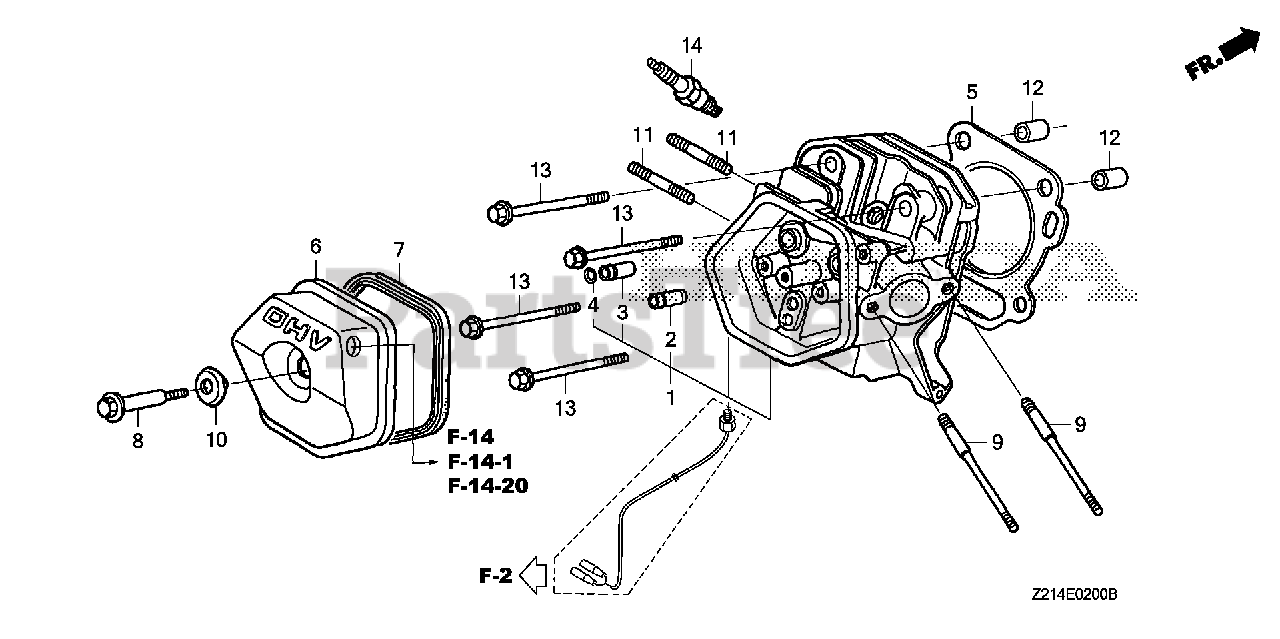

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-Z1C-406

CYLINDER HEAD

$95.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

GUIDE, VALVE (OVER SIZE)

$

$

Not available

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZF6-W00

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZF6-W01)

Note: Use up to Engine SN 1337116.

$20.99

$

In Stock, only 3 left!

0

5

Honda 12251-ZF6-W01

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

Note: Use up to Engine SN 1337116.

$20.99

$

In Stock, only 3 left!

0

5

Honda 12251-Z1C-801

GASKET, CYLINDER HEAD (THAI LEAKLESS)

Note: Use from Engine SN 1337117.

$22.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE2-020

COVER, HEAD

$61.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$12.99

$

In Stock, Qty 20+

0

8

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

9

Honda 90042-ZE3-700

BOLT, STUD (8X106)

$9.49

$

Usually ships in 3-6 days

0

10

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER

$6.99

$

In Stock, Qty 12

0

11

Honda 92900-08032-0E

BOLT, STUD (8X32)

$2.99

$

In Stock, Qty 20+

0

12

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

14

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

$3.99

$

In Stock, Qty 20+

0
