EM6500SX K1 AN (EAPC) - Honda Generator, Made in China (SN: EAPC-1000001 - EAPC-9999999) FRAME Parts Diagram

Generator, Made in China

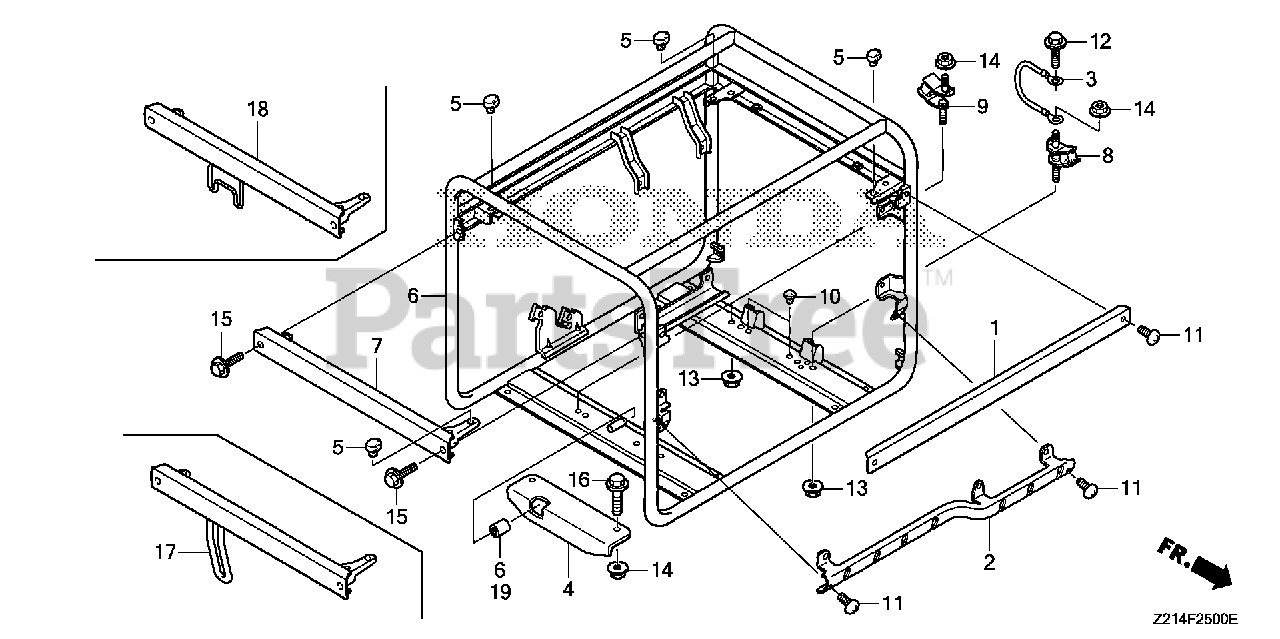

FRAME Parts Diagram

  • Title

1

Honda 32378-Z22-000ZA

GUARD, CONTROL PANEL (UPPER) *NH105* (MAT BLACK)

$54.99

$

Usually ships in 3-6 days

0

2

Honda 32379-Z22-000ZA

GUARD, CONTROL PANEL (LOWER) *NH105* (MAT BLACK)

$50.99

$

Usually ships in 3-6 days

0

3

Honda 32610-ZD1-A40

CABLE, SUB-GROUND

$7.99

$

Usually ships in 3-6 days

0

4

Honda 50138-Z16-000

BRACKET, STOPPER

$31.99

$

Usually ships in 3-6 days

0

5

Honda 50153-ZR6-000

RUBBER, FUEL TANK MOUNTING

$6.49

$

Usually ships in 3-6 days

0

6

Honda 50310-Z21-A30ZA

FRAME *NH105* (EM) (MAT BLACK)

$614.99

$

Usually ships in 3-6 days

0

7

Honda 50315-Z22-000ZA

FRAME, SIDE *NH105* (MAT BLACK)

$71.99

$

Usually ships in 3-6 days

0

8

Honda 68325-ZB4-000

RUBBER (LOWER)

Note: Use up to Frame SN 1012697.

$41.99

$

In Stock, only 2 left!

0

8

Honda 68325-Z21-E30

RUBBER (LOWER)

Note: Use from Frame SN 1012698.

$25.99

$

Usually ships in 3-6 days

0

9

Honda 68325-Z22-E30

RUBBER (LOWER)

Note: Use from Frame SN 1012698.

$25.99

$

In Stock, only 2 left!

0

9

Honda 68325-899-000

RUBBER (LOWER)

Note: Use up to Frame SN 1012697.

$53.99

$

Usually ships in 3-6 days

0

10

Honda 68331-Z18-000

RUBBER, BUMP STOP

$3.99

$

Usually ships in 3-6 days

0

11

Honda 90101-Z22-000

SCREW, TRUSS (6X12)

$0.99

$

In Stock, Qty 10

0

12

Honda 90148-SE0-003

BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

15

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 95701-10040-00

BOLT, FLANGE (10X40)

$1.99

$

In Stock, only 4 left!

0
