EM650 A (EA3) - Honda Generator, Made in Japan (SN: EA3-1000001 - EA3-9999999) EX/EM650CRANKCASE COVER Parts Diagram

Generator, Made in Japan

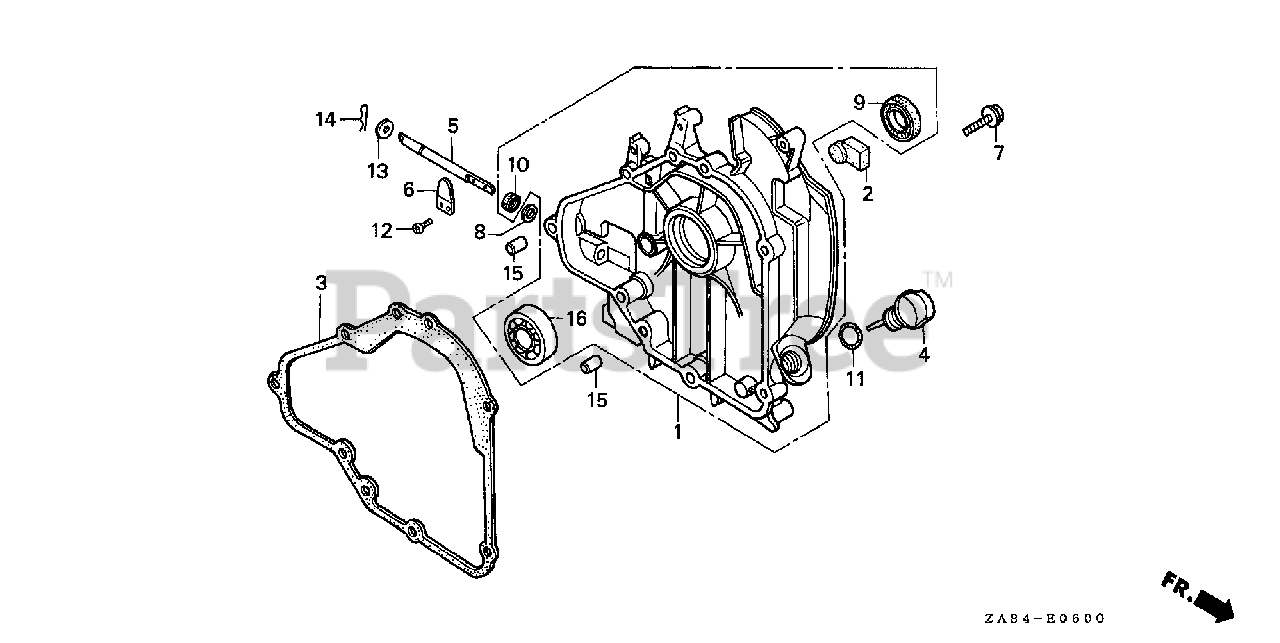

EX/EM650CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZA8-405

COVER ASSY., CRANKCASE

$182.99

$

Usually ships in 3-6 days

0

2

Honda 11315-ZA8-000

RUBBER, BUMP STOP

$

$

Not available

3

Honda 11381-ZA8-931

GASKET, CASE COVER

$10.99

$

In Stock, only 1 left!

0

4

Honda 15620-ZA8-000

SEE PART DETAILS - PRI; CAP, OIL FILLER

Note: Use up to Engine SN 1373420.

$

$

Not available

4

Honda 15620-ZE1-003

SEE PART DETAILS - PRI; CAP, OIL FILLER

Note: Use from Engine SN 1373421.

$7.99

$

In Stock, only 1 left!

0

5

Honda 16541-ZA8-900

SHAFT, GOVERNOR ARM

$10.99

$

In Stock, only 1 left!

0

6

Honda 16542-ZA8-000

FORK, GOVERNOR

$5.49

$

In Stock, only 1 left!

0

7

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.99

$

In Stock, Qty 20+

0

8

Honda 90444-ZA8-000

WASHER, THRUST

$1.49

$

In Stock, Qty 10

0

9

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$13.99

$

Usually ships in 3-6 days

0

10

Honda 91231-891-003

OIL SEAL (6X11X4)

$3.49

$

In Stock, only 1 left!

0

11

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

12

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

15

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

16

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
