EM650 A (EA3) - Honda Generator, Made in Japan (SN: EA3-1000001 - EA3-9999999) EM650 MUFFLER Parts Diagram

Generator, Made in Japan

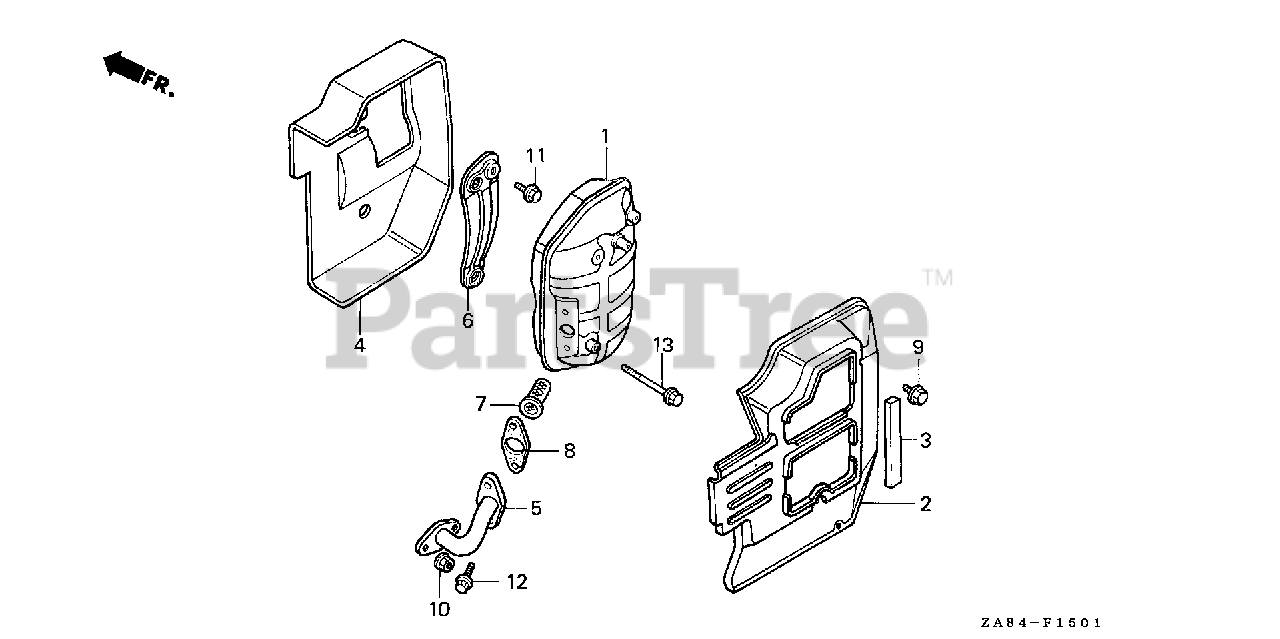

EM650 MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZA8-831

MUFFLER

$

$

Not available

2

Honda 18320-ZA8-800

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER

$

$

Currently unavailable

3

Honda 18321-ZA8-800

SEAL, MUFFLER (OUTER)

$5.49

$

Usually ships in 3-6 days

0

4

Honda 18325-ZA8-800

SEPARATOR, GLASS WOOL

$71.99

$

Usually ships in 3-6 days

0

5

Honda 18330-ZA8-800

PIPE, EX.

$37.99

$

Usually ships in 3-6 days

0

6

Honda 18332-ZA8-800

BRACKET, MUFFLER

$15.99

$

Usually ships in 3-6 days

0

7

Honda 18355-959-620

ARRESTER, SPARK

$

$

Not available

8

Honda 18381-ZA8-800

GASKET, MUFFLER

$4.99

$

In Stock, only 2 left!

0

9

Honda 90011-ZG0-000

BOLT, FLANGE (6X8)
(Superseded to 95701-06008-00)

$4.49

$

In Stock, Qty 20+

0

10

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

11

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

12

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

13

Honda 95701-06065-00

BOLT, FLANGE (6X65)

$1.99

$

Usually ships in 3-6 days

0
