EM650 A (EA3) - Honda Generator, Made in Japan (SN: EA3-1000001 - EA3-9999999) EM650 FUEL TANK Parts Diagram

Generator, Made in Japan

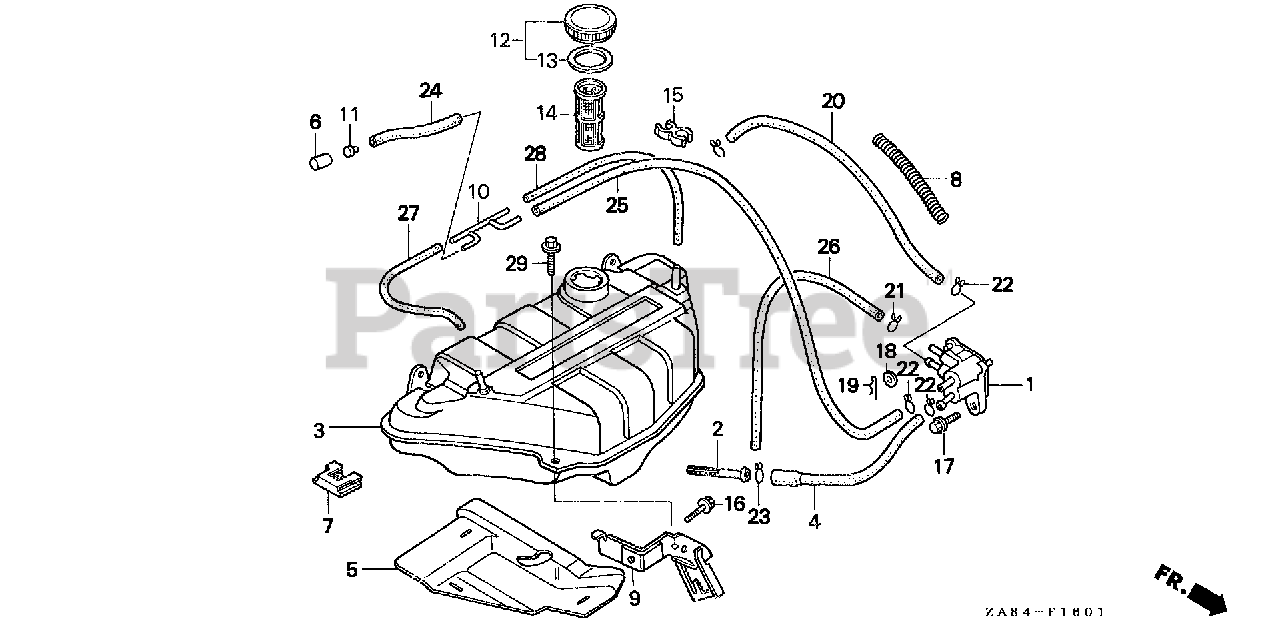

EM650 FUEL TANK Parts Diagram

  • Title

1

Honda 16950-ZA8-801

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-ZA8-802)

Note: Use up to Frame SN 1075146.

$

$

Not available

1

Honda 16950-ZA8-802

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Not available

2

Honda 16952-ZA8-800

FILTER, FUEL

$9.99

$

In Stock, Qty 20+

0

3

Honda 17500-ZA8-801

TANK, FUEL

$

$

Not available

4

Honda 17512-ZA8-800

TUBE, FUEL TANK

$14.99

$

In Stock, only 2 left!

0

5

Honda 17520-ZA8-800

SEPARATOR, TANK (LOWER)

$23.99

$

Usually ships in 3-6 days

0

6

Honda 17523-ZA8-801

ELEMENT, HANDLE BREATHER

$1.99

$

In Stock, only 2 left!

0

7

Honda 17526-ZA8-800

RUBBER, TANK MOUNTING CENTER

$6.49

$

Usually ships in 3-6 days

0

8

Honda 17532-404-000

SPRING, FUEL TUBE COVER

$

$

Not available

9

Honda 17535-ZA8-800

STAY, TANK

$21.99

$

Usually ships in 3-6 days

0

10

Honda 17602-ZA8-800

JOINT, BREATHER TUBE

$

$

Not available

11

Honda 17604-ZC0-003

FILTER, GASOLINE

$7.99

$

Usually ships in 3-6 days

0

12

Honda 17620-ZA7-003

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$

$

Not available

13

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-096-702)

$3.99

$

In Stock, only 2 left!

0

14

Honda 17670-ZC0-000

FILTER, FUEL

Note: Use up to Frame SN 1037800.

$

$

Not available

14

Honda 17670-ZC0-630

FILTER, FUEL

Note: Use from Frame SN 1037801.

$9.49

$

Usually ships in 3-6 days

0

15

Honda 32802-MB2-000

CLAMP, IGNITION WIRE

Note: Use from Frame SN 1010596.

$

$

Not available

16

Honda 90003-892-000

BOLT, FLANGE (5X12)

$1.99

$

In Stock, only 1 left!

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X230)

$57.99

$

In Stock, Qty 8

0

21

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

22

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

23

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 18

0

24

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X55)

$15.99

$

Usually ships in 3-6 days

0

25

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X315)

$15.99

$

Usually ships in 3-6 days

0

26

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X380)

$15.99

$

Usually ships in 3-6 days

0

27

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X135)

$53.99

$

Usually ships in 3-6 days

0

28

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X160)

$53.99

$

Usually ships in 3-6 days

0

29

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0
