EM6000GP A (EZGR) - Honda Generator, Made in Japan (SN: EZGR-1000001 - EZGR-1009999) ROTOR + STATOR Parts Diagram

Generator, Made in Japan

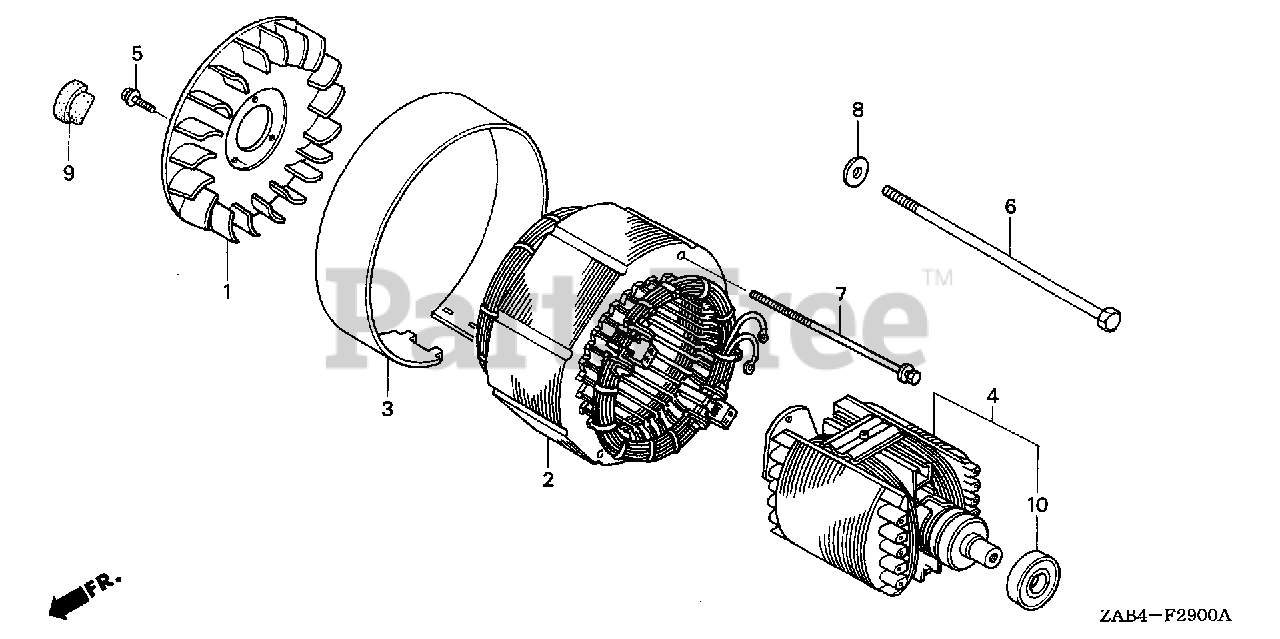

ROTOR + STATOR Parts Diagram

  • Title
1

Honda 31112-ZB4-003

FAN, GENERATOR COOLING

$123.99

$

Usually ships in 3-6 days

0

2

Honda 31120-ZD1-A41

STATOR ASSY.

$

$

Not available

3

Honda 31127-ZC2-831

COVER, STATOR

$59.99

$

Usually ships in 3-6 days

0

4

Honda 31130-ZD1-E31

SEE PART DETAILS - SUP; ROTOR

$

$

Not available

5

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

6

Honda 90101-ZD1-E30

BOLT, HEX. (10X265)

$29.99

$

Usually ships in 3-6 days

0

7

Honda 90102-ZD1-E31

BOLT-WASHER (5X210)

$13.99

$

Usually ships in 3-6 days

0

8

Honda 90504-ZA0-000

WASHER (10.5MM)

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90855-ZB4-000

GROMMET, CRANKCASE

$4.49

$

Usually ships in 3-6 days

0

10

Honda 91051-ZB4-003

BEARING ASSY. (6204)

$33.99

$

Usually ships in 3-6 days

0
