EM6000GP A/A (EZGR) - Honda Generator, Made in Japan (SN: EZGR-1010001 - EZGR-9999999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

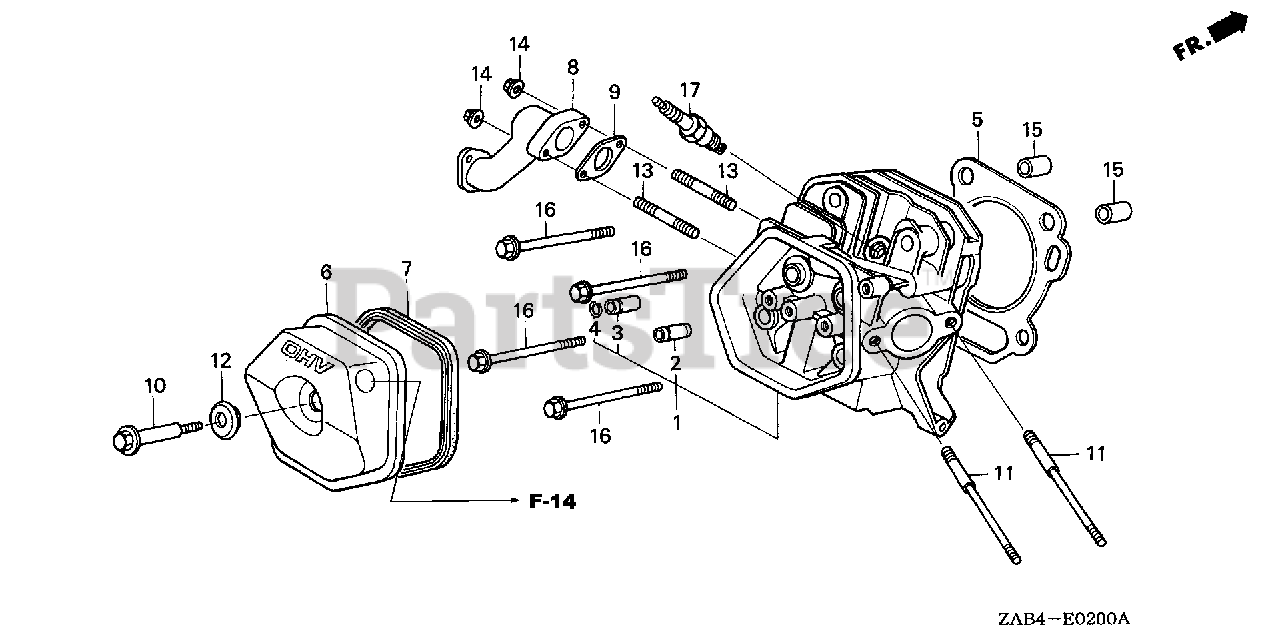

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZF6-415

SEE PART DETAILS - PRI; CYLINDER HEAD

$365.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZF6-W00

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZF6-W01)

$20.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE2-020

COVER, HEAD

$58.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER

$11.99

$

In Stock, Qty 9

0

8

Honda 18330-ZE3-710

PIPE, EX.

$76.99

$

Usually ships in 3-6 days

0

9

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

9

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER)

$4.99

$

In Stock, Qty 20+

0

10

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

11

Honda 90042-ZE3-700

BOLT, STUD (8X106)

$8.99

$

Usually ships in 3-6 days

0

12

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.49

$

In Stock, Qty 6

0

13

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X32)

$2.99

$

In Stock, only 1 left!

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94301-12200

PIN A, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

17

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0
