EM600 A (EM600) - Honda Generator, Made in Japan (SN: EM600-1000001 - EM600-9999999) K1/600 PANEL Parts Diagram

Generator, Made in Japan

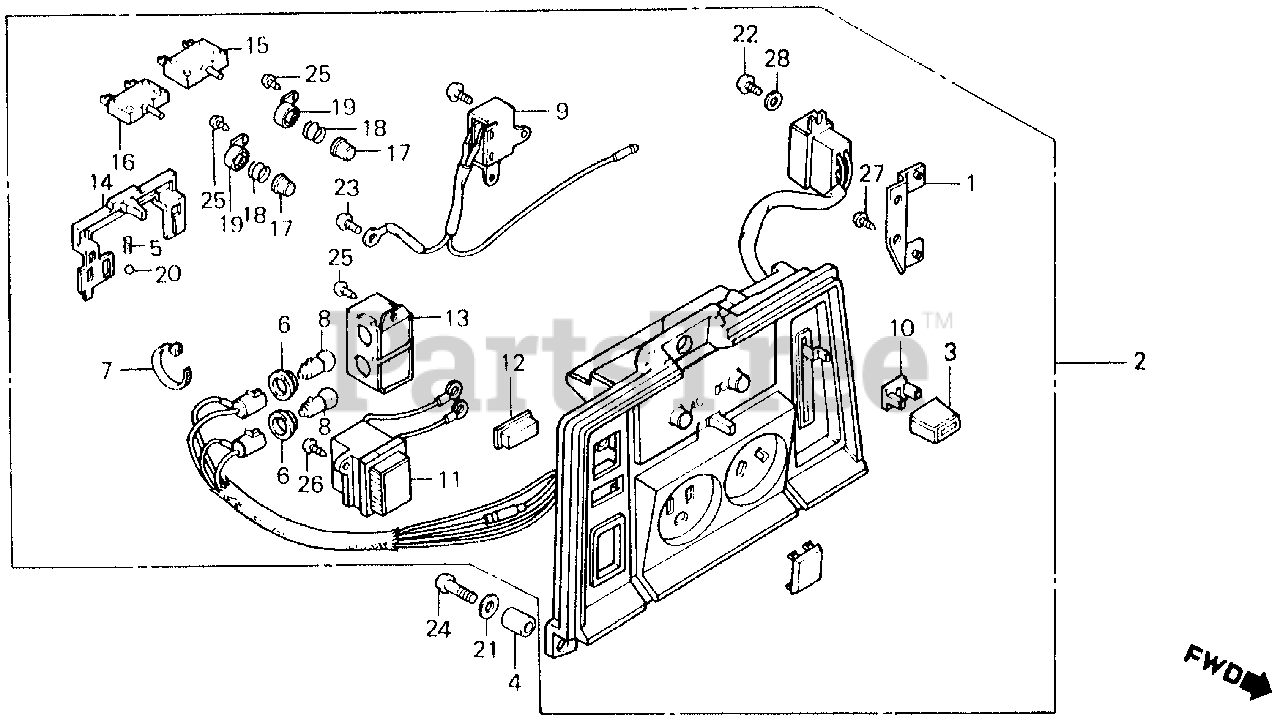

K1/600 PANEL Parts Diagram

  • Title

1

Honda 32301-ZA2-003

STAY, CONNECTOR

$

$

Not available

2

Honda 32340-ZA2-631

PANEL ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 32343-892-003

SEE PART DETAILS - PRI; KNOB, VALVE LEVER

$13.99

$

Usually ships in 3-6 days

0

4

Honda 32344-892-000

COLLAR, PANEL

$

$

Not available

5

Honda 32348-892-003

SPRING, CLICK

$

$

Not available

6

Honda 32901-892-003

GROMMET

$

$

Not available

7

Honda 32902-892-003

BAND

$4.99

$

In Stock, only 2 left!

0

8

Honda 34902-202-000

BULB, DASH (6V3W) (STANLEY)

$3.99

$

In Stock, Qty 17

0

9

Honda 36100-892-003

SWITCH ASSY., STOP (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 36106-892-003

BUSH, CONTROL KNOB

$6.49

$

Usually ships in 3-6 days

0

11

Honda 37500-892-013

SEE PART DETAILS - PRI; METER, FREQUENCY (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 37901-892-003

LENS, PILOT LAMP (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 37902-892-003

CASE, LAMP

$

$

Not available

14

Honda 38203-892-013

SHUTTER

Note: Use up to Frame SN 1044470.

$3.49

$

Usually ships in 0 days

0

14

Honda 38203-892-023

SHUTTER (NOT AVAILABLE)

Note: Use from Frame SN 1044471.

$

$

Currently unavailable

15

Honda 38240-892-000

PROTECTOR, CIRCUIT (12A) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 38241-892-630

PROTECTOR, CIRCUIT (3.5A) (NOT AVAILABLE)

$

$

Not available

16

Honda 38241-ZA2-640

PROTECTOR, CIRCUIT (5A)

$

$

Currently unavailable

17

Honda 38251-892-003

CAP, BREAKER

$

$

Not available

18

Honda 38253-892-003

SPRING, RETURN

$

$

Currently unavailable

19

Honda 38254-892-003

HOLDER, BREAKER (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 90151-892-003

BALL, CLICK

$

$

Not available

21

Honda 90483-040-000

SEE PART DETAILS - SUP; WASHER, STOPPER (5MM)
(Superseded to 90483-041-000)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 93500-03008-0H

SCREW, PAN (3X8)

$0.99

$

In Stock, Qty 8

0

23

Honda 93500-03010-0H

SCREW, PAN (3X10)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$1.49

$

In Stock, Qty 8

0

25

Honda 93901-32020

SCREW, TAPPING (3X6)

$

$

Not available

26

Honda 93901-32320

SCREW, TAPPING (3X12)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 93901-34520

SCREW, TAPPING (4X20)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94101-03800

WASHER, PLAIN (3MM)

$1.49

$

In Stock, only 4 left!

0
