EM600 A (EM600) - Honda Generator, Made in Japan (SN: EM600-1000001 - EM600-9999999) FRONT COVER + REAR COVER Parts Diagram

Generator, Made in Japan

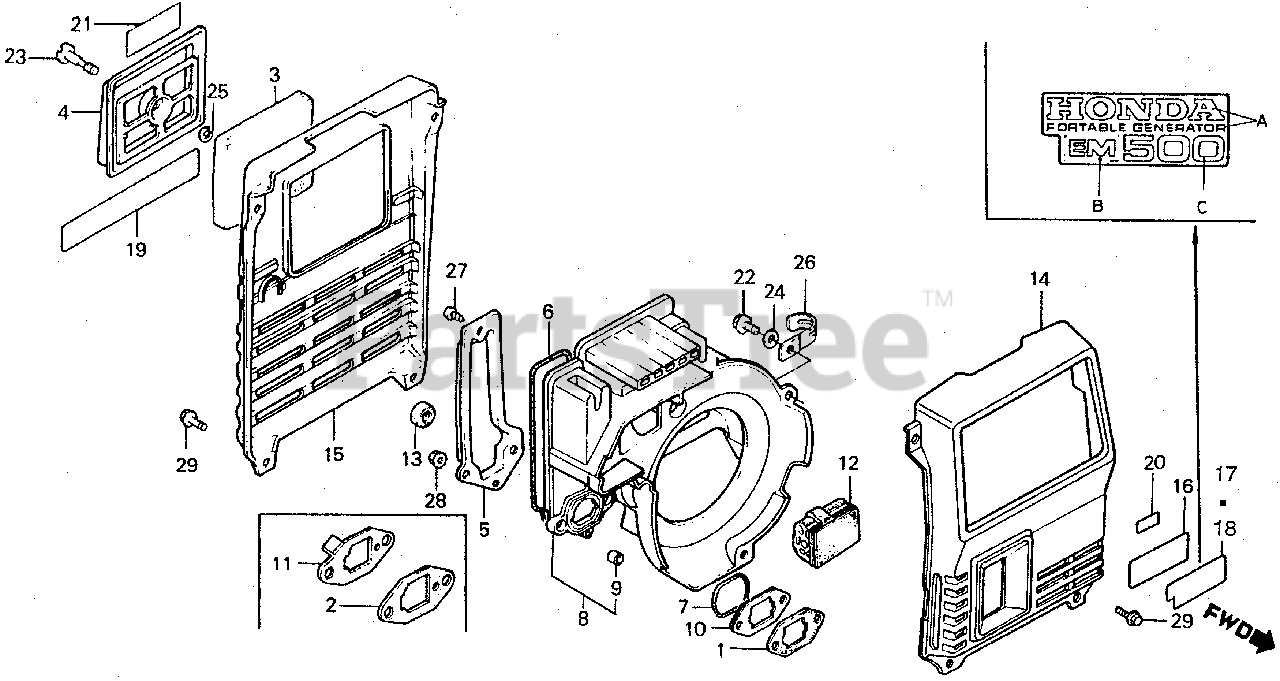

FRONT COVER + REAR COVER Parts Diagram

  • Title

1

Honda 16269-892-306

GASKET, AIR CLEANER

$

$

Not available

3

Honda 17211-892-000

ELEMENT, AIR CLEANER

$6.49

$

In Stock, only 1 left!

0

4

Honda 17231-892-000

COVER, AIR CLEANER (NOT AVAILABLE)

$

$

Not available

5

Honda 17251-892-000

COVER, MUFFLER

$

$

Currently unavailable

6

Honda 17252-892-003

RUBBER, MUFFLER SEAL (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 17253-892-003

O-RING, MUFFLER (NOT AVAILABLE)

$

$

Not available

8

Honda 19611-ZA2-000

COVER, FAN (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 19612-892-000

COLLAR, FAN COVER (NOT AVAILABLE)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 19613-892-000

BRACKET, FAN COVER (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 19616-892-000

GROMMET, FAN COVER

$

$

Not available

13

Honda 28415-892-000

RUBBER, STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 63310-ZA2-000MA

COVER, FR. *NH44MS* (SPECIAL SILVER METALLIC)

$

$

Not available

15

Honda 63410-892-010MA

SEE PART DETAILS - PRI; COVER, RR. *NH44MS* (SPECIAL SILVER METALLIC)

$

$

Currently unavailable

16

Honda 87101-ZA2-631

SEE PART DETAILS - PRI; EMBLEM

$

$

Currently unavailable

17

Honda 87101-ZA2-630

SEE PART DETAILS - SUP; EMBLEM

$

$

Not available

17

Honda 87101-ZA2-631

SEE PART DETAILS - PRI; EMBLEM

$

$

Currently unavailable

19

Honda 87150-ZA2-630

PLATE, CAUTION

$

$

Currently unavailable

20

Honda 87524-839-670

MARK C, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 87533-892-620

MARK, AIR CLEANER

$

$

Currently unavailable

22

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

23

Honda 90028-888-000

BOLT, AIR CLEANER COVER (NOT AVAILABLE)

$

$

Not available

24

Honda 90483-040-000

SEE PART DETAILS - SUP; WASHER, STOPPER (5MM)
(Superseded to 90483-041-000)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90601-836-000

E-RING (4MM)

$

$

Not available

26

Honda 91405-892-000

CLIP A, WIRE

$

$

Currently unavailable

27

Honda 93901-34210

SCREW, TAPPING (4X10)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

29

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

29

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0
