EM5000X A (EA7) - Honda Generator, Made in Japan (SN: EA7-2000001 - EA7-3000000) STATOR Parts Diagram

Generator, Made in Japan

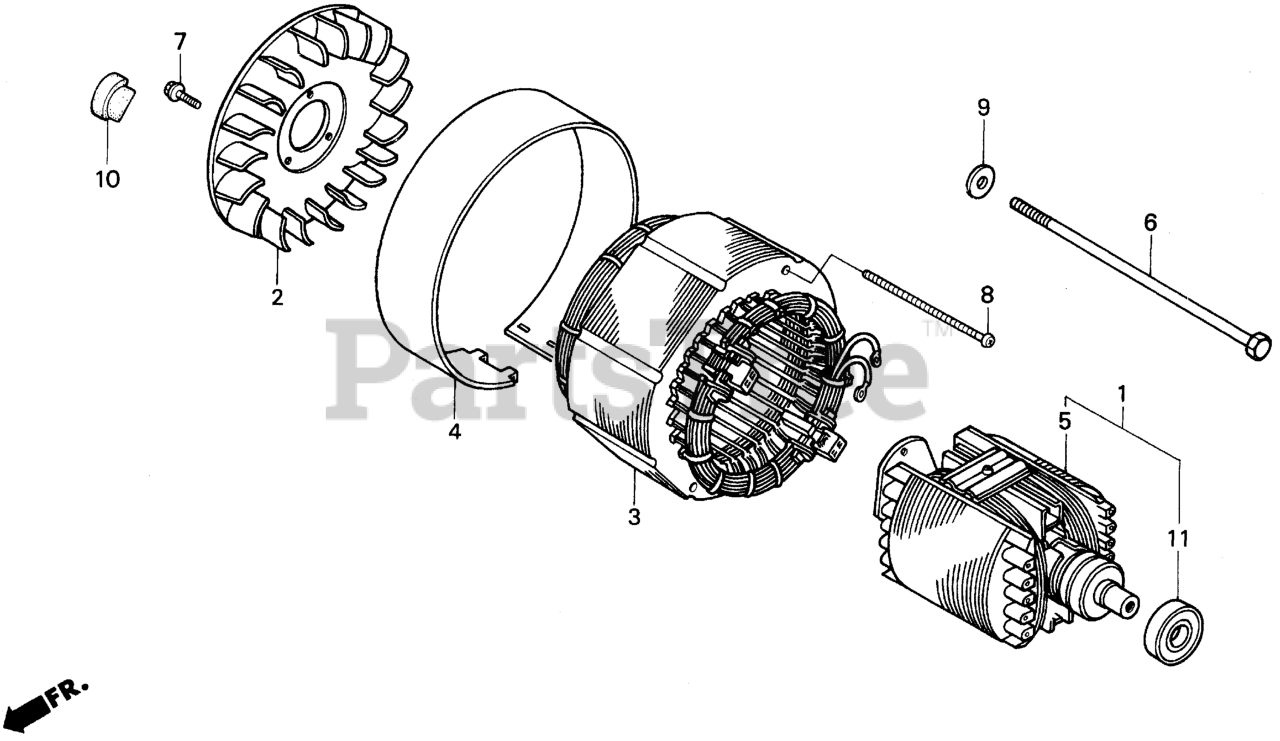

STATOR Parts Diagram

  • Title

1

Honda 31130-ZC2-033

SEE PART DETAILS - PRI; ROTOR

Note: Use from Frame SN 2000328.

$1371.99

$

Usually ships in 3-6 days

0

2

Honda 31112-ZB4-003

FAN, GENERATOR COOLING

$123.99

$

Usually ships in 3-6 days

0

3

Honda 31120-ZC2-631

STATOR ASSY.

$1681.99

$

Usually ships in 3-6 days

0

4

Honda 31127-ZC2-003

COVER, STATOR

$

$

Not available

5

Honda 31130-ZC2-003

SEE PART DETAILS - SUP; ROTOR

Note: Use up to Frame SN 2000327.

$

$

Not available

6

Honda 90021-ZC2-000

BOLT, HEX. (10X250)

$20.99

$

Usually ships in 3-6 days

0

7

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$3.49

$

Usually ships in 3-6 days

0

8

Honda 90091-ZC2-003

BOLT-WASHER (5X195)

$12.99

$

Usually ships in 3-6 days

0

9

Honda 90504-ZA0-000

WASHER (10.5MM)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90855-ZB4-000

GROMMET, CRANKCASE

$4.49

$

Usually ships in 3-6 days

0

11

Honda 91051-ZB4-003

BEARING ASSY. (6204)

Note: Use from Frame SN 2000328.

$35.99

$

Usually ships in 3-6 days

0

11

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

Note: Use up to Frame SN 2000327.

$28.99

$

Usually ships in 3-6 days

0
