EM5000X A (EA7) - Honda Generator, Made in Japan (SN: EA7-2000001 - EA7-3000000) REAR HOUSING Parts Diagram

Generator, Made in Japan

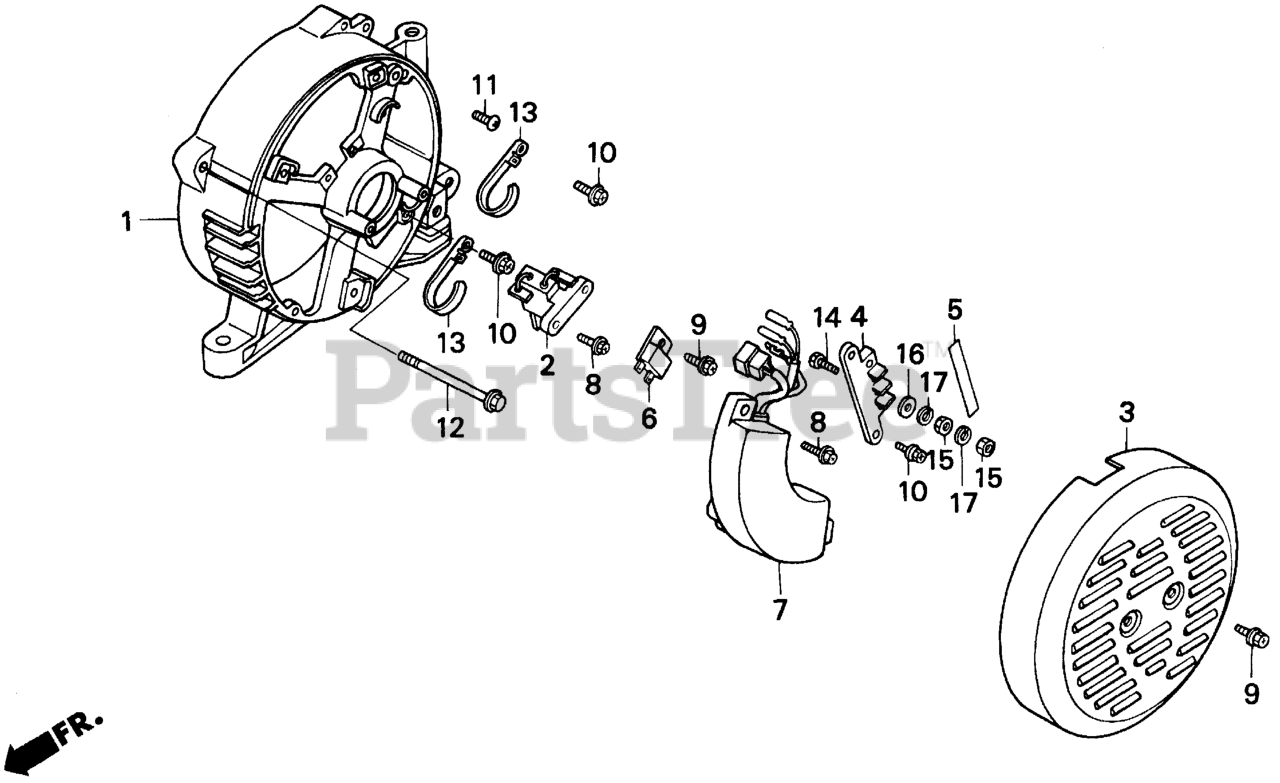

REAR HOUSING Parts Diagram

  • Title

1

Honda 311A0-ZB4-003H

HOUSING, RR. *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use up to Frame SN 2000327.

$

$

Not available

1

Honda 311A0-ZB4-013ZA

HOUSING, RR. *R8* (BRIGHT RED)

Note: Use from Frame SN 2000328 to 2000537.

$

$

Currently unavailable

1

Honda 311A0-ZB4-023

HOUSING, RR.

Note: Use from Frame SN 2000538.

$

$

Currently unavailable

2

Honda 31106-ZB4-003

BRUSH ASSY.

$76.99

$

In Stock, only 1 left!

0

3

Honda 31113-ZB4-003ZA

SEE PART DETAILS - SUP; COVER, GENERATOR END *R8* (BRIGHT RED)
(Superseded to 31113-ZB4-003ZF)

$

$

Not available

4

Honda 31118-898-691

TERMINAL, VOLT CHANGE

$46.99

$

Usually ships in 3-6 days

0

5

Honda 31119-ZB4-631

MARK, VOLT

$4.49

$

Usually ships in 3-6 days

0

6

Honda 31720-ZA8-013

SEE PART DETAILS - PRI; DIODE, D.C.
(Superseded to 31720-ZA8-V00)

$48.99

$

Usually ships in 3-6 days

0

7

Honda 32350-ZB4-631

REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use up to Frame SN 2000537.

$

$

Currently unavailable

7

Honda 32350-ZB4-632

REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use from Frame SN 2000538.

$

$

Not available

8

Honda 90031-ZC0-003

SCREW, TAPPING (5X18)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90031-875-003

SCREW, TAPPING (5X12) (GROUND CABLE)

$2.99

$

In Stock, only 4 left!

0

10

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

Note: Use from Frame SN 2000538. Use up to Frame SN 2000537.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90102-899-003

SCREW, PAN (5X12) (GROUND CABLE)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90157-ZC2-003

BOLT, FLANGE (6X160)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 90673-ZB4-003

TIE, CABLE

Note: Use from Frame SN 2000538. Use up to Frame SN 2000537.

$5.99

$

Usually ships in 3-6 days

0

14

Honda 92000-05020-3J

SEE PART DETAILS - SUP; BOLT, HEX. (5X20)

$

$

Currently unavailable

15

Honda 94002-05390-0S

NUT, HEX. (5MM)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0

17

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215).

$1.49

$

Usually ships in 3-6 days

0
