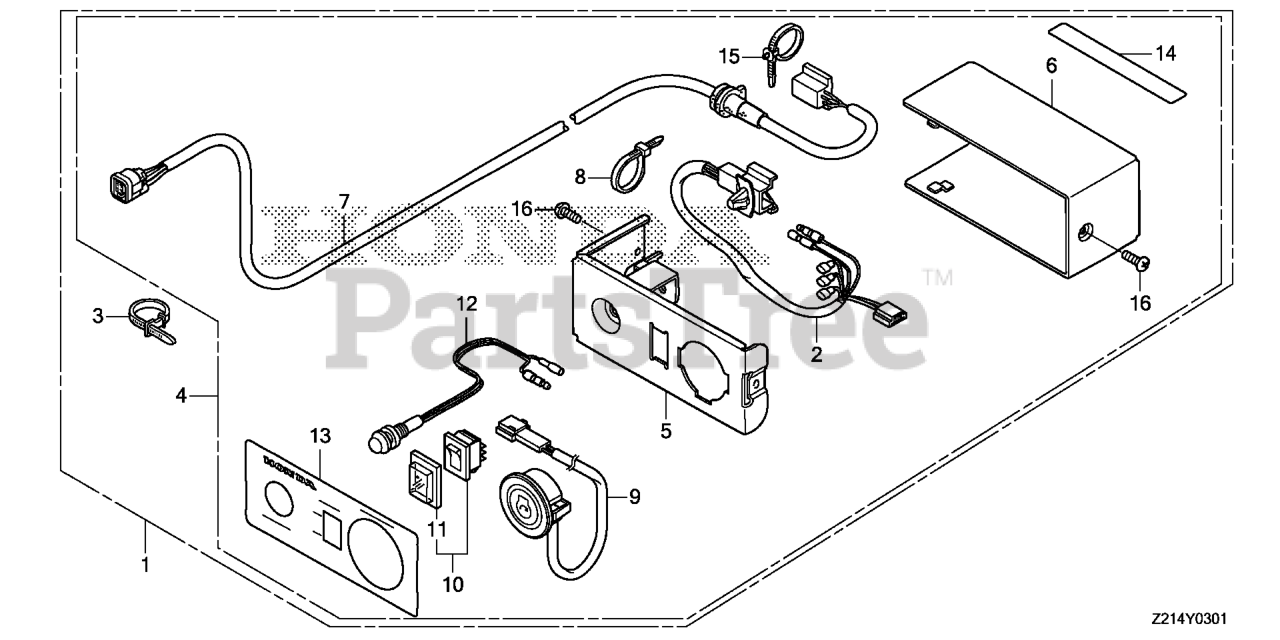

EM5000SX K3 AG (EBMC) - Honda Generator, Made in China (SN: EBMC-1500001 - EBMC-9999999) REMOTE CONTROL KIT (2) Parts Diagram

Generator, Made in China

REMOTE CONTROL KIT (2) Parts Diagram

  • Title

1

Honda 06610-Z22-860ZA

CONTROL KIT, REMOTE (10M) *NH105* (MAT BLACK)

Note: (Optional).

$186.99

$

Usually ships in 3-6 days

0

1

Honda 06610-Z22-870ZA

CONTROL KIT, REMOTE (20M) *NH105* (MAT BLACK)

Note: (Optional).

$217.99

$

Usually ships in 3-6 days

0

1

Honda 06610-Z22-880ZA

CONTROL KIT, REMOTE (30M) *NH105* (MAT BLACK)

Note: (Optional).

$258.99

$

Usually ships in 3-6 days

0

2

Honda 32140-Z22-PA0

HARNESS ASSY., REMOTE CONTROL (AG)

Note: (Optional).

$32.99

$

Usually ships in 3-6 days

0

3

Honda 32161-367-690

BAND, WIRE Use up to Frame SN 1001879.

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

4

Honda 32380-Z22-PA0ZA

BOX ASSY., REMOTE CONTROL (10M) *NH105* (MAT BLACK)

Note: (Optional).

$350.99

$

Usually ships in 3-6 days

0

4

Honda 32380-Z22-PB0ZA

BOX ASSY., REMOTE CONTROL (20M) *NH105* (MAT BLACK)

Note: (Optional).

$409.99

$

Usually ships in 3-6 days

0

4

Honda 32380-Z22-PC0ZA

BOX ASSY., REMOTE CONTROL (30M) *NH105* (MAT BLACK)

Note: (Optional).

$602.99

$

Usually ships in 3-6 days

0

5

Honda 32381-Z22-PA0ZA

PANEL, REMOTE CONTROL *NH105* (MAT BLACK)

Note: (Optional).

$53.99

$

Usually ships in 3-6 days

0

6

Honda 32382-Z22-800ZA

COVER, REMOTE CONTROL *NH105* (MAT BLACK)

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

7

Honda 32520-Z22-PA0

CABLE ASSY., REMOTE CONTROL (10M)

Note: (Optional).

$161.99

$

Usually ships in 3-6 days

0

7

Honda 32520-Z22-PB0

CABLE ASSY., REMOTE CONTROL (20M)

Note: (Optional).

$225.99

$

Usually ships in 3-6 days

0

7

Honda 32520-Z22-PC0

CABLE ASSY., REMOTE CONTROL (30M)

Note: (Optional).

$296.99

$

Usually ships in 3-6 days

0

8

Honda 32903-Z22-000

TIE, CABLE (C)

Note: (Optional).

$2.49

$

In Stock, only 1 left!

0

9

Honda 35150-Z37-A32

SWITCH ASSY., START

Note: (Optional).

$26.99

$

Usually ships in 3-6 days

0

10

Honda 35170-Z22-PA1

SWITCH ASSY., MAIN

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

11

Honda 35335-YR1-J01

CAP,SELECT SW

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 37570-Z22-PA1

LED ASSY.

Note: (Optional).

$100.99

$

Usually ships in 3-6 days

0

13

Honda 87247-Z37-800

MARK, REMOTE CONTROL (NOT AVAILABLE)

Note: (Optional).

$27.99

$

Usually ships in 3-6 days

0

14

Honda 87248-Z22-PA0

MARK, SHUTOFF NOTE

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

15

Honda 90615-PN3-003

BAND, HARNESS (98MM) (NATURAL)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

16

Honda 93500-04008-0G

SEE PART DETAILS - PRI; SCREW, PAN (4X8)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
