EM5000SX K1 A/B (EA7) - Honda Generator, Made in Japan (SN: EA7-1125949 - EA7-1199999) STATOR Parts Diagram

Generator, Made in Japan

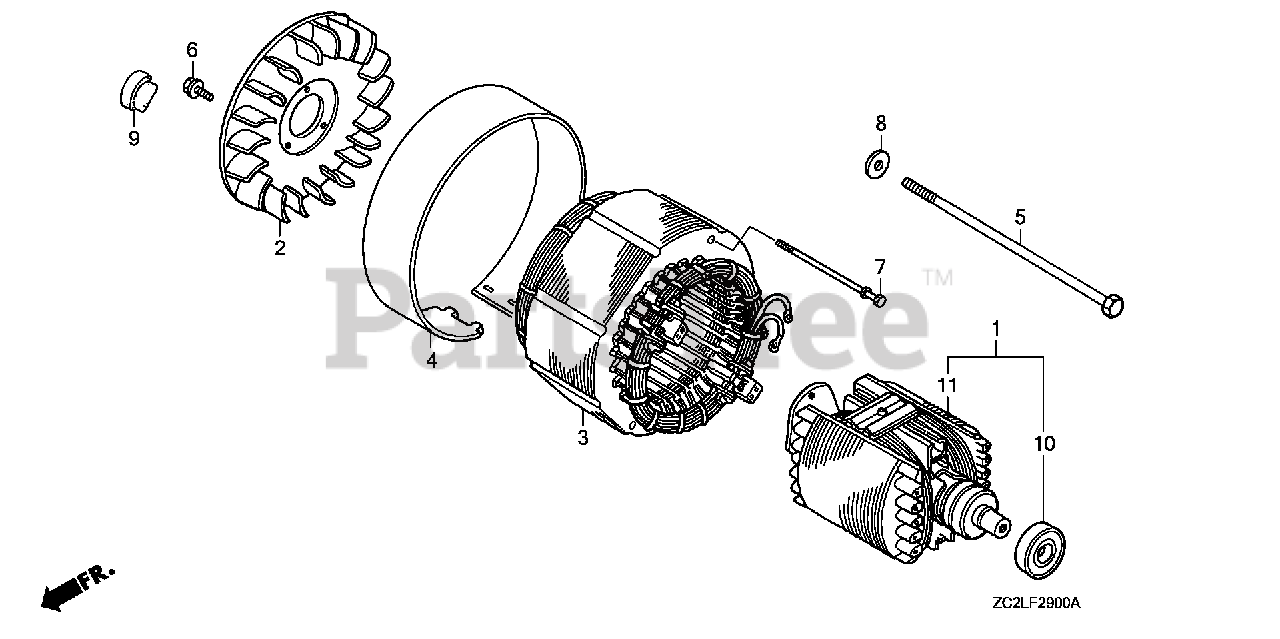

STATOR Parts Diagram

  • Title

1

Honda 31130-ZC2-033

ROTOR

$1312.99

$

Usually ships in 3-6 days

0

2

Honda 31112-ZB4-003

FAN, GENERATOR COOLING

$123.99

$

Usually ships in 3-6 days

0

3

Honda 31120-ZC2-631

STATOR ASSY.

$1609.99

$

Usually ships in 3-6 days

0

4

Honda 31127-ZC2-631

COVER, STATOR

$47.99

$

Usually ships in 3-6 days

0

5

Honda 90021-ZC2-000

BOLT, HEX. (10X250)

$19.99

$

Usually ships in 3-6 days

0

6

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

7

Honda 90091-ZC2-003

BOLT-WASHER (5X195)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 90504-ZA0-000

WASHER (10.5MM)

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90855-ZB4-000

GROMMET, CRANKCASE

Note: Use from Frame SN 1133502.

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90855-ZB4-000

GROMMET, CRANKCASE

Note: Use up to Frame SN 1133501.

$4.49

$

Usually ships in 3-6 days

0

10

Honda 91051-ZB4-003

BEARING ASSY. (6204)

$33.99

$

Usually ships in 3-6 days

0
