EM5000SX A (EA7) - Honda Generator, Made in Japan (SN: EA7-1000001 - EA7-1100000) REMOTE CONTROL@CABLE Parts Diagram

Generator, Made in Japan

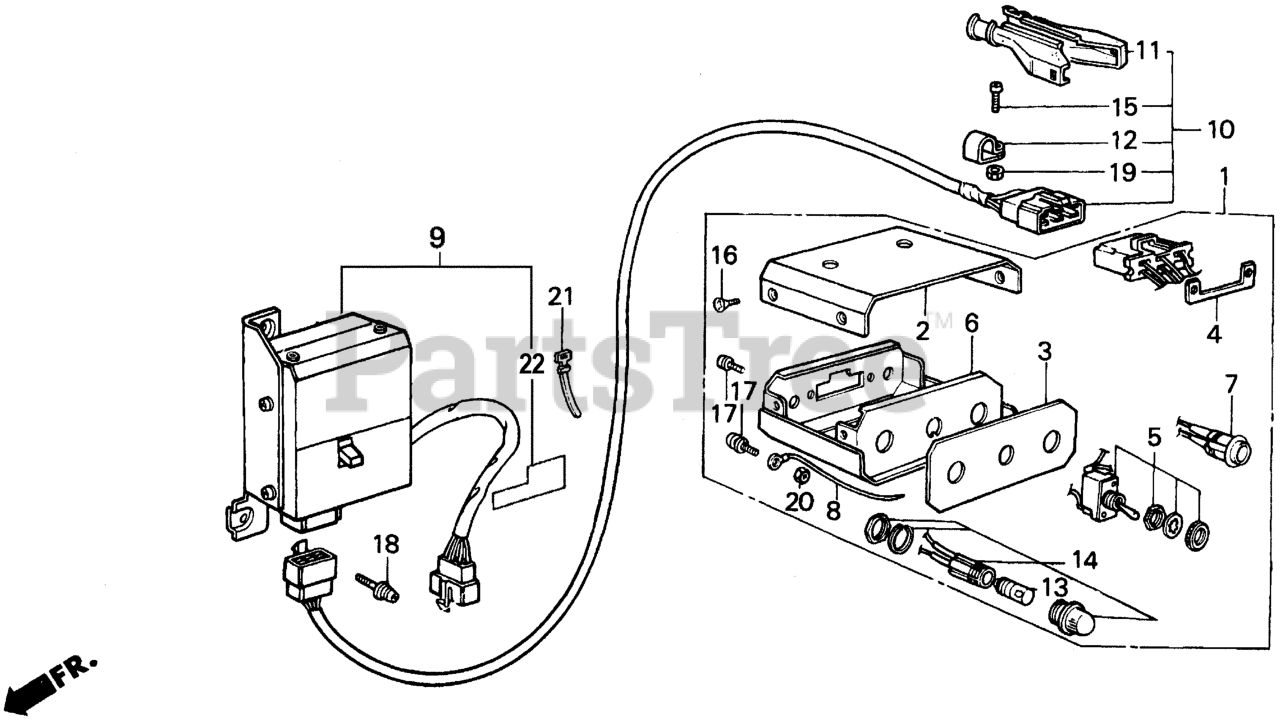

REMOTE CONTROL@CABLE Parts Diagram

  • Title

1

Honda 31610-ZB4-000

BOX ASSY., SWITCH (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

2

Honda 31611-880-810

COVER (UPPER) Use from Frame SN 1001725.

Note: (Optional)

$24.99

$

Usually ships in 3-6 days

0

3

Honda 31612-ZB4-010

PLATE, SWITCH & INDICATOR

Note: (Optional)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 31613-880-810

PLATE, CONNECTOR SETTING

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

5

Honda 31614-880-810

SWITCH, TOGGLE

Note: (Optional)

$60.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZB4-000ZD

CASE, SWITCH *R280* Use from Frame SN 1120560.

Note: (Optional)

$35.99

$

Usually ships in 3-6 days

0

7

Honda 31619-880-810

SWITCH, PUSH

Note: (Optional)

$55.99

$

Usually ships in 3-6 days

0

8

Honda 31621-893-720

WIRE, GROUND

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

9

Honda 31650-ZB4-000

BOX ASSY., RELAY

Note: (Optional)

$319.99

$

Usually ships in 3-6 days

0

10

Honda 31690-893-720

CABLE, REMOTE CONTROL (10MM)

Note: (Optional)

$91.99

$

Usually ships in 3-6 days

0

11

Honda 31691-893-720

COVER, CONNECTOR

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

12

Honda 31692-893-720

BAND

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

13

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W) Use from Frame SN 1001725.

Note: (Optional)

$3.49

$

In Stock, only 1 left!

0

14

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN) Use from Frame SN 1001725.

Note: (Optional)

$43.99

$

Usually ships in 3-6 days

0

15

Honda 93500-03012-3C

SCREW, PAN (3X12)

Note: (Optional)

$

$

Currently unavailable

16

Honda 93600-04008-0H

SCREW, FLAT (4X8) Use from Frame SN 1001725.

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93892-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

Note: (Optional)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 93893-06025-10

SCREW-WASHER (6X25) (Honda Code 1001254).

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94001-03330-0S

NUT, HEX. (3MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94001-04080-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0562116).

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 95014-62100

BAND B1, CABLE

Note: (Optional)

$1.99

$

In Stock, Qty 5

0

22

Honda 31654-899-000

MARK, REMOTE CONTROL
(Superseded to 31654-899-010)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0
