EM5000is A (EAJJ) - Honda Generator, Made in Japan (SN: EAJJ-1000001 - EAJJ-9999999) STARTER MOTOR (EM5000IS/5000IS1/7000IS) Parts Diagram

Generator, Made in Japan

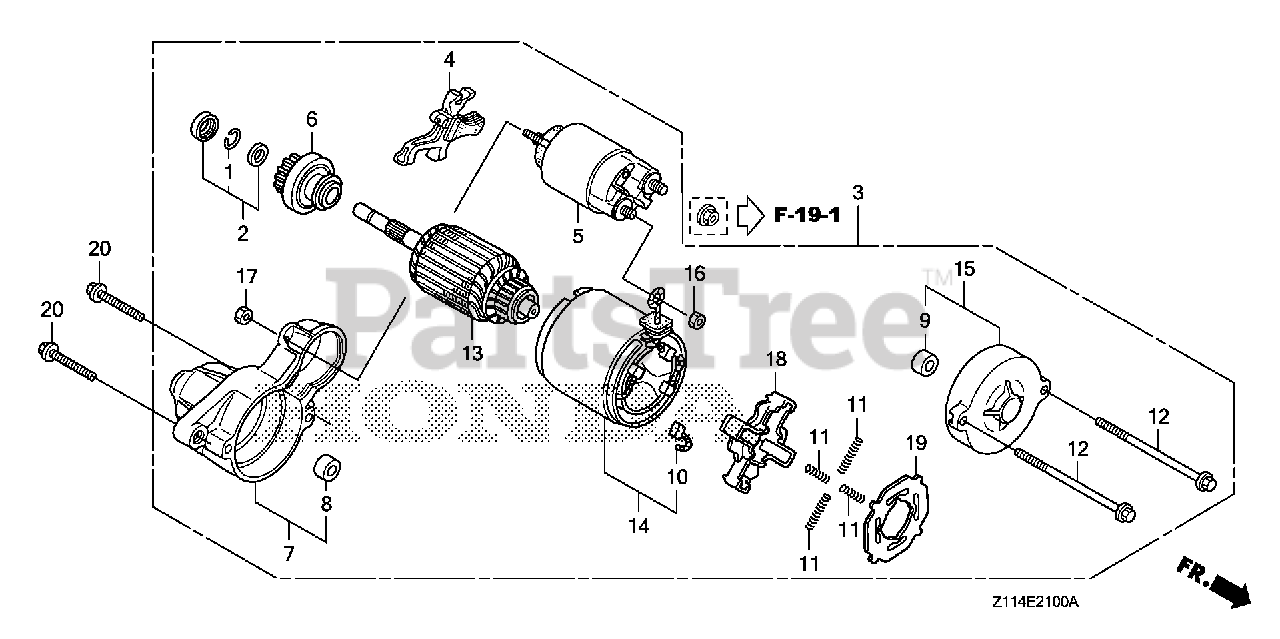

STARTER MOTOR (EM5000IS/5000IS1/7000IS) Parts Diagram

  • Title

1

Honda 30201-PH9-004

RING, SNAP (DENSO) (Honda Code 3508322).

$3.99

$

Usually ships in 3-6 days

0

2

Honda 30202-PZ1-003

SEE PART DETAILS - PRI; COLLAR SET, CLUTCH STOP

$23.99

$

Usually ships in 3-6 days

0

3

Honda 31200-ZF6-F42

STARTER MOTOR ASSY.

$768.99

$

Usually ships in 3-6 days

0

4

Honda 31203-PN4-003

LEVER, PINION DRIVE (Honda Code 3508397).

$40.99

$

Usually ships in 3-6 days

0

5

Honda 31204-ZJ1-H01

SEE PART DETAILS - SUP; SWITCH ASSY., MAGNET
(Superseded to 31204-ZJ1-H02)

Note: Use up to Engine SN 4075801.

$217.99

$

Usually ships in 3-6 days

0

5

Honda 31204-Z2E-003

SWITCH ASSY., MAGNET

Note: Use from Engine SN 4075802.

$197.99

$

Usually ships in 3-6 days

0

6

Honda 31207-ZF6-F41

CLUTCH, OVERRUNNING

$290.99

$

Usually ships in 3-6 days

0

7

Honda 31208-ZF6-F41

HOUSING, DRIVE SIDE

$149.99

$

Usually ships in 3-6 days

0

8

Honda 31209-PH9-004

BEARING A

$11.99

$

Usually ships in 3-6 days

0

9

Honda 31210-PH9-004

BEARING B (Honda Code 3508413).

$14.99

$

Usually ships in 3-6 days

0

10

Honda 31211-PH9-004

BRUSH (Honda Code 3620366).

$21.99

$

Usually ships in 3-6 days

0

11

Honda 31212-PH9-004

SPRING, BRUSH (Honda Code 3508439).

$7.99

$

Usually ships in 3-6 days

0

12

Honda 31214-PH9-004

BOLT, THROUGH (Honda Code 3508454).

$12.99

$

Usually ships in 3-6 days

0

13

Honda 31217-ZG8-003

ARMATURE (Honda Code 3506789).

$240.99

$

Usually ships in 3-6 days

0

14

Honda 31218-PH9-004

YOKE

$311.99

$

Usually ships in 3-6 days

0

15

Honda 31219-ZF6-F41

FRAME, COMMUTATOR END

$46.99

$

Usually ships in 3-6 days

0

16

Honda 31220-PH9-004

NUT, HEX. (8MM) (Honda Code 3508470).

$4.99

$

Usually ships in 3-6 days

0

17

Honda 31223-PA0-006

NUT, FLANGE (5MM) (Honda Code 0839688).

$4.99

$

Usually ships in 3-6 days

0

18

Honda 31231-PH9-004

HOLDER, BRUSH (Honda Code 3508496).

$67.99

$

Usually ships in 3-6 days

0

19

Honda 31233-PH9-004

INSULATOR, BRUSH HOLDER (Honda Code 3508504).

$41.99

$

Usually ships in 3-6 days

0

20

Honda 95701-10035-00

BOLT, FLANGE (10X35)

$1.99

$

Usually ships in 3-6 days

0
