EM5000is A (EAJJ) - Honda Generator, Made in Japan (SN: EAJJ-1000001 - EAJJ-9999999) MUFFLER Parts Diagram

Generator, Made in Japan

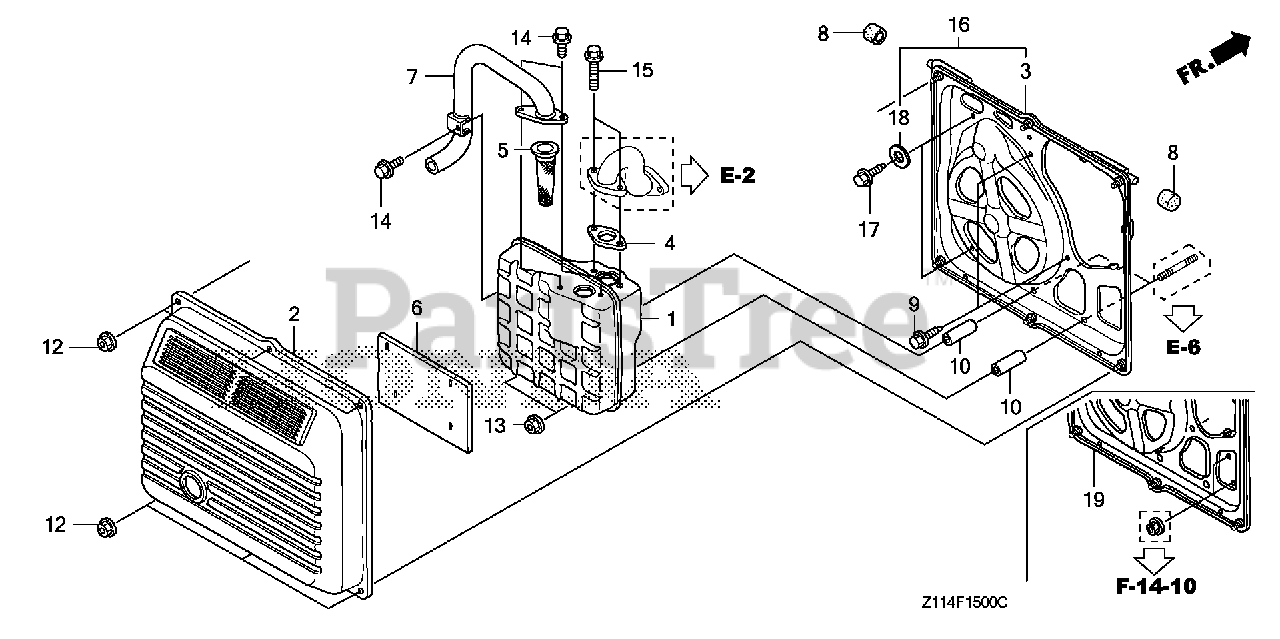

MUFFLER Parts Diagram

  • Title

1

Honda 18310-Z11-003

MUFFLER

$273.99

$

Usually ships in 3-6 days

0

2

Honda 18321-Z11-A00ZA

PROTECTOR, MUFFLER (OUTER) *NH105* (MAT BLACK)

$139.99

$

Usually ships in 3-6 days

0

3

Honda 06183-Z11-305

PROTECTOR KIT, MUFFLER (INNER)

Note: Use up to Frame SN 1005924.

$128.99

$

Usually ships in 3-6 days

0

3

Honda 18325-Z11-010

PROTECTOR, MUFFLER (INNER)

Note: Use from Frame SN 1005925.

$143.99

$

Usually ships in 3-6 days

0

4

Honda 18333-ZB4-800

SEE PART DETAILS - PRI; GASKET, EX. PIPE (Honda Code 3755220).

$

$

Not available

4

Honda 18333-ZB4-801

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.49

$

In Stock, Qty 6

0

5

Honda 18355-Z11-A30

ARRESTER, SPARK

$27.99

$

Usually ships in 3-6 days

0

6

Honda 18376-Z11-A00

INSULATOR, MUFFLER PROTECTOR (A)

$7.49

$

Usually ships in 3-6 days

0

7

Honda 18390-Z11-A00

PIPE, EX. TAIL

$65.99

$

Usually ships in 3-6 days

0

8

Honda 50388-Z11-000

RUBBER, STOPPER

$0.99

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

10

Honda 91554-Z11-000

COLLAR, MUFFLER

$4.49

$

Usually ships in 3-6 days

0

12

Honda 94050-06070

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

14

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

15

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0

16

Honda 06183-Z11-305

PROTECTOR KIT, MUFFLER (INNER)

Note: (Optional).Use up to Frame SN 1005924.

$128.99

$

Usually ships in 3-6 days

0

17

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use up to Frame SN 1005924.

$1.99

$

In Stock, Qty 20+

0

17

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: Use from Frame SN 1005925.

$2.49

$

In Stock, Qty 7

0

18

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

Note: (Optional).Use up to Frame SN 1005924.

$1.49

$

In Stock, Qty 20+

0
