EM5000is A (EAJJ) - Honda Generator, Made in Japan (SN: EAJJ-1000001 - EAJJ-9999999) ENGINE WIRE HARNESS (EM5000IS/5000IS1/7000IS) Parts Diagram

Generator, Made in Japan

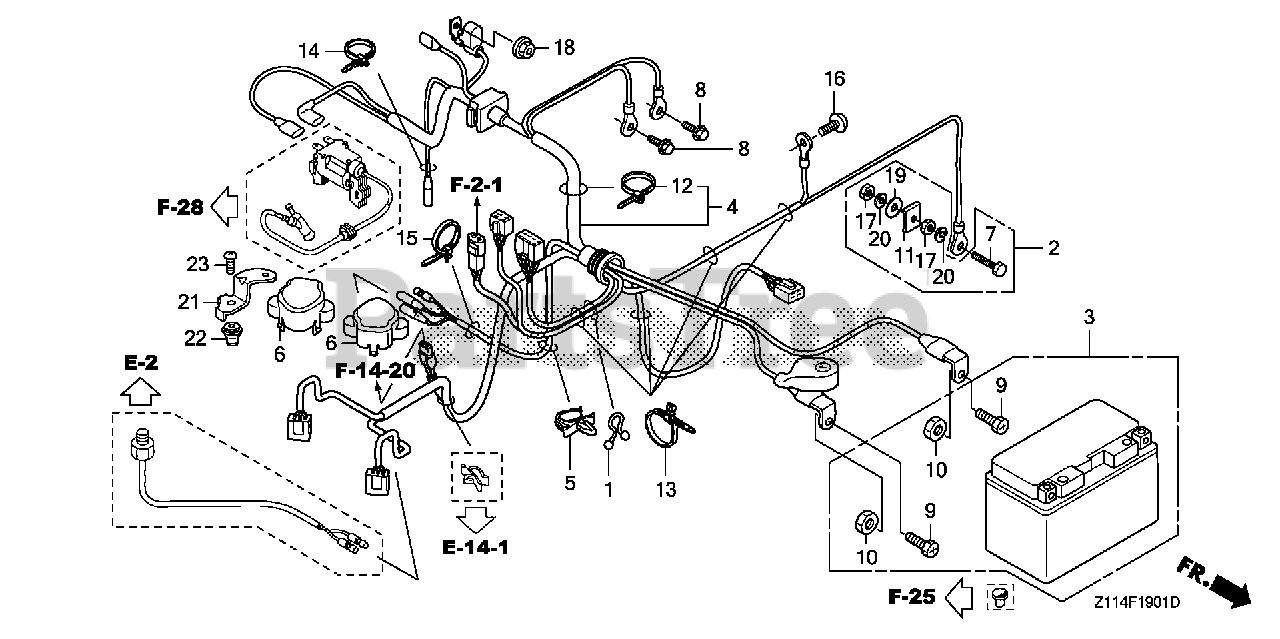

ENGINE WIRE HARNESS (EM5000IS/5000IS1/7000IS) Parts Diagram

  • Title

1

Honda 15712-PD1-811

CLIP, BREATHER TUBE PROTECTOR

Note: Use from Frame SN 1000912.

$12.99

$

Usually ships in 3-6 days

0

1

Honda 17916-PE1-671

CLIP, TUBE (26)

Note: Use up to Frame SN 1000911.

$

$

Not available

2

Honda 31428-899-840

TERMINAL SET, GROUND

$24.99

$

Usually ships in 3-6 days

0

3

Honda 31500-MCR-D02

BATTERY (YTZ14S) (YUASA) (MSDS)
(Superseded to 31500-MCR-D03)

Note: (Optional).

$289.99

$

Usually ships in 3-6 days

0

4

Honda 32110-Z11-A30

WIRE HARNESS ASSY., ENGINE

$240.99

$

Usually ships in 3-6 days

0

5

Honda 32172-GJ1-003

CLIP B, HARNESS

$5.49

$

Usually ships in 3-6 days

0

6

Honda 36168-Z11-003

COVER, THROTTLE MOTOR

$9.99

$

Usually ships in 3-6 days

0

7

Honda 90011-899-840

BOLT, HEX. (6X28)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

9

Honda 90122-KCW-007

BOLT, BATTERY TERMINAL

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90306-KCW-007

NUT, BATTERY TERMINAL

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

In Stock, only 1 left!

0

12

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK)

$9.99

$

In Stock, only 1 left!

0

13

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$7.49

$

Usually ships in 3-6 days

0

14

Honda 90674-Z11-003

BAND, CABLE

$2.99

$

Usually ships in 3-6 days

0

15

Honda 91507-P01-003

CLIP B, HARNESS BAND (129.4MM) (DARK BROWN)

$9.49

$

Usually ships in 3-6 days

0

16

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 94070-08080

NUT-WASHER (8MM)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

20

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

$1.49

$

Usually ships in 3-6 days

0
