EM5000is A (EAJJ) - Honda Generator, Made in Japan (SN: EAJJ-1000001 - EAJJ-9999999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

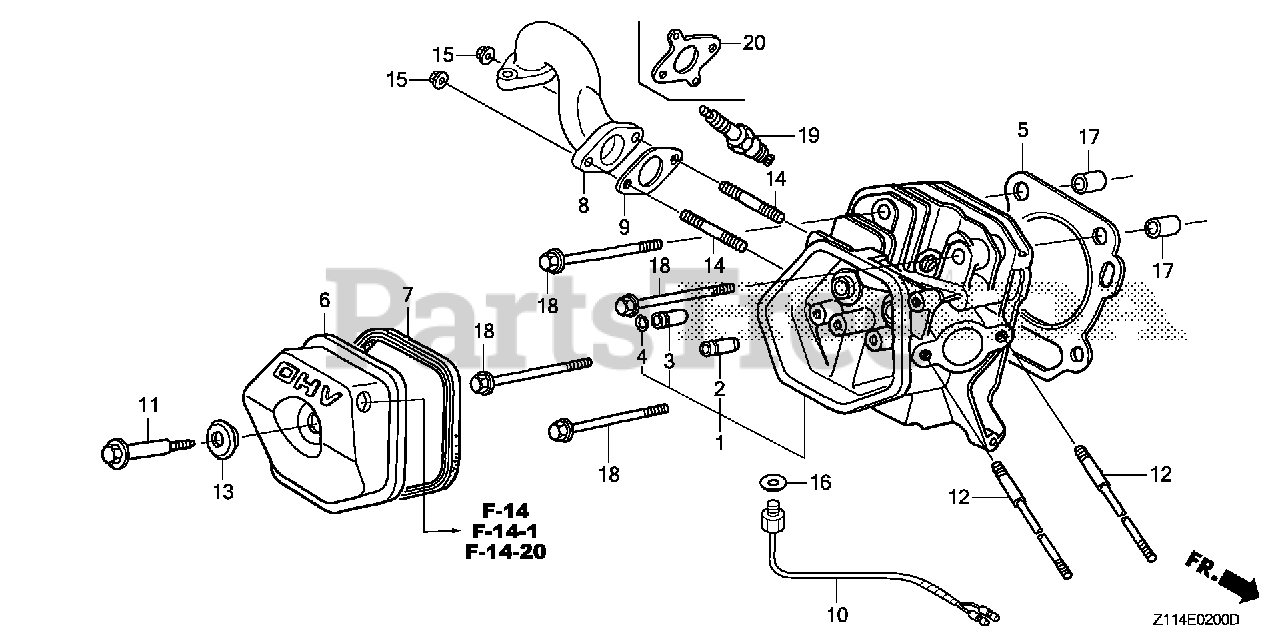

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZF6-406

SEE PART DETAILS - PRI; CYLINDER HEAD

$393.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4179164).

$14.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE2-305

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 2089563).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.99

$

In Stock, Qty 5

0

5

Honda 12251-ZE3-W00

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 3738218).
(Superseded to 12251-ZE3-W01)

$21.99

$

In Stock, only 2 left!

0

6

Honda 12310-ZE2-020

COVER, HEAD

$63.99

$

In Stock, only 2 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4300893).

$12.99

$

In Stock, Qty 20+

0

8

Honda 18331-ZF6-F40

PIPE, EX.

$73.99

$

Usually ships in 3-6 days

0

9

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)

Note: Use up to Engine SN 4044212.

$5.49

$

In Stock, Qty 20+

0

9

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

Note: Use up to Engine SN 4044212.

$5.49

$

In Stock, Qty 20+

0

10

Honda 35673-ZF6-F42

SEE PART DETAILS - PRI; SENSOR ASSY., TEMPERATURE

$58.99

$

Usually ships in 3-6 days

0

11

Honda 90014-ZE2-000

BOLT, HEAD COVER (Honda Code 2027035).

$7.49

$

In Stock, Qty 11

0

12

Honda 90042-ZE8-700

BOLT, STUD (8X138.5)

$9.99

$

Usually ships in 3-6 days

0

13

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$6.99

$

In Stock, Qty 19

0

14

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X32) (Honda Code 2663433).

$3.49

$

In Stock, Qty 13

0

15

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

16

Honda 94102-08800

WASHER, PLAIN (8MM) (Honda Code 0562215).

$1.49

$

In Stock, Qty 9

0

17

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

In Stock, only 2 left!

0

18

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.49

$

In Stock, Qty 13

0

19

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

19

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0

20

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

Note: Use from Engine SN 4044213.

$3.49

$

In Stock, Qty 20+

0

20

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use from Engine SN 4044213.

$3.49

$

In Stock, Qty 20+

0
