EM5000is A (EAJJ) - Honda Generator, Made in Japan (SN: EAJJ-1000001 - EAJJ-9999999) CONTROL PANEL (EM5000IS/5000IS1/7000IS) Parts Diagram

Generator, Made in Japan

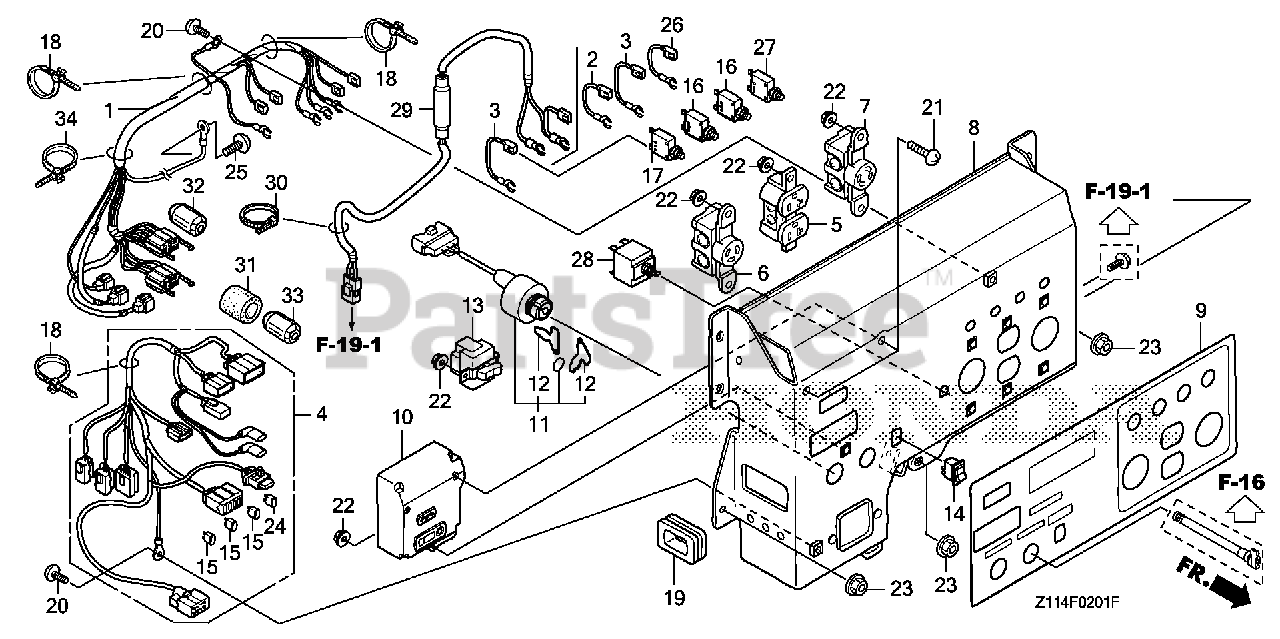

CONTROL PANEL (EM5000IS/5000IS1/7000IS) Parts Diagram

  • Title

1

Honda 32100-Z11-A30

WIRE HARNESS ASSY., MAIN

$

$

Not available

2

Honda 32101-Z11-A30

SUB-WIRE ASSY. (A)

$6.49

$

Usually ships in 3-6 days

0

3

Honda 32108-Z11-A30

SUB-WIRE ASSY. (D)

$6.49

$

Usually ships in 3-6 days

0

4

Honda 32150-Z11-A30

WIRE HARNESS ASSY., CONTROL

Note: Use up to Frame SN 1000703.

$

$

Not available

4

Honda 32150-Z11-A32

WIRE HARNESS ASSY., CONTROL

Note: Use from Frame SN 1000704.

$156.99

$

Usually ships in 3-6 days

0

5

Honda 32330-899-631

RECEPTACLE (20A/125V) (MATSUSHITA)

$76.99

$

Usually ships in 3-6 days

0

6

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$50.99

$

In Stock, only 1 left!

0

7

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$38.99

$

Usually ships in 3-6 days

0

8

Honda 32345-Z11-A30

PANEL, CONTROL

Note: Use up to Frame SN 1006437.

$104.99

$

Usually ships in 3-6 days

0

8

Honda 32345-Z11-A31

PANEL, CONTROL

Note: Use from Frame SN 1006438.

$133.99

$

Usually ships in 3-6 days

0

9

Honda 32366-Z12-A30

MARK, PANEL (EM-A)

$95.99

$

Usually ships in 3-6 days

0

10

Honda 34110-Z11-A04

SEE PART DETAILS - PRI; CONTROL UNIT ASSY., GENERATOR

$858.99

$

Usually ships in 3-6 days

0

11

Honda 35100-Z11-013

SWITCH ASSY., COMBINATION

$107.99

$

Usually ships in 3-6 days

0

12

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$12.99

$

In Stock, Qty 5

0

13

Honda 35320-Z11-A01

SWITCH ASSY., VOLT CHANGE

$131.99

$

Usually ships in 3-6 days

0

14

Honda 36214-ZS9-A01

SEE PART DETAILS - PRI; SWITCH, AUTO-THROTTLE

Note: Use up to Frame SN 1008221.

$26.99

$

In Stock, only 2 left!

0

14

Honda 36214-ZS9-A01

SEE PART DETAILS - PRI; SWITCH, AUTO-THROTTLE

Note: Use from Frame SN 1008222.

$26.99

$

In Stock, only 2 left!

0

15

Honda 38206-735-921

FUSE, BLADE (1A)

$2.99

$

In Stock, Qty 6

0

16

Honda 38240-Z11-A32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A) (WHITE)(TYCO)

$42.99

$

In Stock, Qty 5

0

17

Honda 38241-Z11-A32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A) (WHITE)

$42.99

$

Usually ships in 3-6 days

0

18

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$7.99

$

Usually ships in 3-6 days

0

19

Honda 91654-Z11-000

GROMMET, CONTROL HARNESS

$6.49

$

Usually ships in 3-6 days

0

20

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-05012-0G

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 4 left!

0

23

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

24

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0

26

Honda 32101-Z11-A30

SUB-WIRE ASSY. (A)

$6.49

$

Usually ships in 3-6 days

0

27

Honda 38241-Z11-A32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A) (WHITE)

$42.99

$

Usually ships in 3-6 days

0

34

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$7.99

$

Usually ships in 3-6 days

0
