EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) SEPARATOR SHEET + COVER SHEET Parts Diagram

Generator, Made in Japan

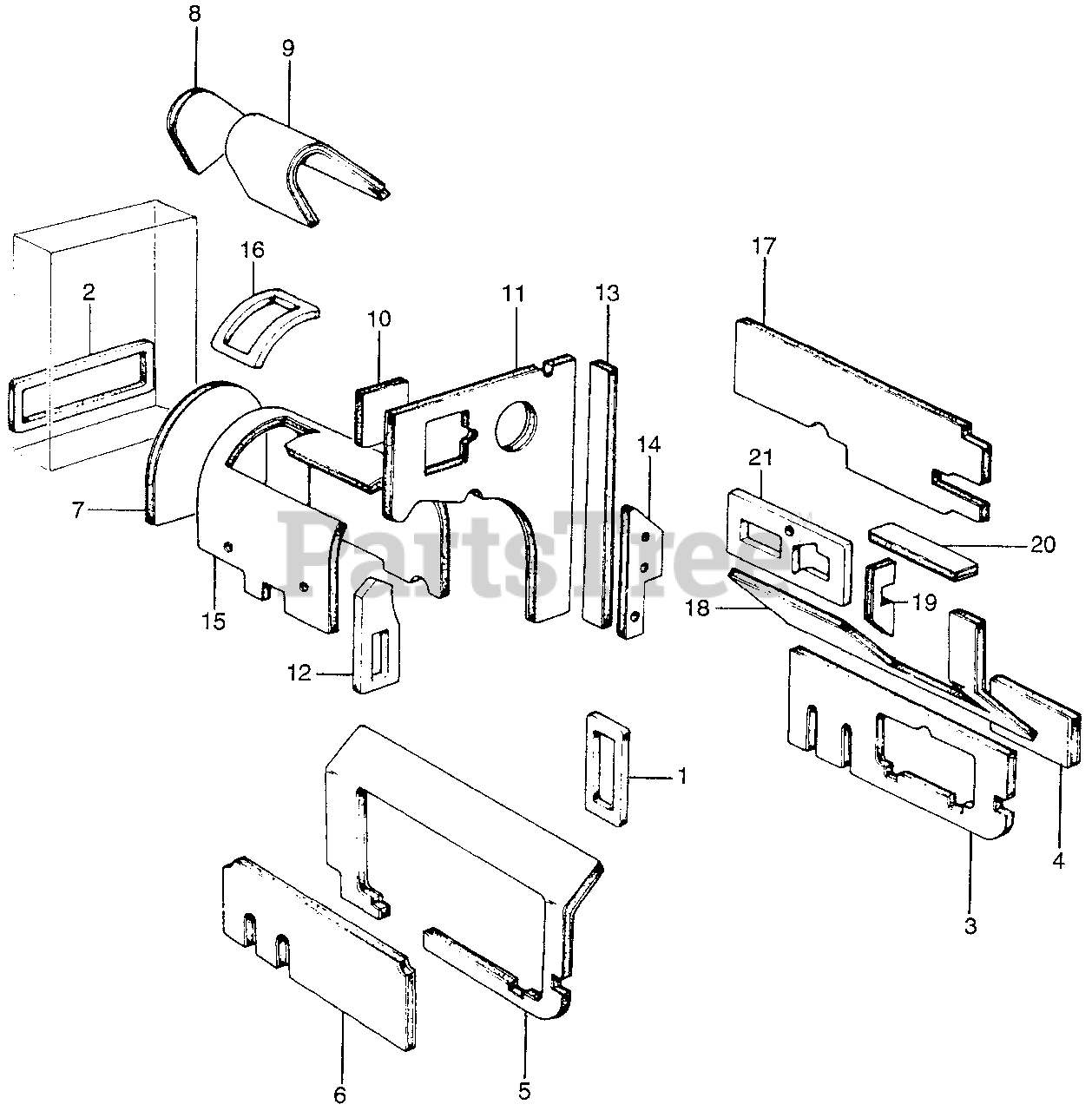

SEPARATOR SHEET + COVER SHEET Parts Diagram

  • Title
1

Honda 19611-862-000

SEAT, FAN COVER

$

$

Not available

2

Honda 39321-862-000

SEAL, SHEET BOX

$

$

Not available

3

Honda 63162-862-000

SHEET, R. SIDE COVER

$

$

Not available

4

Honda 63164-862-000

SHEET, R. SIDE SUB-COVER

$

$

Not available

5

Honda 63182-862-000

SHEET, L. SIDE COVER

$

$

Not available

6

Honda 63186-862-000

SHEET, L. SUB-COVER

$

$

Not available

7

Honda 63254-862-000

SHEET, ALTERNATOR END COVER

$

$

Not available

8

Honda 63262-862-000

SHEET A, COVER

$

$

Not available

9

Honda 63263-862-010

SEE PART DETAILS - PRI; SHEET B, COVER

$

$

Not available

10

Honda 63277-862-000

SHEET, POINT COVER

$

$

Not available

11

Honda 63314-862-000

SHEET A, SEPARATOR

$

$

Not available

12

Honda 63315-862-000

SHEET B, SEPARATOR

$

$

Not available

13

Honda 63317-862-000

SHEET D, SEPARATE

$

$

Not available

14

Honda 63318-862-000

SHEET, SEPARATOR

$

$

Not available

15

Honda 63321-862-000

SHEET A, ALTERNATOR COVER

$

$

Not available

16

Honda 63322-862-000

SHEET B, ALTERNATOR COVER

$

$

Not available

17

Honda 63331-862-000

SHEET A, CARBURETOR SEPARATOR

$

$

Not available

18

Honda 63332-862-010

SHEET B, CARBURETOR SEPARATOR

$

$

Not available

19

Honda 63334-862-000

SHEET D, CARBURETOR SEPARATOR

$

$

Not available

20

Honda 63336-862-000

SHEET F, CARBURETOR SEPARATOR

$

$

Not available

21

Honda 63337-862-000

SHEET G, CARBURETOR SEPARATOR

$

$

Not available
