EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) RADIATOR + RESERVE TANK + FAN MOTOR Parts Diagram

Generator, Made in Japan

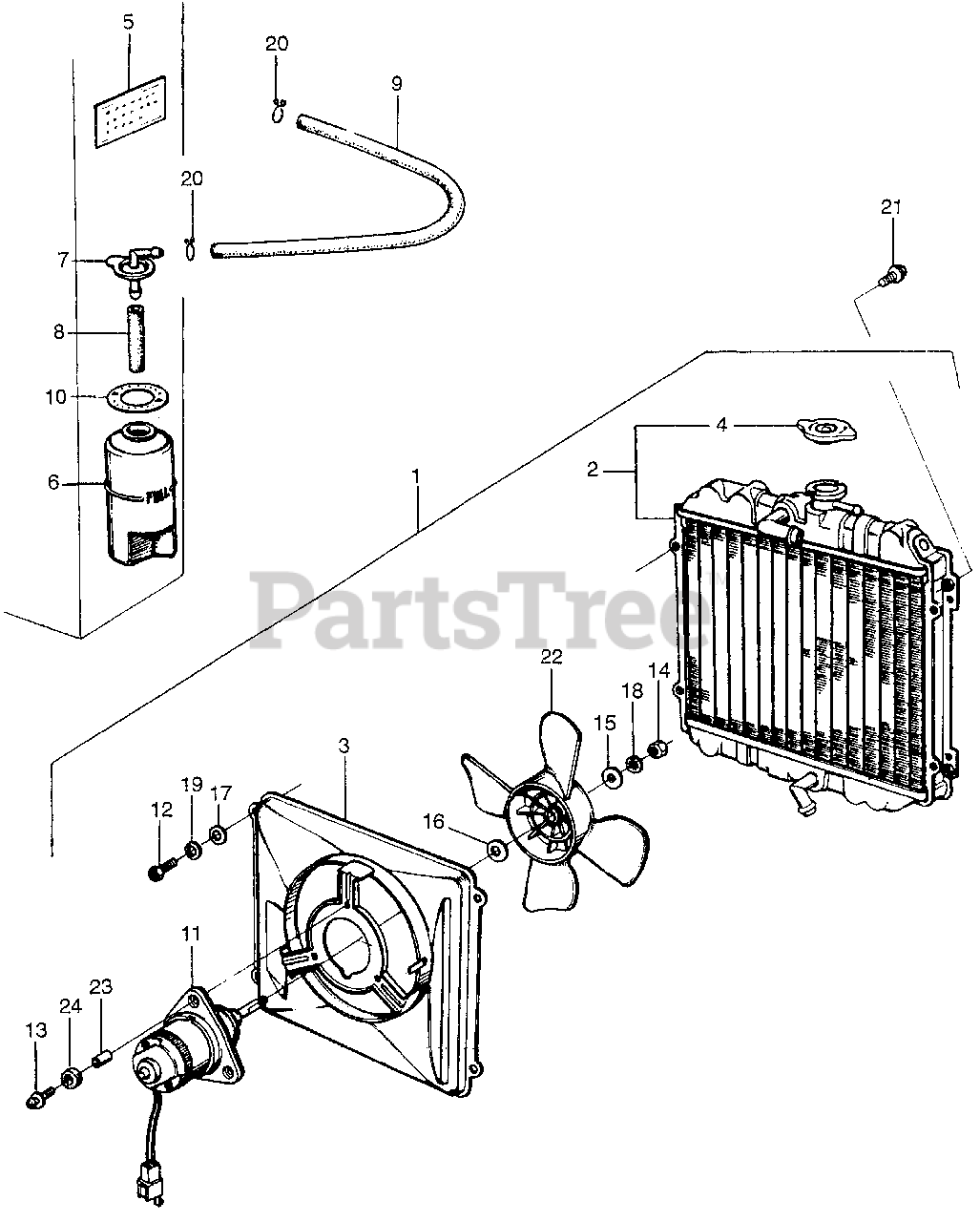

RADIATOR + RESERVE TANK + FAN MOTOR Parts Diagram

  • Title
1

Honda 19000-862-023

RADIATOR ASSY.

$

$

Not available

2

$

$

Not available

3

Honda 19015-862-003

SHROUD, RADIATOR

$

$

Currently unavailable

4

Honda 19045-611-013

CAP (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 19047-634-670

LABEL, RADIATOR CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 19101-657-000

SEE PART DETAILS - PRI; TANK, RESERVOIR

$

$

Currently unavailable

7

Honda 19102-611-000

CAP, RESERVOIR TANK

$

$

Currently unavailable

8

Honda 19104-611-000

HOSE B, RESERVE

$

$

Not available

9

Honda 19104-862-000

TUBE, RESERVE

$

$

Not available

10

Honda 19105-634-010

MARK, RESERVE TANK (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 19030-679-003

SEE PART DETAILS - PRI; MOTOR, COOLING FAN (DENSO)

$

$

Currently unavailable

11

Honda 38616-634-811

SEE PART DETAILS - SUP; MOTOR, FAN

$

$

Currently unavailable

12

Honda 92101-06020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 93500-04018-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X18)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94001-05080-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, only 4 left!

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, only 4 left!

0

18

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 9

0

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 13

0

22

Honda N022770-0050

SEE PART DETAILS - PRI; FAN, COOLING

$

$

Currently unavailable

23

Honda N949194-0040

SEE PART DETAILS - PRI; COLLAR (DENSO)

$

$

Not available

24

Honda N949197-0180

SEE PART DETAILS - SUP; RUBBER, BUSHING (DENSO)

$

$

Currently unavailable

24

Honda 19041-611-003

SEE PART DETAILS - PRI; RUBBER, BUSHING (DENSO)

$51.99

$

Usually ships in 3-6 days

0
