EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) PUMP + OIL SCREEN Parts Diagram

Generator, Made in Japan

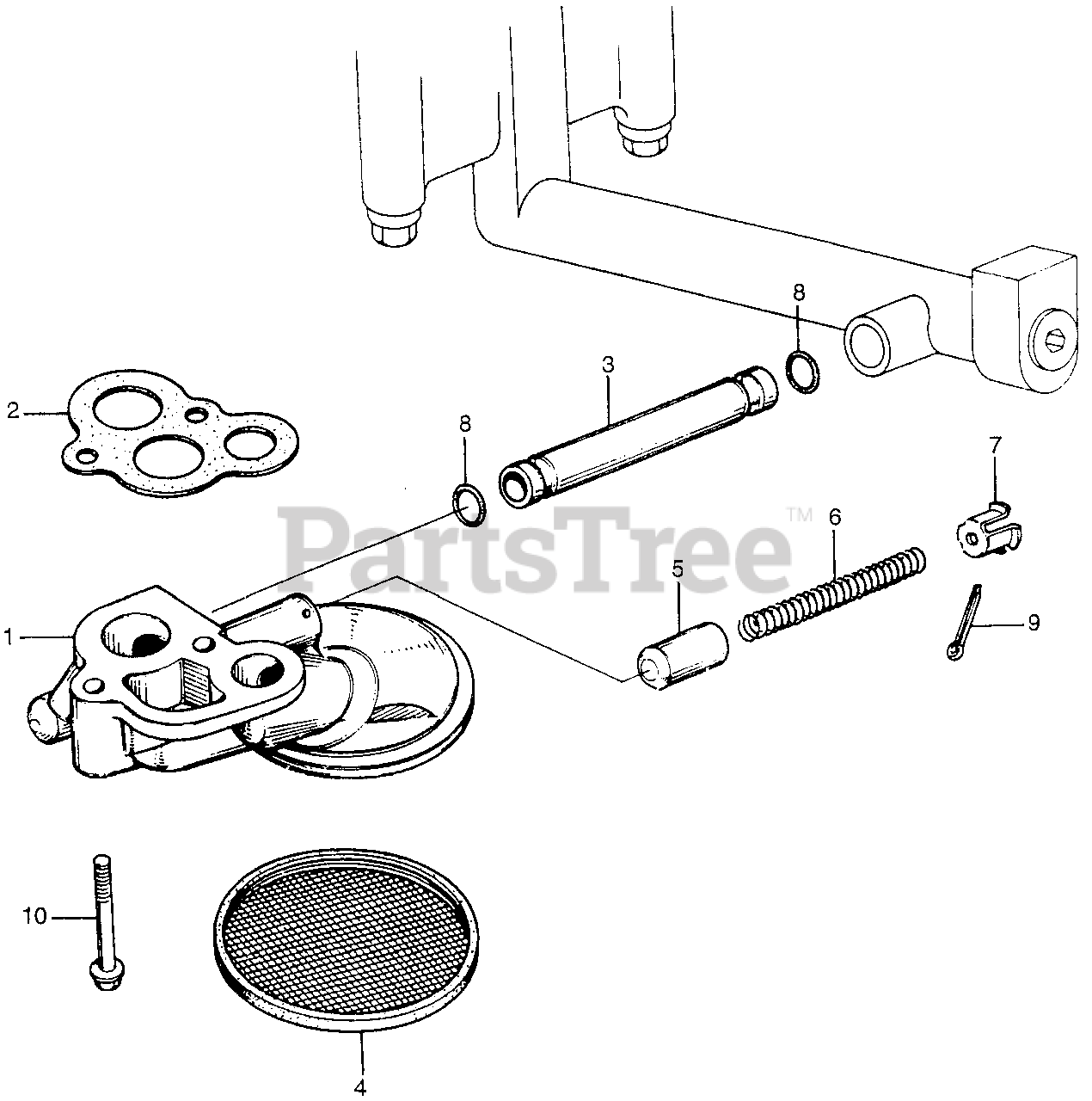

PUMP + OIL SCREEN Parts Diagram

  • Title
1

Honda 15125-611-010

BLOCK, OIL PASSAGE

$

$

Not available

2

Honda 15126-611-010

SEE PART DETAILS - PRI; GASKET, OIL PASSAGE

$

$

Currently unavailable

3

Honda 15128-611-000

PIPE, OIL PASSAGE

$

$

Currently unavailable

4

Honda 15129-611-000

SCREEN, OIL PUMP FILTER

$

$

Currently unavailable

5

Honda 15231-611-010

VALVE, RELIEF

$

$

Not available

6

Honda 15232-611-000

SPRING, RELIEF VALVE

$

$

Not available

7

Honda 15233-611-000

SEAT, RELIEF VALVE

$

$

Not available

8

Honda 91303-634-010

SEE PART DETAILS - PRI; O-RING (12.5X2.2)

$8.99

$

Usually ships in 3-6 days

0

9

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

10

Honda 95701-06032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32)

$2.49

$

In Stock, only 4 left!

0
