EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) GOVERNOR Parts Diagram

Generator, Made in Japan

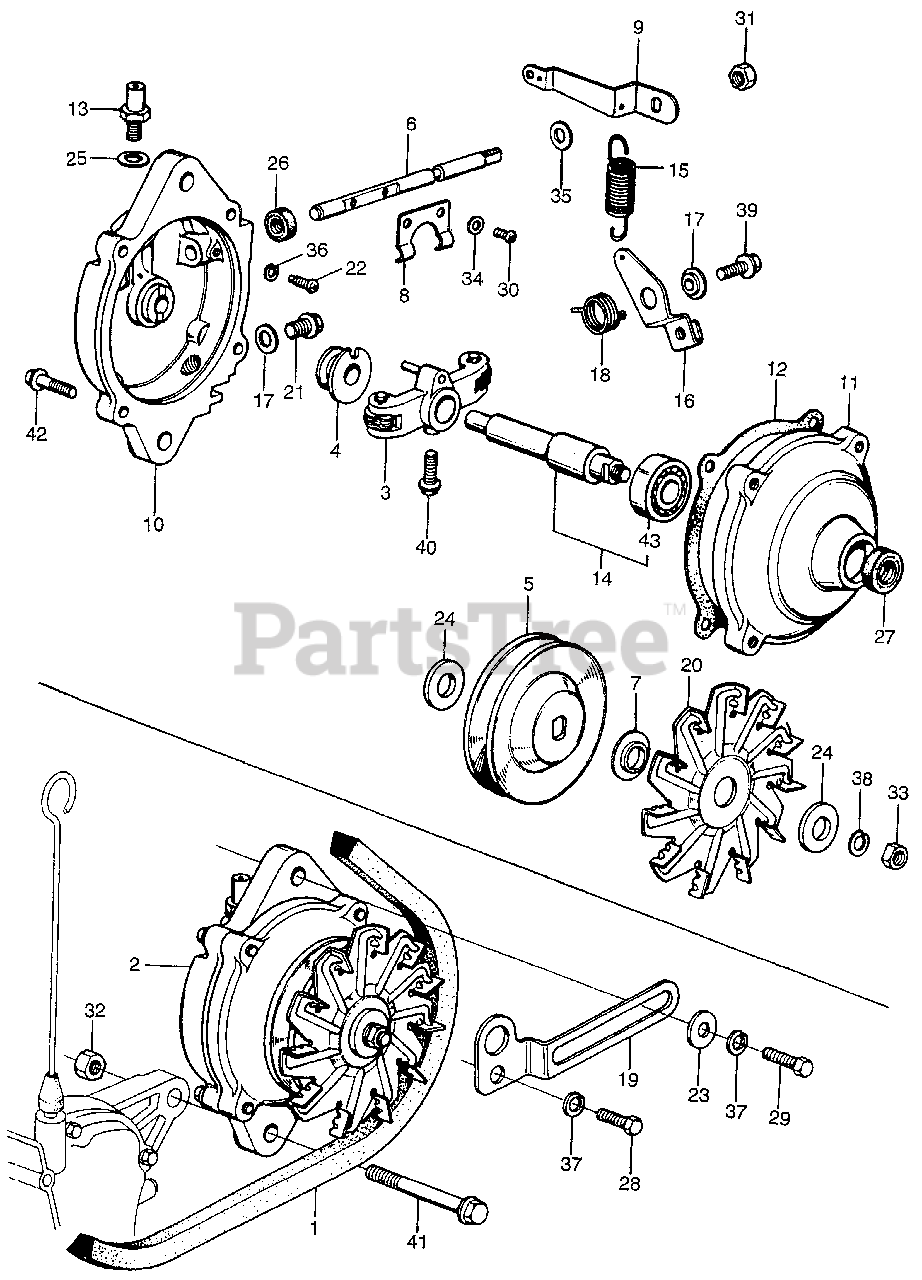

GOVERNOR Parts Diagram

  • Title

1

Honda 01140-862-670P

BELT KIT (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16500-862-614

SEE PART DETAILS - PRI; GOVERNOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16510-862-000

WEIGHT, GOVERNOR

$

$

Not available

4

Honda 16531-862-000

SLIDER, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16540-862-305

SEE PART DETAILS - PRI; PULLEY KIT, GOVERNOR

$

$

Not available

6

Honda 16541-862-000

SHAFT, GOVERNOR ARM

$

$

Not available

7

Honda 16544-862-305

SEE PART DETAILS - PRI; COLLAR, GOVERNOR FAN

$

$

Not available

8

Honda 16551-862-000

ARM, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16556-862-000

LEVER, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16560-862-020

COVER, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 16562-862-000

CASE, GOVERNOR

$

$

Not available

12

Honda 16564-862-000

GASKET, GOVERNOR CASE

$

$

Not available

13

Honda 16565-862-010

BODY, GOVERNOR BREATHER

$

$

Not available

14

Honda 16570-862-010

SHAFT, GOVERNOR

$

$

Not available

15

Honda 16585-862-611

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 16586-862-000

LEVER, THROTTLE

$

$

Not available

17

Honda 16587-862-000

COLLAR, THROTTLE ARM (NOT AVAILABLE)

$

$

Not available

18

Honda 16588-862-000

SPRING, RETURN (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 31112-611-010

STAY, GENERATOR

$

$

Not available

20

Honda 31115-PA1-004

SEE PART DETAILS - PRI; FAN, ALTERNATOR

$

$

Currently unavailable

21

Honda 90001-862-000

BOLT, PLUG (10MM)

$

$

Not available

22

Honda 90091-862-010

SCREW, PAN SPECIAL (4X8)

$

$

Not available

23

Honda 90401-706-000

WASHER (8MM) (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 90403-862-305

SEE PART DETAILS - PRI; WASHER (38X11X4)

$

$

Not available

25

Honda 90472-703-305

WASHER (10MM)

$

$

Currently unavailable

26

Honda 91201-580-003

OIL SEAL (8X18X5) (NOT AVAILABLE)

$5.49

$

Usually ships in 3-6 days

0

27

Honda 91201-862-003

SEE PART DETAILS - PRI; OIL SEAL (17X30X8)

$17.99

$

Usually ships in 3-6 days

0

28

Honda 92101-08020-0H

SEE PART DETAILS - PRI; BOLT, HEX. (8X20)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 92000-08025-0H

SEE PART DETAILS - SUP; BOLT, HEX. (8X25)

$

$

Currently unavailable

29

Honda 92101-08025-0H

SEE PART DETAILS - PRI; BOLT, HEX. (8X28)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

31

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

31

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

32

Honda 94030-10080

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 94030-10280

NUT, HEX. (10MM)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 94101-04000

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM)

$1.49

$

In Stock, only 1 left!

0

35

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

36

Honda 94111-04000

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 94111-08800

SEE PART DETAILS - PRI; WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 94111-10800

SEE PART DETAILS - PRI; WASHER, SPRING (10MM)

$1.99

$

In Stock, only 1 left!

0

39

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

40

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

41

Honda 95701-10065-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X65)

$3.99

$

Usually ships in 3-6 days

0

42

Honda 95701-06028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

43

Honda 96100-60030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6003)

$12.99

$

Usually ships in 3-6 days

0
