EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) CYLINDER BLOCK + OIL FILTER Parts Diagram

Generator, Made in Japan

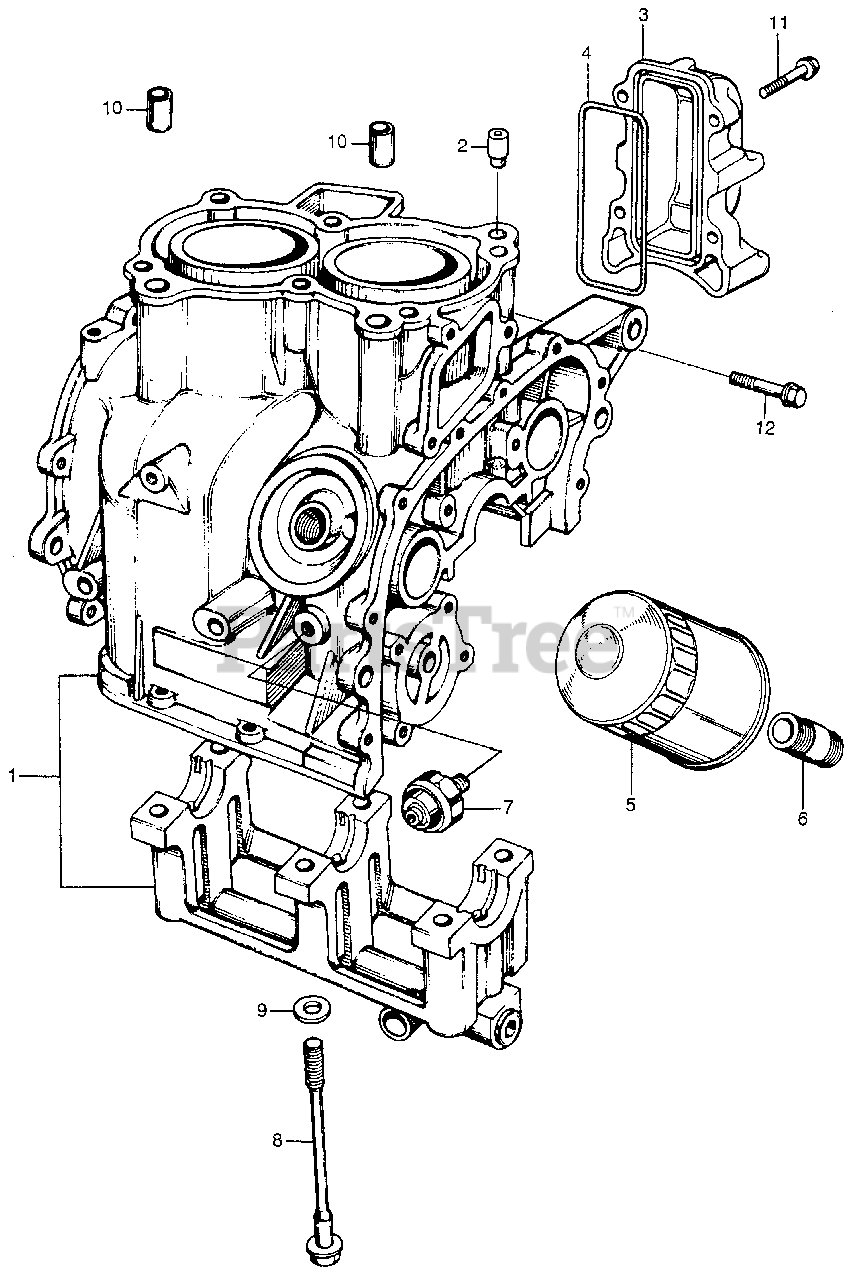

CYLINDER BLOCK + OIL FILTER Parts Diagram

  • Title
1

Honda 11010-611-010

BLOCK SET, CYLINDER

$

$

Currently unavailable

2

Honda 11107-611-000

NOZZLE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 11620-862-010

COVER, BALANCER

$

$

Not available

4

Honda 11651-611-000

GASKET, BALANCER

$

$

Currently unavailable

5

Honda 15410-MJ0-405

SEE PART DETAILS - PRI; FILTER, OIL

$19.99

$

Usually ships in 3-6 days

0

6

Honda 15411-611-010

PIPE, OIL PASSAGE

$

$

Not available

7

Honda 35430-862-004

SWITCH, PRESSURE

$

$

Currently unavailable

8

Honda 90002-611-000

BOLT, BEARING CAP

$

$

Not available

9

Honda 90438-611-010

SEE PART DETAILS - SUP; WASHER, SPECIAL (23x11x2.3)

$

$

Not available

10

Honda 94301-14200

SEE PART DETAILS - PRI; PIN A, DOWEL (14X20)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 95700-06025-08

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0
