EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) CONTROL BOX + THROTTLE CABLE Parts Diagram

Generator, Made in Japan

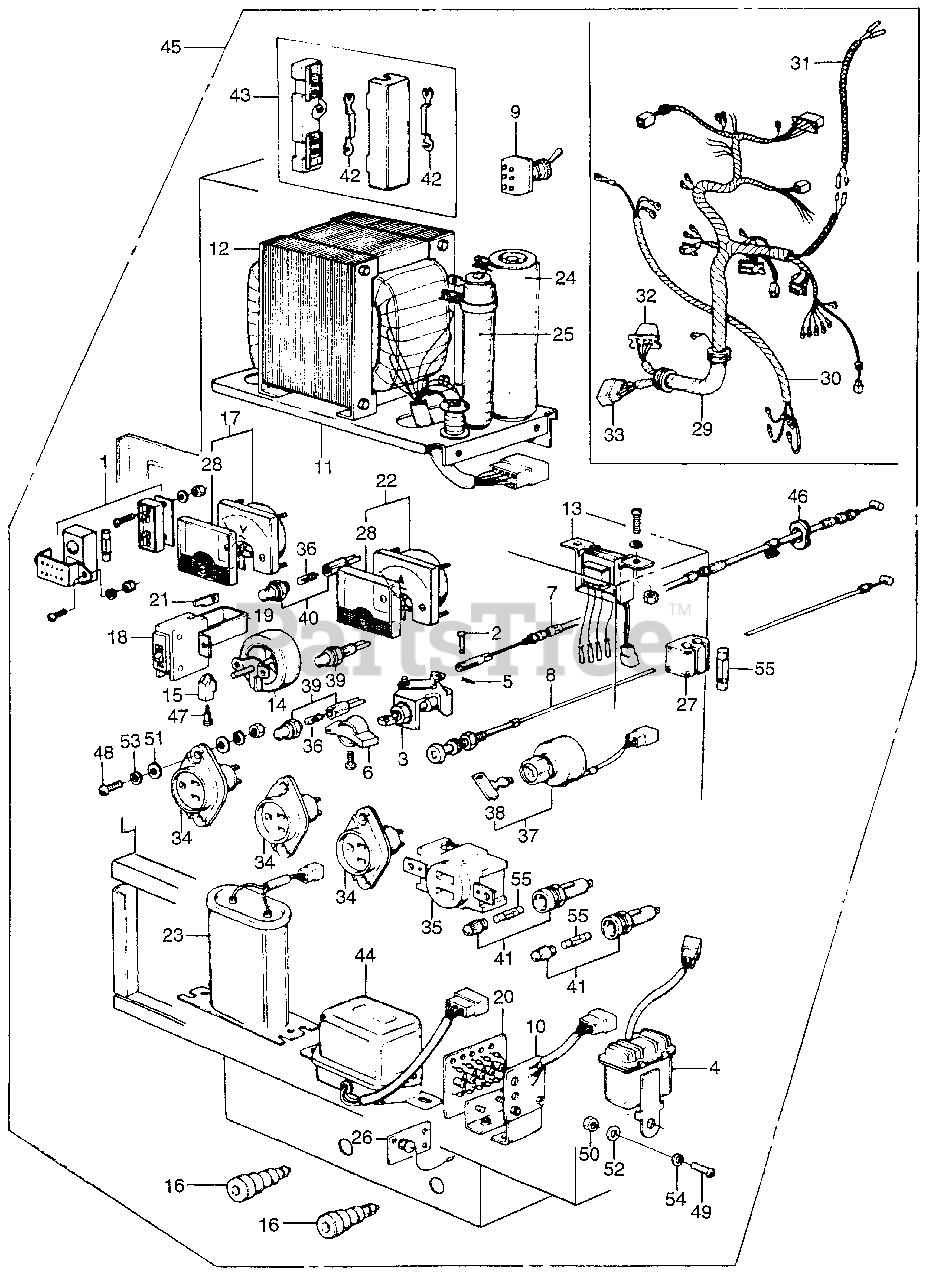

CONTROL BOX + THROTTLE CABLE Parts Diagram

  • Title

1

Honda 01140-862-670P

BELT KIT (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 14965-706-000

PIN, DECOMPRESSION LEVER

$

$

Not available

3

Honda 16500-862-158

CONTROL ASSY., ENGINE

$

$

Not available

4

Honda 16760-611-004

RELAY ASSY., FUEL CUT (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 17669-800-000

PIN, SNAP (3MM)

$

$

Currently unavailable

6

Honda 17821-862-158

KNOB, ENGINE CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 17910-862-014

CABLE, THROTTLE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 17950-862-000

CABLE, CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 30100-862-158

SWITCH ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31414-862-158

DIODE STACK

$

$

Not available

11

Honda 31400-862-670

HOLDER, CURRENT TRANSFORMER

Note: Use from Frame SN 1002123.

$

$

Not available

12

Honda 31403-862-671

TRANSFORMER, CURRENT

$

$

Not available

13

Honda 31404-862-671

TRANSFORMER, OVERRUN

$

$

Not available

14

Honda 31406-839-168

RESISTOR, VARIABLE (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 31407-815-158

SEE PART DETAILS - PRI; KNOB, ADJUSTING

$

$

Not available

16

Honda 31407-819-158

TERMINAL, A.C.

$

$

Not available

17

Honda 31411-862-405

SEE PART DETAILS - PRI; VOLTMETER (150V, 300V SCALE) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 31411-862-671

SEE PART DETAILS - SUP; VOLTMETER (150V, 300V SCALE)

$

$

Currently unavailable

18

Honda 31412-862-671

BREAKER, CIRCUIT (43A) (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 31413-862-158

HOLDER, BREAKER (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 31415-862-158

DIODE STACK ASSY.

$

$

Not available

21

Honda 31416-862-158

TERMINAL, BREAKER

$

$

Not available

22

Honda 31425-862-158

METER, AMPERE (6A SCALE) (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 31470-862-158

CONDENSER ASSY.

$

$

Currently unavailable

24

Honda 31475-862-168

RESISTOR SET (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 31476-862-158

RESISTOR, ADJUSTABLE

$

$

Not available

26

Honda 31482-862-158

DIODE ASSY., D.C. CHARGING

$

$

Not available

27

Honda 31485-862-158

GROMMET

$

$

Not available

28

Honda 31499-838-158

LENS, METER (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 32120-862-671

WIRE HARNESS, D.C. ALTERNATOR

$

$

Not available

30

Honda 32122-862-671

WIRE HARNESS, ALTERNATOR

Note: Use from Frame SN 1000016 to 1001389.

$

$

Not available

30

Honda 32122-862-672

WIRE HARNESS, ALTERNATOR

Note: Use from Frame SN 1001390.

$

$

Not available

31

Honda 32123-862-701

WIRE HARNESS A

$

$

Not available

32

Honda 32135-862-168

CONNECTOR, POLE MALE (6)

$

$

Not available

33

Honda 32136-862-158

CONNECTOR, POLE MALE (8) (NOT AVAILABLE)

$

$

Currently unavailable

34

Honda 32330-839-601

RECEPTACLE (10A 250V)

$51.99

$

Usually ships in 3-6 days

0

35

Honda 32335-838-671

SEE PART DETAILS - PRI; RECEPTACLE (30A)

$

$

Not available

36

Honda 34909-895-003

SEE PART DETAILS - PRI; BULB (12V2W)

$11.99

$

Usually ships in 3-6 days

0

37

Honda 35100-862-003

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

$

$

Currently unavailable

38

Honda 35111-862-003

KEY

$9.99

$

Usually ships in 3-6 days

0

39

Honda 37561-868-158

SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)

$

$

Currently unavailable

40

Honda 37562-862-158

SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)

$

$

Currently unavailable

41

Honda 38211-868-158

HOLDER ASSY., FUSE

$

$

Currently unavailable

42

Honda 38255-862-670

FUSE (20A) (NOT AVAILABLE)

$

$

Currently unavailable

43

Honda 38260-862-008

BOX ASSY., MAIN FUSE (NOT AVAILABLE)

$

$

Not available

44

Honda 38490-862-004

RELAY ASSY., OVERRUN

$

$

Not available

45

Honda 39300-862-675CT

SEE PART DETAILS - PRI; BOX ASSY., CONTROL *NH83L* (OFF BLACK)

Note: Use from Frame SN 1000016 to 1002122.

$

$

Not available

45

Honda 39300-862-676CT

BOX ASSY., CONTROL *NH83L* (OFF BLACK)

Note: Use from Frame SN 1002123.

$

$

Not available

46

Honda 83551-300-000

GROMMET, AIR CLEANER HOUSING

$5.49

$

Usually ships in 3-6 days

0

47

Honda 90191-815-168

BOLT, KNOB (NOT AVAILABLE)

$

$

Currently unavailable

48

Honda 93500-04012-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X12)

$1.49

$

Usually ships in 3-6 days

0

49

Honda 93500-06012-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

$1.49

$

Usually ships in 3-6 days

0

50

Honda 94001-06080-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

51

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

52

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

53

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

54

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

55

Honda 98200-21500

FUSE B (15A)

$1.49

$

Usually ships in 3-6 days

0
