EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) AIR CLEANER + BREATHER Parts Diagram

Generator, Made in Japan

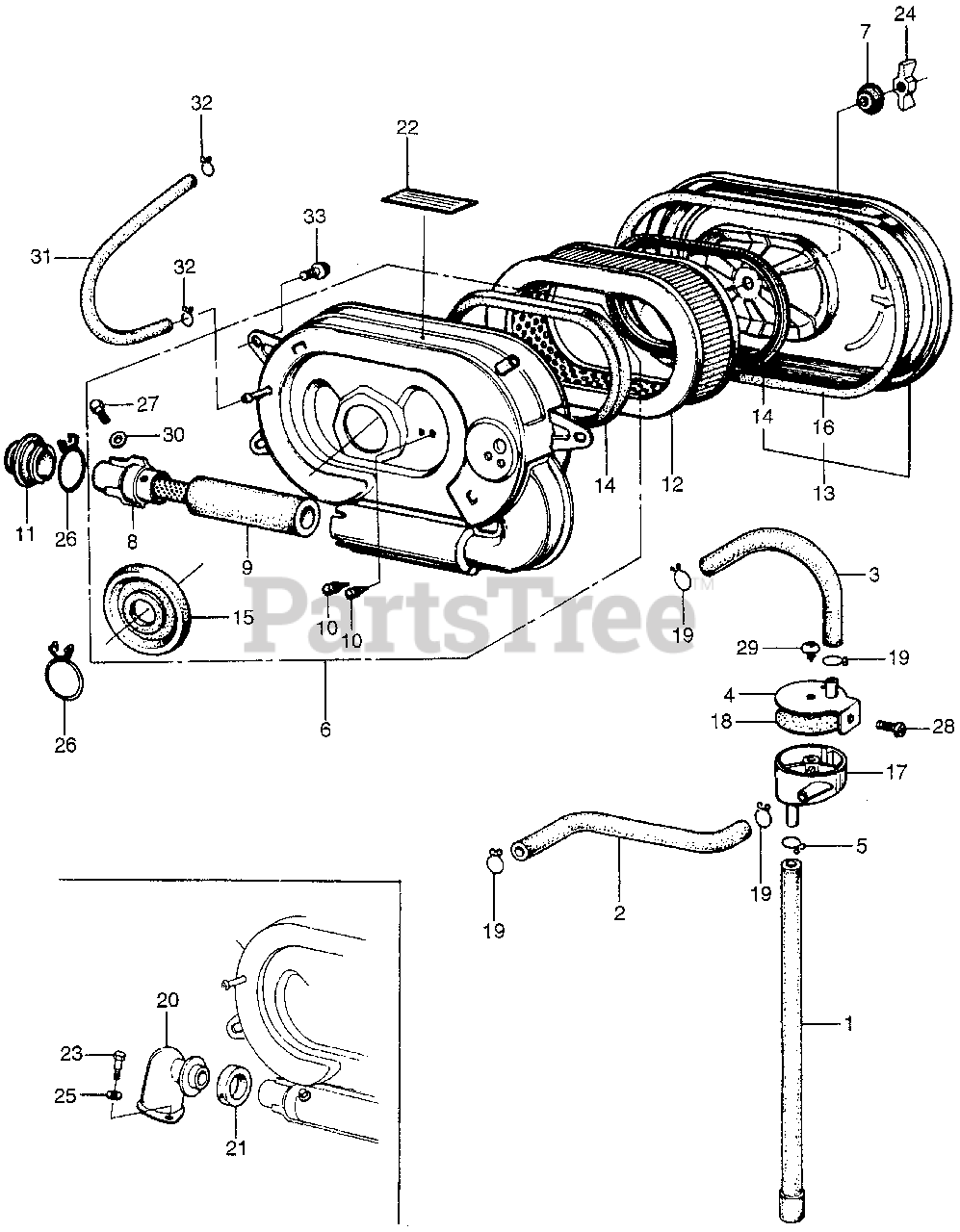

AIR CLEANER + BREATHER Parts Diagram

  • Title

1

Honda 15706-611-000

TUBE, OIL DRAIN

$

$

Not available

2

Honda 15712-862-010

TUBE, BREATHER

$

$

Currently unavailable

3

Honda 15713-862-020

TUBE B, BREATHER

$

$

Currently unavailable

4

Honda 15720-862-010

STAY, BREATHER

$

$

Not available

5

Honda 15772-551-680

CLIP, BREATHER TUBE (NOT AVAILABLE)

$8.99

$

Usually ships in 3-6 days

0

6

Honda 17210-862-030

CASE ASSY., CLEANER

$

$

Not available

7

Honda 17212-611-000

WASHER, AIR CLEANER COVER

$15.99

$

Usually ships in 3-6 days

0

8

Honda 17213-862-000

PIPE, INLET

$

$

Not available

9

Honda 17214-862-300

POLYURETHANE (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 17215-862-000

PLUG (4.5MM) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 17216-862-010

BOOT, CLEANER PIPE

$

$

Not available

12

Honda 17220-636-000

ELEMENT, CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 17220-862-000CB

COVER, AIR CLEANER *NH19M* (DARK GRAY METALLIC)

$

$

Not available

14

Honda 17221-636-300

GASKET, ELEMENT (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 17251-862-300

GROMMET, AIR CLEANER CONNECTING

$

$

Currently unavailable

16

Honda 17258-636-300

GASKET, CLEANER CASE

$

$

Not available

17

Honda 17271-611-010

CHAMBER, BREATHER (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 17272-611-000

GASKET, BREATHER

$

$

Not available

19

Honda 17316-611-000

CLIP, BREATHER TUBE

$13.99

$

Usually ships in 3-6 days

0

20

Honda 63380-862-000

VALVE ASSY., HOT AIR

Note: Use from Frame SN 1000415.

$

$

Not available

21

Honda 63385-862-000

SEAL, HOT AIR

Note: Use from Frame SN 1000415.

$

$

Not available

22

Honda 87557-862-670

MARK, AIR FILTER

$

$

Currently unavailable

23

Honda 90162-292-670

BOLT, FENDER SETTING (NOT AVAILABLE)

Note: Use from Frame SN 1000415.

$

$

Currently unavailable

24

Honda 90203-PB2-000

SEE PART DETAILS - PRI; WINGNUT, AIR CLEANER COVER

$10.99

$

In Stock, only 3 left!

0

25

Honda 90416-500-000

WASHER, FUEL FEED PIPE

Note: Use from Frame SN 1000415.

$

$

Not available

26

Honda 90653-689-000

SEE PART DETAILS - PRI; CIRCLIP (34MM)

Note: Use from Frame SN 1000016 to 1000414.

$

$

Not available

26

Honda 90653-689-000

SEE PART DETAILS - PRI; CIRCLIP (34MM)

Note: Use from Frame SN 1000415.

$

$

Not available

27

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 93500-06012

SEE PART DETAILS - SUP; SCREW, PAN (6X12)

$

$

Currently unavailable

28

Honda 93500-06012-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 93903-16010

SCREW, TAPPING (6X10)

$

$

Not available

30

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

31

Honda 95001-55008-60M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (5.5X8000) (5.5X200)

$124.99

$

Usually ships in 3-6 days

0

32

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 20+

0

33

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
