EM500 A (EM500) - Honda Generator, Made in Japan (SN: EM500-1000001 - EM500-9999999) CARBURETOR Parts Diagram

Generator, Made in Japan

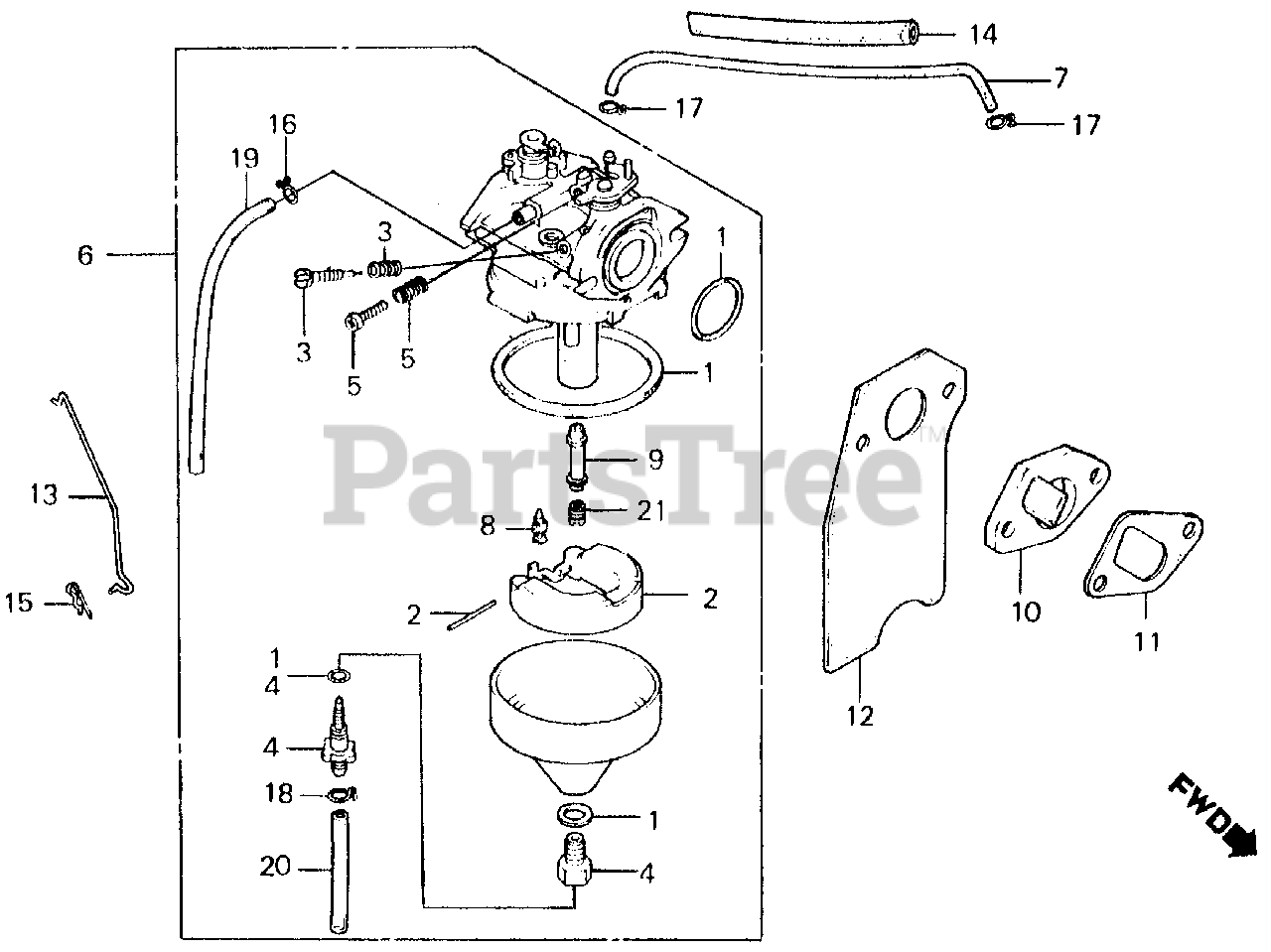

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-892-015

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-892-505)

$23.99

$

Usually ships in 3-6 days

0

2

Honda 16013-883-005

FLOAT SET

$38.99

$

Usually ships in 3-6 days

0

3

Honda 16016-892-005

SCREW SET A

$

$

Not available

4

Honda 16024-892-005

SCREW SET, DRAIN (NOT AVAILABLE)

$25.99

$

Usually ships in 3-6 days

0

5

Honda 16028-892-005

SCREW SET B (NOT AVAILABLE)

$7.71

$

In Stock, only 1 left!

0

6

Honda 16100-892-306

CARBURETOR ASSY.

$

$

Not available

7

Honda 16111-892-000

TUBE, FUEL (NOT AVAILABLE)

$

$

Not available

8

Honda 16155-883-005

VALVE, FLOAT

$26.99

$

Usually ships in 3-6 days

0

9

Honda 16166-892-005

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16211-892-000

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Not available

11

Honda 16212-892-306

GASKET, INSULATOR

$

$

Not available

12

Honda 16213-892-306

GASKET, CARBURETOR

$

$

Not available

13

Honda 16625-892-000

ROD, CHOKE (NOT AVAILABLE)

Note: Use up to Frame SN 1061704.

$

$

Currently unavailable

13

Honda 16625-892-010

ROD, CHOKE

Note: Use from Frame SN 1061705 to 1067588.

$

$

Currently unavailable

13

Honda 16625-892-020

ROD, CHOKE (NOT AVAILABLE)

Note: Use from Frame SN 1067589.

$

$

Currently unavailable

14

Honda 16854-836-010

RUBBER, SUPPORTER

$

$

Not available

15

Honda 90702-892-010

PIN, LOCK (NOT AVAILABLE)

Note: Use from Frame SN 1061705.

$

$

Currently unavailable

15

Honda 94251-04000

PIN, LOCK (4MM)

Note: Use up to Frame SN 1061704.

$0.99

$

Usually ships in 3-6 days

0

16

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

17

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

18

Honda 95002-02650

CLIP, TUBE (B6.5)

$1.99

$

In Stock, Qty 5

0

19

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X150)

$28.99

$

In Stock, only 1 left!

0

20

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (4X7X50)

$36.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0520

JET, MAIN (#52)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0450

JET, MAIN (#45)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0480

JET, MAIN (#48)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0500

JET, MAIN (#50)

$11.99

$

Usually ships in 3-6 days

0
