EM400 K1 A (EM400) - Honda Generator, Made in Japan (SN: EM400-3000001 - EM400-9999999) CRANKCASE + CYLINDER Parts Diagram

Generator, Made in Japan

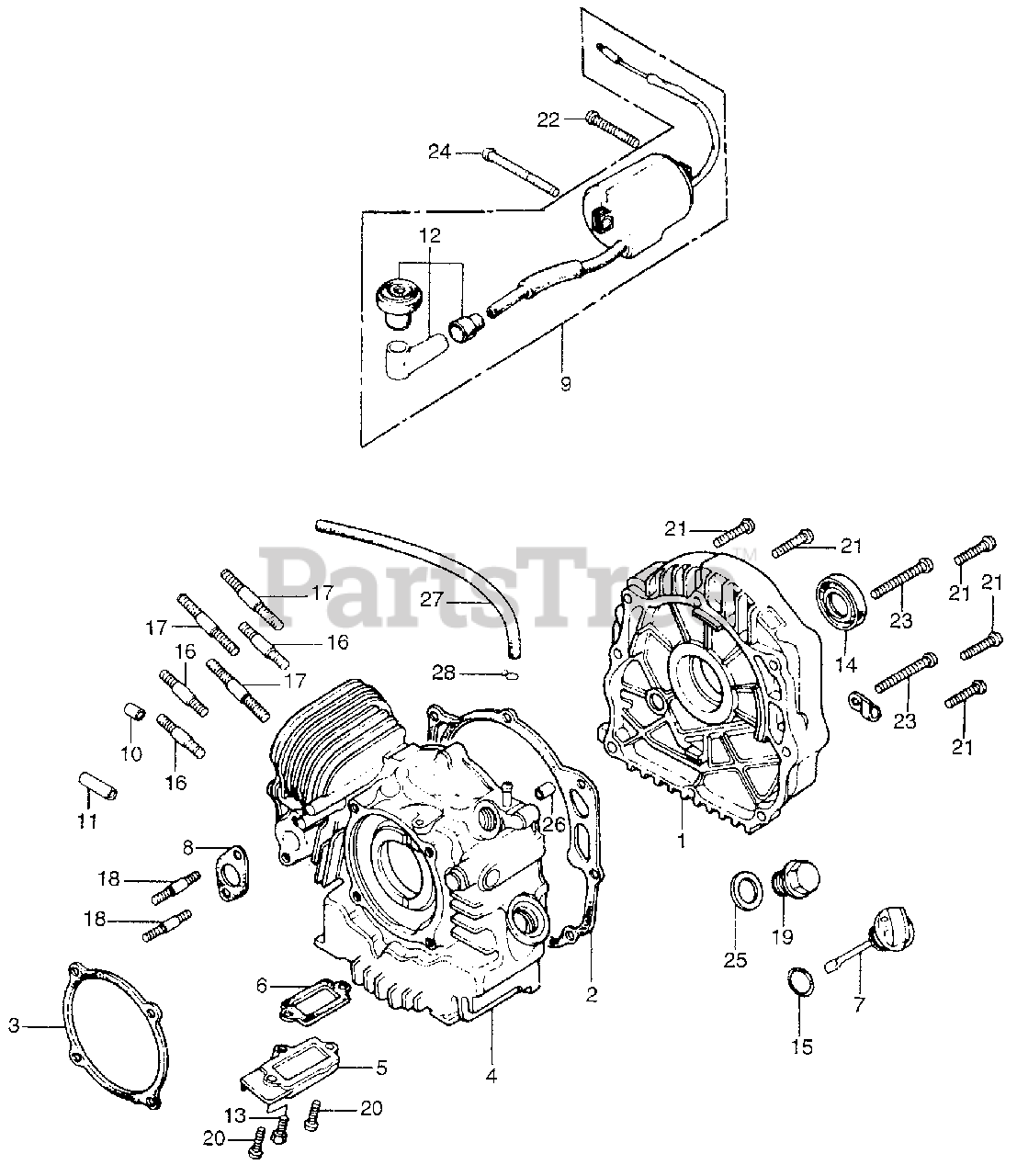

CRANKCASE + CYLINDER Parts Diagram

  • Title

1

Honda 11100-884-000

COVER, CRANKCASE

$

$

Not available

2

Honda 11191-836-306

GASKET, CRANKCASE COVER

$

$

Not available

3

Honda 11192-836-000

GASKET, STARTER CASE (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 12100-884-730

CYLINDER

$

$

Not available

5

Honda 12361-836-000

COVER, TAPPET

$

$

Not available

6

Honda 12369-812-010

GASKET, TAPPET COVER (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 15620-844-000

CAP, OIL FILLER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16229-812-000

GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 30500-884-014

COIL ASSY., IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 30531-812-000

COLLAR A, IGNITION DISTANCE (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 30532-812-000

COLLAR B, IGNITION DISTANCE

$

$

Not available

12

Honda 30615-836-601

TERMINAL ASSY., IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 90002-836-000

BOLT, SPECIAL (5MM)

$

$

Not available

14

Honda 91202-836-013

OIL SEAL (17X35X6) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

15

Honda 91304-MJ0-003

O-RING (15.8X2.4) (SHOWA)
(Superseded to 91303-800-000)

$2.99

$

In Stock, only 1 left!

0

16

Honda 92700-06040-30

BOLT, STUD (6X40)

$

$

Currently unavailable

16

Honda 92900-06025-3B

BOLT, STUD (6X40) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 92700-06050-3B

BOLT, STUD (6X50) (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 92710-05032-0B

BOLT, STUD (5X32) (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.99

$

Usually ships in 3-6 days

0

20

Honda 93500-05018-0A

SCREW, PAN (5X18)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-05022-0A

SCREW, PAN (5X22)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 93500-05028-0A

SCREW, PAN (5X28)

$1.49

$

In Stock, Qty 5

0

23

Honda 93500-05035-0A

SCREW, PAN (5X35)

$1.49

$

In Stock, only 3 left!

0

24

Honda 93500-05040-0A

SCREW, PAN (5X40)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

26

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

27

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X185)

$82.99

$

In Stock, only 1 left!

0

28

Honda 95002-02650

CLIP, TUBE (B6.5)

$1.99

$

In Stock, only 4 left!

0
