EM3800SX AN (EAMC) - Honda Generator, Made in China (SN: EAMC-1000001 - EAMC-9999999) BATTERY + BATTERY TRAY KIT Parts Diagram

Generator, Made in China

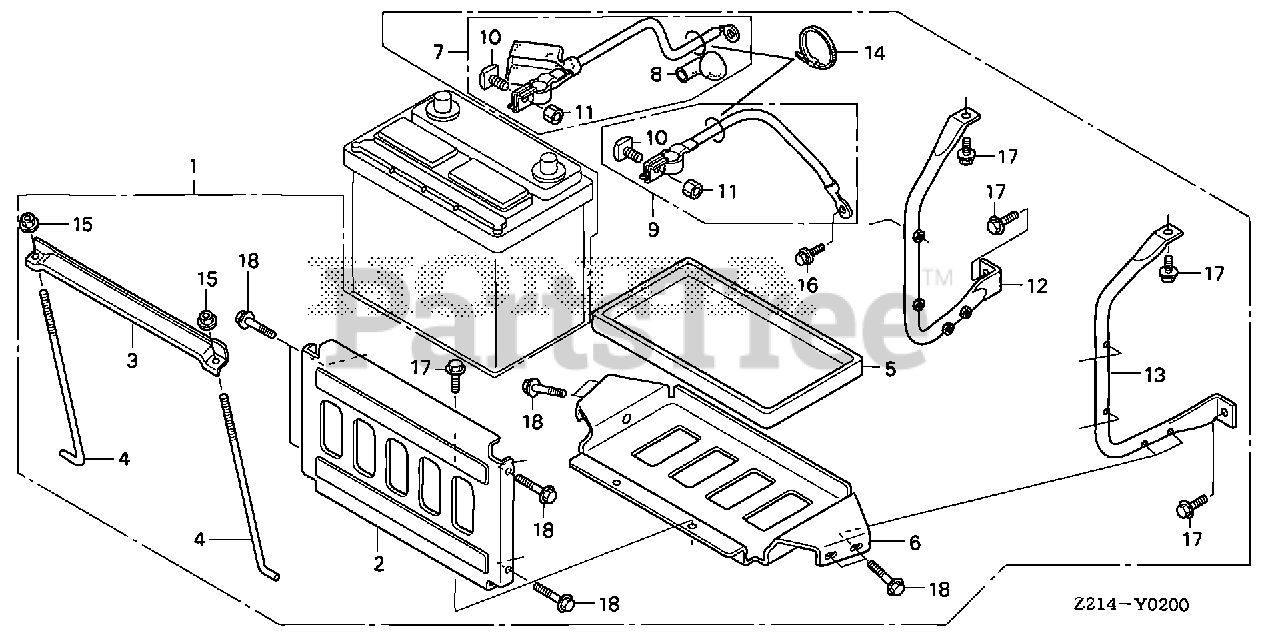

BATTERY + BATTERY TRAY KIT Parts Diagram

  • Title

NI

Honda 31500-SR1-HPE

BATTERY (GROUP 51R PE) (NOT AVAILABLE) (MSDS)

$

$

Not available

1

Honda 06550-Z22-A30AH

TRAY KIT, BATTERY *NH105* (MAT BLACK)

Note: (Optional).

$167.99

$

Usually ships in 3-6 days

0

1

Honda 06550-Z22-A31ZA

TRAY KIT, BATTERY *NH105* (MAT BLACK)
(Superseded to 06550-Z22-A30AH)

Note: (Optional).

$167.99

$

Usually ships in 3-6 days

0

2

Honda 31511-Z22-A30ZA

PLATE, BATTERY GUARD *NH105* (MAT BLACK)

Note: (Optional).

$

$

Not available

3

Honda 31512-Z18-W60

PLATE, BATTERY SETTING

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

4

Honda 31514-ZR8-T70

BOLT, BATTERY SETTING

Note: (Optional).

$

$

Not available

5

Honda 31521-SD9-000

BOX ASSY., BATTERY

Note: (Optional).

$42.99

$

Usually ships in 3-6 days

0

6

Honda 31528-Z22-A30ZA

BASE, BATTERY TRAY *NH105* (MAT BLACK)

Note: (Optional).

$106.99

$

Usually ships in 3-6 days

0

7

Honda 32410-Z22-A31

SEE PART DETAILS - PRI; CABLE ASSY., STARTING

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

8

Honda 32411-Z18-W60

COVER, STARTER MOTOR TERMINAL

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 32600-Z22-A31

CABLE ASSY., GROUND

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

10

Honda 32601-Z22-000

BOLT, BATTERY TERMINAL

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 32602-Z22-000

NUT, BATTERY TERMINAL

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 50365-Z22-A30ZA

GUARD, FR. BATTERY *NH105* (MAT BLACK)

Note: (Optional).

$97.99

$

Usually ships in 3-6 days

0

13

Honda 50375-Z22-A30ZA

GUARD, RR. BATTERY *NH105* (MAT BLACK)

Note: (Optional).

$93.99

$

Usually ships in 3-6 days

0

14

Honda 90650-KV6-003

BAND, WIRE (95MM)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

15

Honda 94050-06080

NUT, FLANGE (6MM)

Note: (Optional).

$0.99

$

In Stock, only 3 left!

0

16

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-08012-07

BOLT, FLANGE (8X12)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

18

Honda 95701-08040-07

BOLT, FLANGE (8X40)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0
