EM3500SX K1 A/C (EA6) - Honda Generator, Made in Japan (SN: EA6-1150001 - EA6-1999999) REAR HOUSING Parts Diagram

Generator, Made in Japan

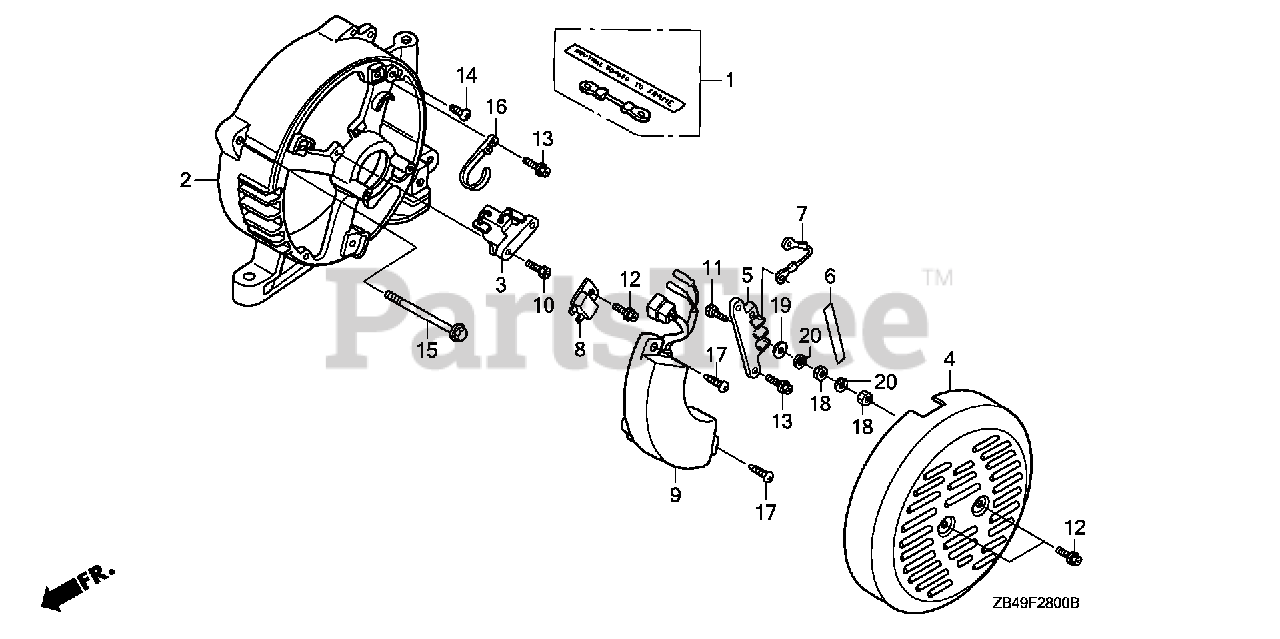

REAR HOUSING Parts Diagram

  • Title

2

Honda 311A0-ZB4-631

SEE PART DETAILS - PRI; HOUSING, RR. (NA USE ALT:31108-ZB4-631)

$

$

Currently unavailable

3

Honda 31106-ZB4-003

BRUSH ASSY.

$76.99

$

In Stock, only 1 left!

0

4

Honda 31113-ZB4-003ZD

COVER, GENERATOR END *NH105* (MAT BLACK)

$93.99

$

Usually ships in 3-6 days

0

4

Honda 31113-ZB4-003ZF

SEE PART DETAILS - PRI; COVER, GENERATOR END *R280* (POWER RED)

$

$

Not available

5

Honda 31118-898-691

TERMINAL, VOLT CHANGE

$46.99

$

Usually ships in 3-6 days

0

6

Honda 31119-ZB4-631

MARK, VOLT

$4.49

$

Usually ships in 3-6 days

0

8

Honda 31720-ZA8-013

SEE PART DETAILS - PRI; DIODE, D.C.
(Superseded to 31720-ZA8-V00)

$48.99

$

Usually ships in 3-6 days

0

9

Honda 32350-ZB4-A42

REGULATOR ASSY., AUTOMATIC VOLTAGE

$371.99

$

Usually ships in 3-6 days

0

10

Honda 90031-ZC0-003

SCREW, TAPPING (5X18)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90031-ZD1-E31

BOLT, HEX. (5X20)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90031-875-003

SCREW, TAPPING (5X12)

$2.99

$

In Stock, only 4 left!

0

13

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90102-899-003

SCREW, PAN (5X12)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90157-ZB4-003

BOLT, FLANGE (6X120)

$7.49

$

Usually ships in 3-6 days

0

16

Honda 90673-ZB4-003

TIE, CABLE

$5.99

$

Usually ships in 3-6 days

0

17

Honda 93904-25320

SCREW, TAPPING (5X16)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 94002-05390-0S

NUT, HEX. (5MM)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

20

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
