EM3500SX K1 A/C (EA6) - Honda Generator, Made in Japan (SN: EA6-1150001 - EA6-1999999) EM SWITCH BOX Parts Diagram

Generator, Made in Japan

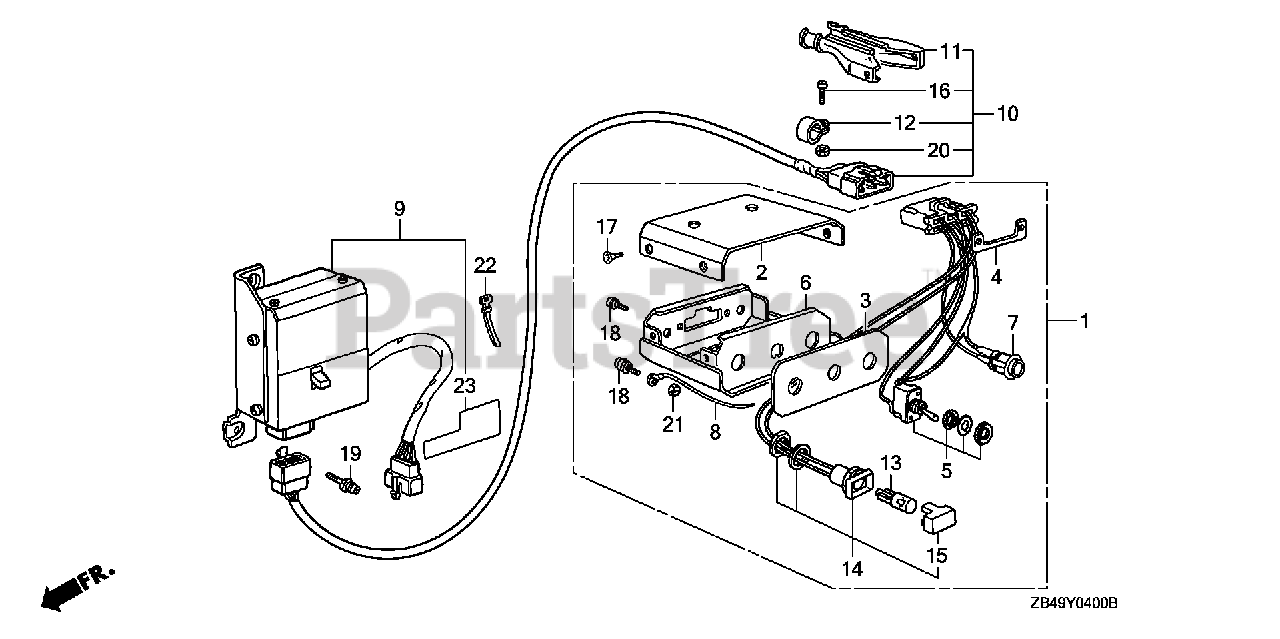

EM SWITCH BOX Parts Diagram

  • Title

1

Honda 31610-ZB4-000ZC

BOX ASSY., SWITCH *R280* (POWER RED)

Note: (Optional).

$229.99

$

Usually ships in 3-6 days

0

2

Honda 31611-880-810ZA

COVER (UPPER) *R8* (BRIGHT RED)
(Superseded to 31611-880-810ZE)

Note: (Optional). Use up to Frame SN 1151650.

$21.99

$

Usually ships in 3-6 days

0

2

Honda 31611-880-810ZE

COVER (UPPER) *R280* (POWER RED)

Note: (Optional). Use from Frame SN 1151651.

$21.99

$

Usually ships in 3-6 days

0

3

Honda 31612-ZB4-000

PLATE, SWITCH & INDICATOR
(Superseded to 31612-ZB4-010)

Note: (Optional). Use up to Frame SN 1151792.

$26.99

$

Usually ships in 3-6 days

0

3

Honda 31612-ZB4-010

PLATE, SWITCH & INDICATOR

Note: (Optional). Use from Frame SN 1151793.

$26.99

$

Usually ships in 3-6 days

0

4

Honda 31613-880-810

PLATE, CONNECTOR SETTING

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

5

Honda 31614-880-810

SWITCH, TOGGLE

Note: (Optional).

$64.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZB4-000ZA

CASE, SWITCH *R8* (BRIGHT RED)
(Superseded to 31615-ZB4-000ZD)

Note: (Optional). Use up to Frame SN 1151650.

$38.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZB4-000ZD

CASE, SWITCH *R280* (POWER RED)

Note: (Optional). Use from Frame SN 1151651.

$38.99

$

Usually ships in 3-6 days

0

7

Honda 31619-880-810

SWITCH, PUSH

Note: (Optional).

$59.99

$

Usually ships in 3-6 days

0

8

Honda 31621-893-720

WIRE, GROUND

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

9

Honda 31650-ZB4-000

BOX ASSY., RELAY

Note: (Optional).

$364.99

$

Usually ships in 3-6 days

0

10

Honda 31690-893-720

CABLE, REMOTE CONTROL (10M)

Note: (Optional).

$91.99

$

Usually ships in 3-6 days

0

11

Honda 31691-893-720

COVER, CONNECTOR

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 31692-893-720

BAND

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

13

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W)

Note: (Optional).

$3.99

$

In Stock, only 1 left!

0

14

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN)

Note: (Optional).

$49.99

$

Usually ships in 3-6 days

0

15

Honda 37563-ZA0-801

LENS (GREEN)

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

16

Honda 93500-03012-3C

SCREW, PAN (3X12)

Note: (Optional).

$

$

Currently unavailable

17

Honda 93600-04008-0H

SCREW, FLAT (4X8)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93892-04012-08

SCREW-WASHER (4X12)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

19

Honda 93893-06025-10

SCREW-WASHER (6X25)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94001-03330-0S

NUT, HEX. (3MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94001-04080-0S

NUT, HEX. (4MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 95014-62100

BAND B1, WIRE

Note: (Optional).

$2.49

$

In Stock, Qty 5

0

23

Honda 31654-899-000

MARK, REMOTE CONTROL
(Superseded to 31654-899-010)

Note: (Optional). Use up to Frame SN 1151792.

$4.99

$

Usually ships in 3-6 days

0

23

Honda 31654-899-010

MARK, REMOTE CONTROL

Note: (Optional). Use from Frame SN 1151793.

$4.99

$

Usually ships in 3-6 days

0
