EM3500SX K1 A/C (EA6) - Honda Generator, Made in Japan (SN: EA6-1150001 - EA6-1999999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

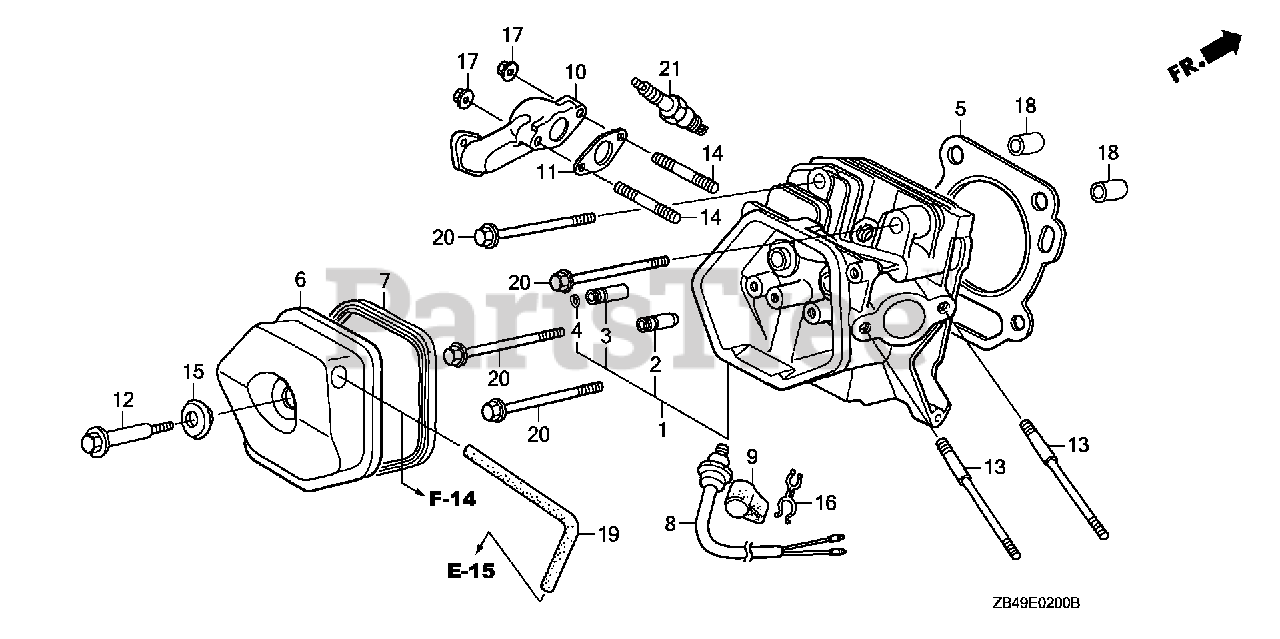

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZH9-405

CYLINDER HEAD

$356.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$

$

Not available

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE2-801)

$15.99

$

Usually ships in 3-6 days

0

5

Honda 12251-ZE2-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$15.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE2-020

COVER, HEAD

$61.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$12.99

$

In Stock, Qty 20+

0

8

Honda 16500-ZE2-702

SEE PART DETAILS - SUP; SWITCH, THERMO
(Superseded to 16500-ZE2-703)

$77.99

$

Usually ships in 3-6 days

0

8

Honda 16500-ZE2-703

SEE PART DETAILS - PRI; SWITCH, THERMO

$77.99

$

Usually ships in 3-6 days

0

10

Honda 18330-ZE2-700

PIPE, EX.

$73.99

$

Usually ships in 3-6 days

0

11

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$5.49

$

In Stock, Qty 20+

0

11

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$5.49

$

In Stock, Qty 20+

0

12

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

13

Honda 90042-ZE2-700

BOLT, STUD (8X98)

$9.99

$

Usually ships in 3-6 days

0

14

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT, STUD (8X32)

$2.99

$

In Stock, Qty 20+

0

15

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.99

$

In Stock, Qty 12

0

16

Honda 90658-SA0-003

CLIP, WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

17

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

18

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

21

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

21

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
