EM3000 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1000001 - GE300-9999999) EM3000 CONTROL BOX Parts Diagram

Generator, Made in Japan

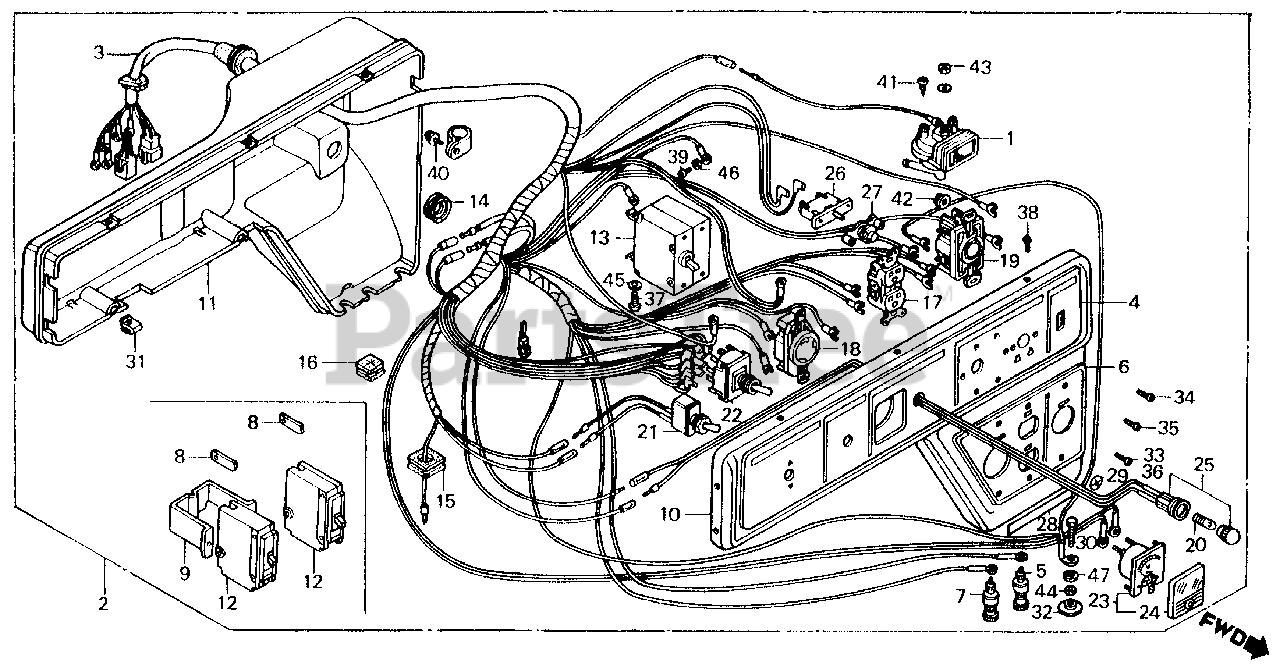

EM3000 CONTROL BOX Parts Diagram

  • Title

1

Honda 15520-898-003

SWITCH ASSY., UNIT

$105.99

$

Usually ships in 3-6 days

0

2

Honda 31400-899-731H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1041952.

$

$

Not available

2

Honda 31400-899-732H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use from Frame SN 1041953.

$

$

Not available

3

Honda 31404-899-731

WIRE HARNESS ASSY.

Note: Use up to Frame SN 1041952.

$

$

Not available

3

Honda 31404-899-732

WIRE HARNESS ASSY.

Note: Use from Frame SN 1041953.

$

$

Not available

4

Honda 31406-899-730

MARK, SWITCH PANEL

Note: Use up to Frame SN 1041952.

$

$

Not available

4

Honda 31406-899-731

MARK, SWITCH PANEL

Note: Use from Frame SN 1041953.

$

$

Not available

5

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$46.99

$

Usually ships in 3-6 days

0

6

Honda 31408-899-630

MARK, A.C. OUTPUT

Note: Use up to Frame SN 1041952.

$

$

Not available

6

Honda 31408-899-631

MARK, A.C. OUTPUT

Note: Use from Frame SN 1041953.

$

$

Not available

7

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$46.99

$

Usually ships in 3-6 days

0

8

Honda 31414-880-000

TERMINAL, BREAKER

Note: Use up to Frame SN 1041952.

$18.99

$

Usually ships in 3-6 days

0

9

Honda 31415-880-000

SUPPORT, BREAKER (NOT AVAILABLE)

Note: Use up to Frame SN 1041952.

$

$

Currently unavailable

10

Honda 31420-ZA1-730H

PANEL, CONTROL *R8* (EM-A) (BRIGHT RED)

Note: Use from Frame SN 1041953.

$

$

Currently unavailable

10

Honda 31420-899-630H

PANEL, CONTROL *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use up to Frame SN 1041952.

$

$

Currently unavailable

11

Honda 31425-899-000

CASE, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 31430-899-630

BREAKER, CIRCUIT (12.5A) (NOT AVAILABLE)

Note: Use up to Frame SN 1041952.

$

$

Not available

13

Honda 31435-899-630

BREAKER, CIRCUIT (12.5A) (NOT AVAILABLE)

Note: Use from Frame SN 1041953.

$

$

Not available

14

Honda 31473-898-000

GROMMET, UNIT SWITCH

$6.99

$

Usually ships in 3-6 days

0

15

Honda 31483-899-003

GROMMET, SWITCH WIRE

$

$

Not available

16

Honda 31484-899-003

GROMMET, WIRE

$

$

Not available

17

Honda 32330-Z07-C30

SEE PART DETAILS - PRI; RECEPTACLE ASSY. (125V-20A)

$58.99

$

In Stock, only 1 left!

0

17

Honda 32330-899-630

SEE PART DETAILS - SUP; RECEPTACLE (20A/125V)
(Superseded to 32330-Z07-C30)

$58.99

$

In Stock, only 1 left!

0

18

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$46.99

$

In Stock, only 1 left!

0

19

Honda 32332-899-630

RECEPTACLE (20A/125-250V)

$

$

Not available

20

Honda 34909-880-000

BULB (24V2W)

$8.49

$

Usually ships in 3-6 days

0

21

Honda 36100-877-611

SWITCH ASSY., ENGINE (NOT AVAILABLE)

$

$

Not available

22

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$213.99

$

Usually ships in 3-6 days

0

23

Honda 37450-898-650

VOLTMETER ASSY.

$290.99

$

Usually ships in 3-6 days

0

24

Honda 37451-898-000

LENS, METER

$

$

Not available

25

Honda 37560-880-000

SEE PART DETAILS - SUP; SOCKET ASSY., PILOT LAMP
(Superseded to 37560-ZA0-003)

$34.99

$

Usually ships in 3-6 days

0

26

Honda 38240-898-000

PROTECTOR, CIRCUIT (DC)

$36.99

$

In Stock, only 4 left!

0

27

Honda 38250-898-000

LENS ASSY., PROTECTOR

$24.99

$

Usually ships in 3-6 days

0

28

Honda 87524-898-630

MARK, D.C. OUTPUT (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.49

$

In Stock, Qty 5

0

30

Honda 90011-899-000

BOLT, HEX. (6X18)

$3.99

$

Usually ships in 3-6 days

0

31

Honda 90320-692-000

NUT, SPRING (5MM)

$9.49

$

Usually ships in 3-6 days

0

32

Honda 90381-812-710

NUT, SPECIAL (6MM)

$2.49

$

In Stock, only 1 left!

0

33

Honda 93500-03006-0G

SCREW, PAN (3X6)

Note: Use from Frame SN 1041953.

$0.99

$

In Stock, only 3 left!

0

34

Honda 93500-03012-0G

SCREW, PAN (3X12)

$

$

Not available

35

Honda 93500-04006-0G

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 6

0

36

Honda 93500-04008-0A

SCREW, PAN (4X8)

Note: Use up to Frame SN 1041952.

$1.49

$

In Stock, only 4 left!

0

37

Honda 93500-04010-3J

SCREW, PAN (4X10)

Note: Use from Frame SN 1041953.

$2.49

$

Usually ships in 3-6 days

0

38

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$1.49

$

In Stock, Qty 8

0

39

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 93893-05010-00

SCREW-WASHER (5X10)

$

$

Not available

41

Honda 93901-15120

SCREW, TAPPING (5X10)

$0.99

$

Usually ships in 3-6 days

0

42

Honda 94001-04000-0S

NUT, HEX. (4MM)

$1.49

$

In Stock, only 1 left!

0

43

Honda 94001-05390-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 94001-06390-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

45

Honda 94111-04800

WASHER, SPRING (4MM)

Note: Use from Frame SN 1041953.

$1.49

$

Usually ships in 3-6 days

0

46

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

47

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0
