EM2500X K1 A/B (EZCN) - Honda Generator, Made in Japan (SN: EZCN-1036739 - EZCN-1109999) FUEL TANK Parts Diagram

Generator, Made in Japan

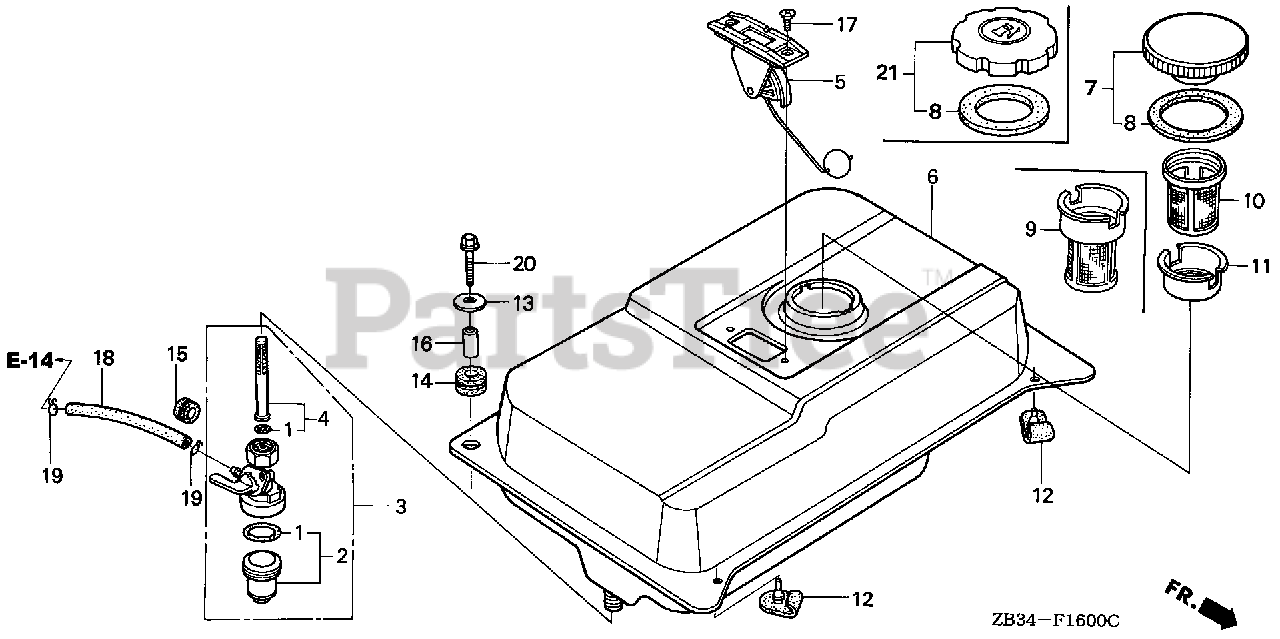

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-898-631

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

$29.99

$

Usually ships in 3-6 days

0

2

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-898-633

SEE PART DETAILS - PRI; PETCOCK ASSY.

$57.99

$

In Stock, only 1 left!

0

4

Honda 16952-883-005

SCREEN SET

Note: Use up to Frame SN 1093217.

$18.99

$

In Stock, only 1 left!

0

4

Honda 16952-GG2-731

SCREEN SET

Note: Use from Frame SN 1093218.

$21.99

$

Usually ships in 3-6 days

0

5

Honda 17505-ZB2-003

SEE PART DETAILS - SUP; METER ASSY., FUEL
(Superseded to 17505-ZB2-013)

$25.99

$

Usually ships in 3-6 days

0

6

Honda 17510-ZB2-000ZM

SEE PART DETAILS - PRI; TANK, FUEL *R280* (POWER RED)

$215.99

$

Usually ships in 3-6 days

0

8

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use up to Frame SN 1093663.

$

$

Not available

8

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use from Frame SN 1093664.

$3.49

$

Usually ships in 3-6 days

0

9

Honda 17672-ZE2-W01

FILTER, FUEL

$12.99

$

In Stock, only 1 left!

0

12

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

$4.99

$

Usually ships in 3-6 days

0

13

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

14

Honda 90852-898-000

RUBBER, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90854-ZB2-000

RUBBER, FUEL (9X15X10)

Note: Use up to Frame SN 1061956.

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90854-ZB3-000

RUBBER, FUEL (9X15X20)

Note: Use from Frame SN 1061957.

$4.49

$

In Stock, only 1 left!

0

16

Honda 91552-898-000

COLLAR, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

17

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, only 3 left!

0

18

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X95)

$54.99

$

In Stock, only 4 left!

0

19

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

20

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 9

0

21

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use up to Frame SN 1093685.

$

$

Not available

21

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use from Frame SN 1093686.

$

$

Not available

21

Honda 17620-Z0T-814

SEE PART DETAILS - SUP; CAP, FUEL FILLER (CHROME PLATED)(TOUYOUSYA)
(Superseded to 17620-Z0T-305)

Note: Use from Frame SN 1093686.

$

$

Not available
