EM2500X K1 A/A (EZCN) - Honda Generator, Made in Japan (SN: EZCN-1000001 - EZCN-1036738) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

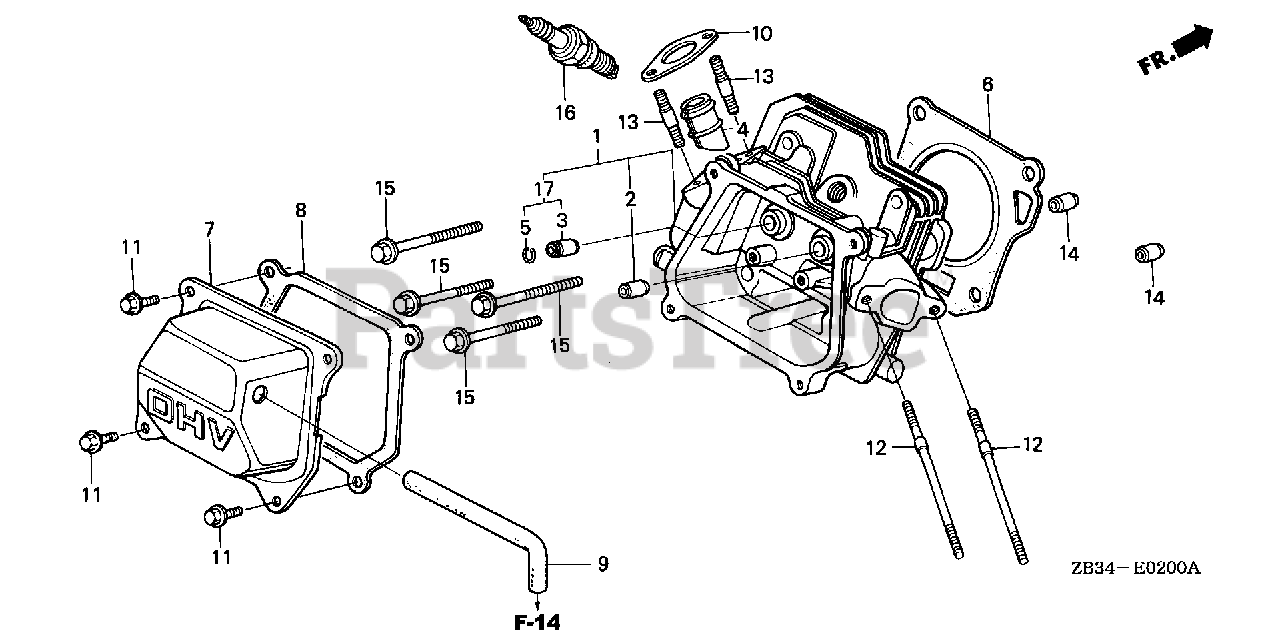

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12210-ZH8-415

SEE PART DETAILS - PRI; CYLINDER HEAD

$177.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE1-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)

Note: (Optional). Use up to Engine SN 2401552.

$

$

Not available

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

5

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 18

0

6

Honda 12251-ZF1-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZF1-801)

$18.99

$

In Stock, only 2 left!

0

6

Honda 12251-ZF1-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$18.99

$

In Stock, only 2 left!

0

7

Honda 12310-ZE1-000

SEE PART DETAILS - SUP; COVER, HEAD

$

$

Not available

7

Honda 12310-ZE1-010

SEE PART DETAILS - SUP; COVER, HEAD
(Superseded to 12310-ZE1-020)

$18.99

$

In Stock, only 1 left!

0

7

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

$18.99

$

In Stock, only 1 left!

0

8

Honda 12391-ZE1-000

GASKET, HEAD COVER

$5.49

$

In Stock, Qty 20+

0

9

Honda 15721-883-030

TUBE, BREATHER

$6.49

$

Usually ships in 3-6 days

0

10

Honda 18381-ZH8-800

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-ZH8-801)

$4.49

$

In Stock, only 1 left!

0

10

Honda 18381-ZH8-801

SEE PART DETAILS - PRI; GASKET, MUFFLER

$4.49

$

In Stock, only 1 left!

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 2708337.

$1.99

$

In Stock, Qty 20+

0

11

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (CT200)

Note: Use up to Engine SN 2708336.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90043-ZB2-003

BOLT, STUD (6X94)

$6.49

$

Usually ships in 3-6 days

0

13

Honda 90047-ZE1-000

BOLT, STUD (8X32)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

15

Honda 95723-08060-00

BOLT, FLANGE (8X60)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

16

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, only 1 left!

0

17

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$10.99

$

In Stock, only 3 left!

0
