EM2200 A (GE200) - Honda Generator, Made in Japan (SN: GE200-1000001 - GE200-9999999) FUEL TANK Parts Diagram

Generator, Made in Japan

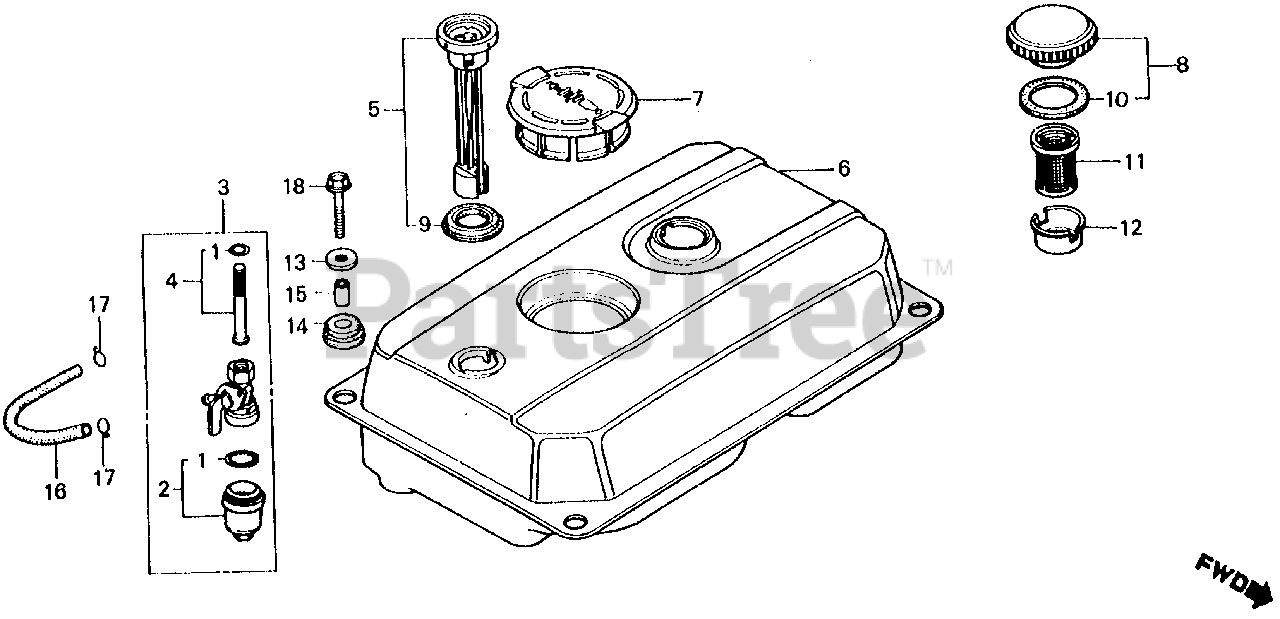

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-898-631

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

$29.99

$

Usually ships in 3-6 days

0

2

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-898-631

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-898-633)

$57.99

$

In Stock, only 1 left!

0

3

Honda 16950-898-632

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-898-633)

$57.99

$

In Stock, only 1 left!

0

3

Honda 16950-898-633

SEE PART DETAILS - PRI; PETCOCK ASSY.

$57.99

$

In Stock, only 1 left!

0

4

Honda 16952-883-005

SCREEN SET

$18.99

$

In Stock, only 1 left!

0

5

Honda 17505-898-623

METER, FUEL

$

$

Not available

6

Honda 17510-898-000XC

TANK, FUEL *NH31* (MCKINLEY WHITE)

$

$

Currently unavailable

7

Honda 17617-898-000

CAP, SPARK PLUG HOLE

$26.99

$

Usually ships in 3-6 days

0

8

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

$

$

Not available

9

Honda 17624-187-020

GASKET C, FUEL METER

$

$

Not available

10

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

11

Honda 17672-880-000

FILTER, FUEL

$13.99

$

Usually ships in 3-6 days

0

12

Honda 17673-893-000

HOLDER, FUEL FILTER

$14.99

$

In Stock, only 1 left!

0

13

Honda 90503-898-000

WASHER, TANK RUBBER

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90851-898-000

CUSHION, TANK RUBBER

$5.99

$

In Stock, only 1 left!

0

15

Honda 91551-898-000

COLLAR, TANK RUBBER

$5.99

$

Usually ships in 3-6 days

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X105)

$54.99

$

In Stock, only 4 left!

0

17

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

18

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

In Stock, Qty 8

0
