EM2200 A (GE200) - Honda Generator, Made in Japan (SN: GE200-1000001 - GE200-9999999) FAN COVER + SHROUD Parts Diagram

Generator, Made in Japan

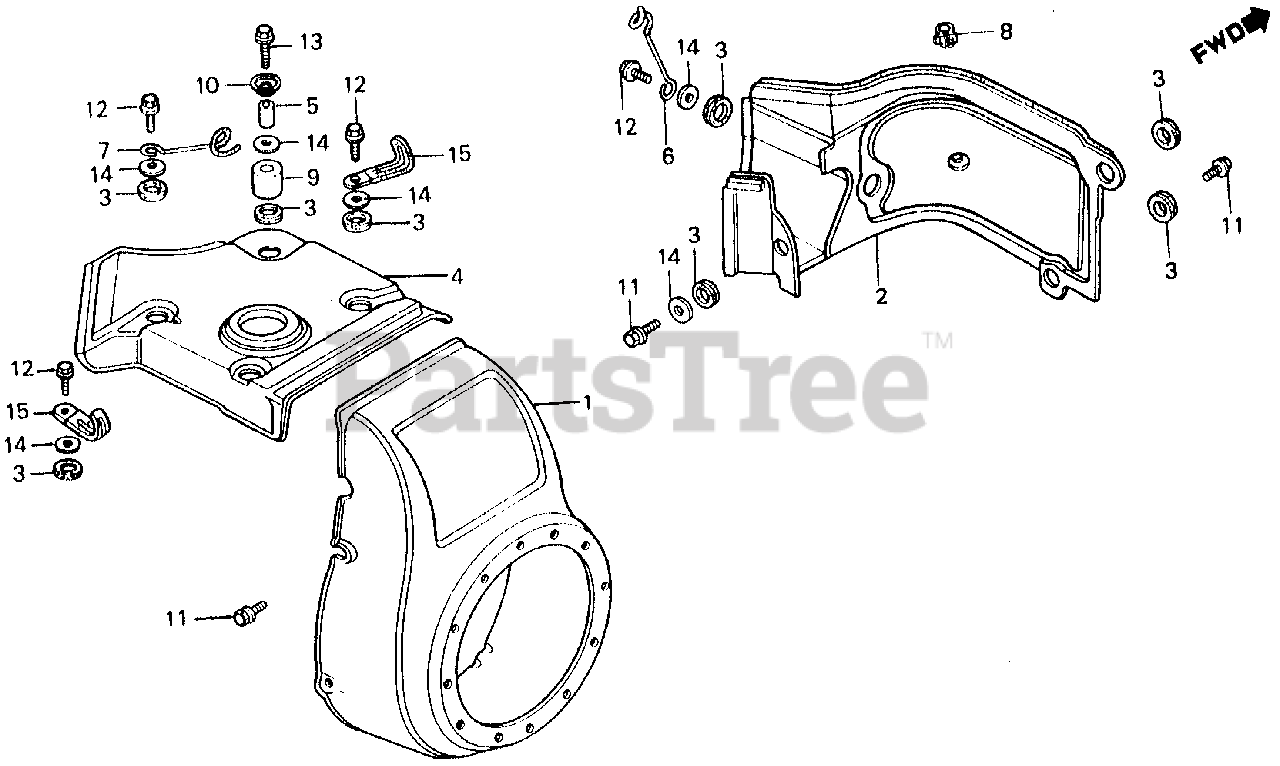

FAN COVER + SHROUD Parts Diagram

  • Title

1

Honda 19600-898-000H

COVER, FAN *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Not available

2

Honda 19630-898-000H

SHROUD *R8* (BRIGHT RED)

$

$

Not available

3

Honda 19635-898-000

RUBBER, MOUNTING

$

$

Currently unavailable

4

Honda 19640-898-000H

COVER, TOP *R8* (BRIGHT RED)

$

$

Not available

5

Honda 30507-439-930

COLLAR, IGNITION COIL SETTING

$6.49

$

Usually ships in 3-6 days

0

6

Honda 30588-883-000

CLAMP, IGNITION TUBE

$

$

Not available

7

Honda 30588-898-000

CLAMP, IGNITION TUBE

$5.99

$

Usually ships in 3-6 days

0

8

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

9

Honda 50318-898-000

RUBBER, STOPPER

$6.99

$

Usually ships in 3-6 days

0

10

Honda 50319-898-000

PLATE, STOPPER

$

$

Not available

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

12

Honda 90014-952-000

BOLT, FLANGE (6X14)

$2.99

$

In Stock, only 4 left!

0

13

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 1 left!

0

14

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

15

Honda 91406-671-000

CLIP, WIRE HARNESS

$21.99

$

Usually ships in 3-6 days

0
