EM2200 A (GE200) - Honda Generator, Made in Japan (SN: GE200-1000001 - GE200-9999999) C.D.I. UNIT + EXCITER COIL Parts Diagram

Generator, Made in Japan

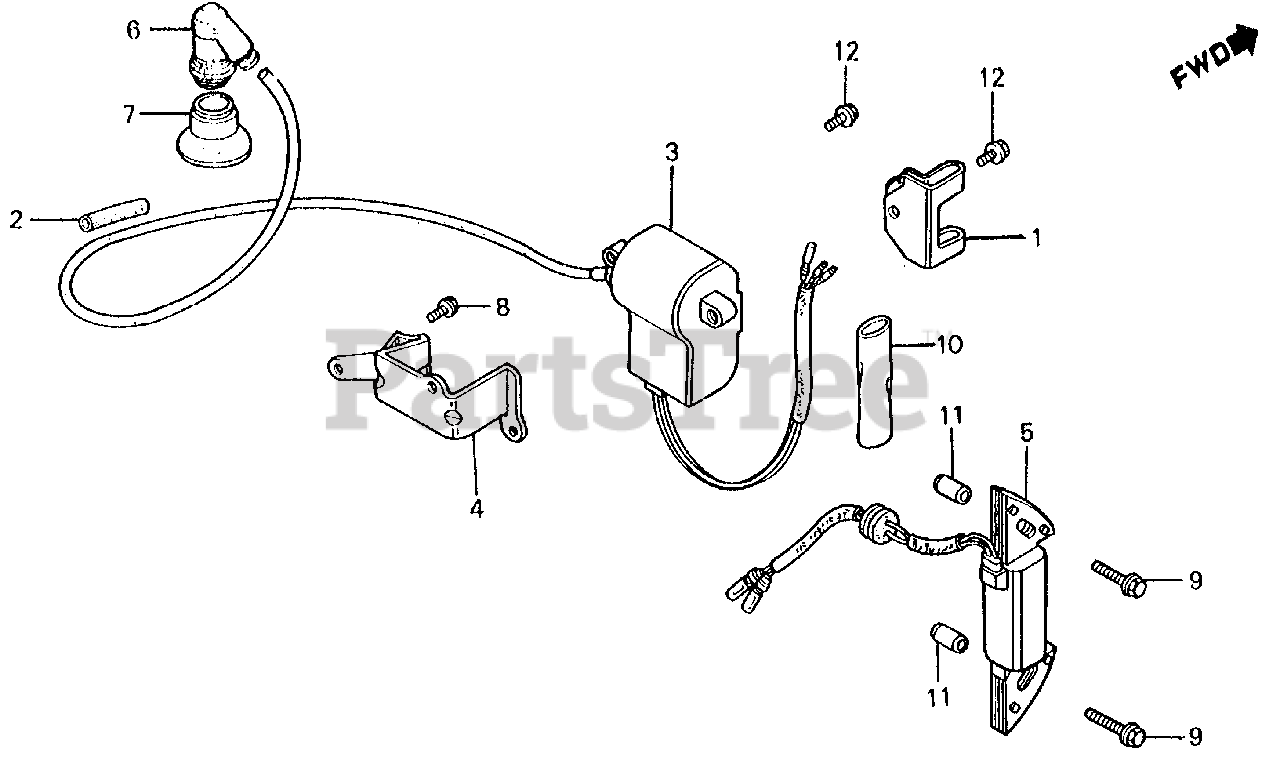

C.D.I. UNIT + EXCITER COIL Parts Diagram

  • Title

1

Honda 30561-898-000

CLIP, WIRE

$

$

Not available

2

Honda 30565-728-000

SEE PART DETAILS - PRI; TUBE, IGNITION RUBBER

$10.99

$

Usually ships in 3-6 days

0

3

Honda 30580-898-000

MODULE, IGNITION CONTROL (CDI)

$

$

Not available

4

Honda 30586-898-000

STAY, IGNITION CONTROL MODULE

$

$

Not available

5

Honda 30590-898-000

COIL ASSY., EXCITER

$

$

Not available

6

Honda 30700-898-013

CAP ASSY., NOISE SUPPRESSOR

$17.99

$

Usually ships in 3-6 days

0

7

Honda 30701-898-003

SEAL, IGNITION

$12.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

9

Honda 90015-883-000

BOLT, FLANGE (6X28)

$3.99

$

In Stock, only 3 left!

0

10

Honda 91406-898-000

TUBE, CORD

$4.49

$

Usually ships in 3-6 days

0

11

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

12

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

12

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0
