EM1800X A (GX140) - Honda Generator, Made in Japan (SN: GX140-1000001 - GX140-3263982) FRAME Parts Diagram

Generator, Made in Japan

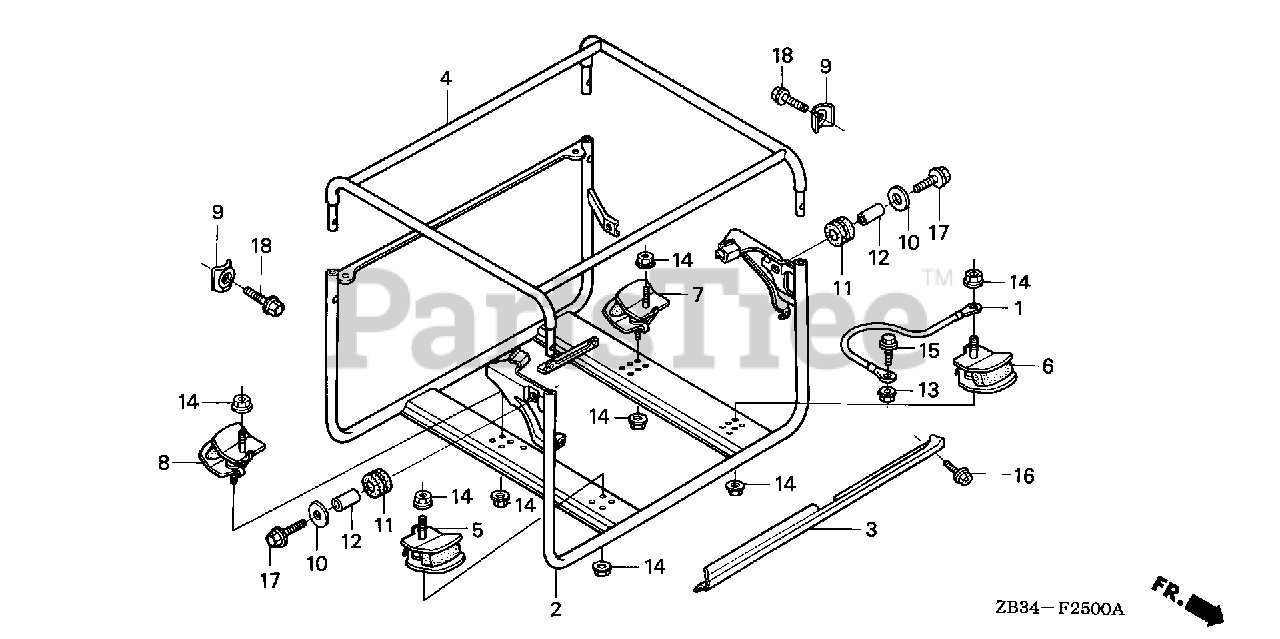

FRAME Parts Diagram

  • Title

1

Honda 32610-899-000

CABLE, GROUND

Note: Use from Frame SN 2308313.

$13.99

$

Usually ships in 3-6 days

0

2

Honda 50310-ZB2-010

FRAME (LOWER)

$393.99

$

Usually ships in 3-6 days

0

3

Honda 50315-ZB2-000

CHANNEL, FR.

$

$

Not available

4

Honda 50350-ZB2-000

FRAME (UPPER) (NOT AVAILABLE)

Note: Use up to Frame SN 1016028.

$

$

Currently unavailable

4

Honda 50350-ZB2-010

FRAME (UPPER) (NOT AVAILABLE)

Note: Use from Frame SN 1016029.

$

$

Currently unavailable

5

Honda 68325-ZB2-003

RUBBER (LOWER)

$41.99

$

Usually ships in 3-6 days

0

6

Honda 68325-ZB2-003

RUBBER (LOWER)

$41.99

$

Usually ships in 3-6 days

0

7

Honda 68325-898-000

RUBBER, FR. (LOWER) (NOT AVAILABLE)

Note: Use up to Frame SN 1315237.

$

$

Not available

7

Honda 68326-ZB2-000

RUBBER, FR. (LOWER)

Note: Use from Frame SN 1315238.

$39.99

$

Usually ships in 3-6 days

0

8

Honda 68327-ZB2-000

RUBBER, RR. (LOWER)

Note: Use from Frame SN 1315238.

$39.99

$

Usually ships in 3-6 days

0

8

Honda 68327-898-000

RUBBER, RR. (LOWER)

Note: Use up to Frame SN 1315237.

$46.99

$

Usually ships in 3-6 days

0

9

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 14

0

10

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

11

Honda 90852-898-000

RUBBER, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

12

Honda 91552-898-000

COLLAR, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

13

Honda 94050-06080

NUT, FLANGE (6MM)

Note: Use from Frame SN 2308313.

$0.99

$

In Stock, Qty 5

0

14

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use from Frame SN 2308313.

$1.99

$

In Stock, Qty 13

0

16

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

17

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 9

0

18

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0
