EM1800 A (GE200) - Honda Generator, Made in Japan (SN: GE200-1000001 - GE200-9999999) REAR HOUSING + D.C. DIODE Parts Diagram

Generator, Made in Japan

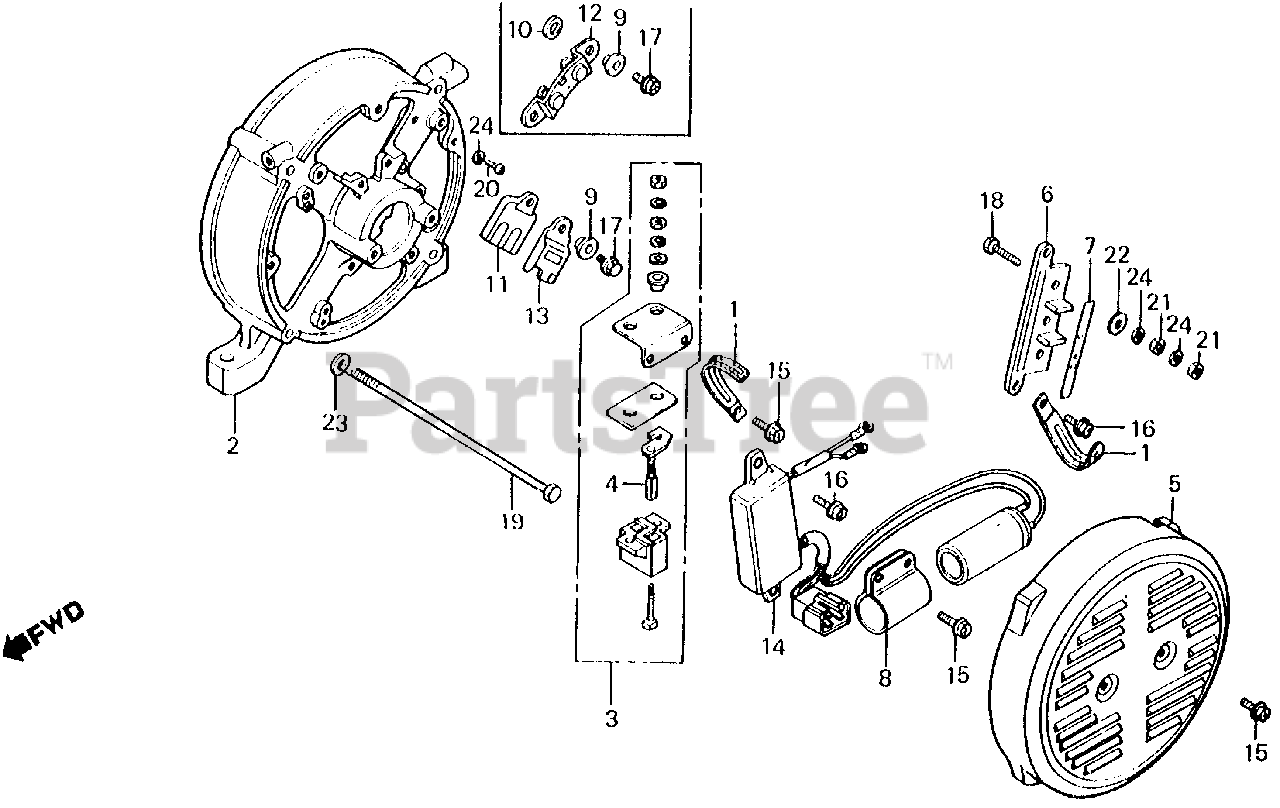

REAR HOUSING + D.C. DIODE Parts Diagram

  • Title

1

Honda 30564-871-003

CLAMP A, WIRE

$11.99

$

Usually ships in 3-6 days

0

2

Honda 311A0-898-003H

HOUSING, RR. *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 31106-868-158

HOLDER, BRUSH

$64.99

$

Usually ships in 3-6 days

0

4

Honda 31107-868-158

BRUSH

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31113-898-003H

COVER, ALTERNATOR END *R8* (BRIGHT RED)

$58.99

$

Usually ships in 3-6 days

0

6

Honda 31118-898-003

TERMINAL, VOLT CHANGE

$

$

Not available

7

Honda 31119-898-003

MARK, VOLT

$

$

Not available

8

Honda 31427-877-003

HOLDER, CONDENSER

$9.49

$

Usually ships in 3-6 days

0

9

Honda 31706-880-000

BUSH, INSULATING

Note: Use up to Frame SN 1048935.

$8.49

$

Usually ships in 3-6 days

0

9

Honda 31706-880-000

BUSH, INSULATING

Note: Use from Frame SN 1048936.

$8.49

$

Usually ships in 3-6 days

0

10

Honda 31707-880-000

WASHER, INSULATING

Note: Use up to Frame SN 1048935.

$

$

Not available

11

Honda 31707-899-003

INSULATOR, DIODE

Note: Use from Frame SN 1048936.

$18.99

$

Usually ships in 3-6 days

0

12

Honda 31710-892-003

DIODE ASSY., D.C.

Note: Use up to Frame SN 1048935.

$

$

Currently unavailable

13

Honda 31720-899-003

DIODE, D.C.

Note: Use from Frame SN 1048936.

$

$

Not available

14

Honda 32350-898-003

REGULATOR ASSY., AUTOMATIC VOLTAGE

$

$

Not available

15

Honda 90031-875-003

SCREW, TAPPING (5X12)

$2.99

$

In Stock, only 4 left!

0

16

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90033-875-003

SCREW, TAPPING (5X16)

Note: Use up to Frame SN 1048935.

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90033-875-003

SCREW, TAPPING (5X16)

Note: Use from Frame SN 1048936.

$3.49

$

Usually ships in 3-6 days

0

18

Honda 92000-05020-3J

SEE PART DETAILS - SUP; BOLT, HEX. (5X20)

$

$

Currently unavailable

19

Honda 92020-06130-0H

BOLT, HEX. (6X130) (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94002-05390-0S

NUT, HEX. (5MM)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

23

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

24

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
