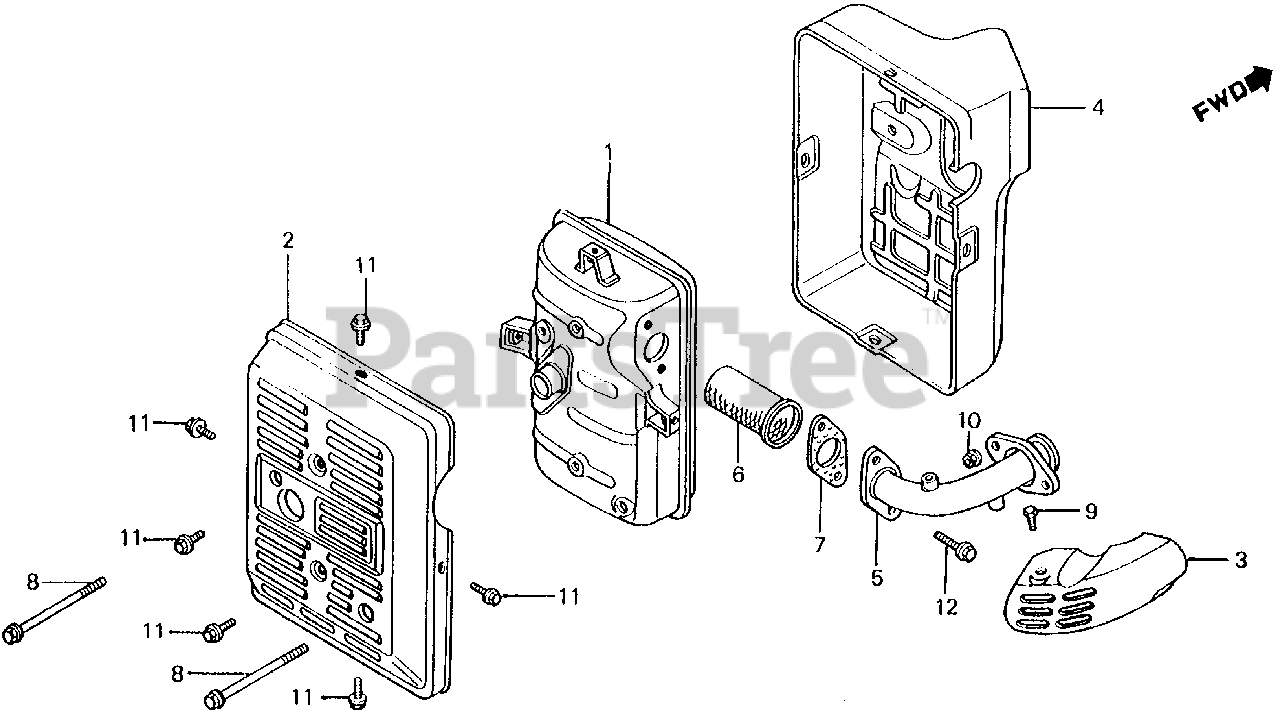

EM1800 A (GE200) - Honda Generator, Made in Japan (SN: GE200-1000001 - GE200-9999999) MUFFLER Parts Diagram

Generator, Made in Japan

MUFFLER Parts Diagram

  • Title

1

Honda 18310-898-640

MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 18320-898-000

PROTECTOR, MUFFLER (OUTER)

$

$

Currently unavailable

3

Honda 18323-898-000

PROTECTOR, EX. PIPE

$

$

Not available

4

Honda 18325-898-000

PROTECTOR, MUFFLER (INNER)

$

$

Not available

5

Honda 18330-898-000

PIPE, EX.

$

$

Currently unavailable

6

Honda 18355-898-630

ARRESTER, SPARK

$23.99

$

Usually ships in 3-6 days

0

7

Honda 18381-883-800

GASKET, MUFFLER

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90105-898-000

BOLT, FLANGE (6X103)

$

$

Not available

9

Honda 93101-06008-0A

BOLT, HEX. (6X8)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

11

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

12

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0
