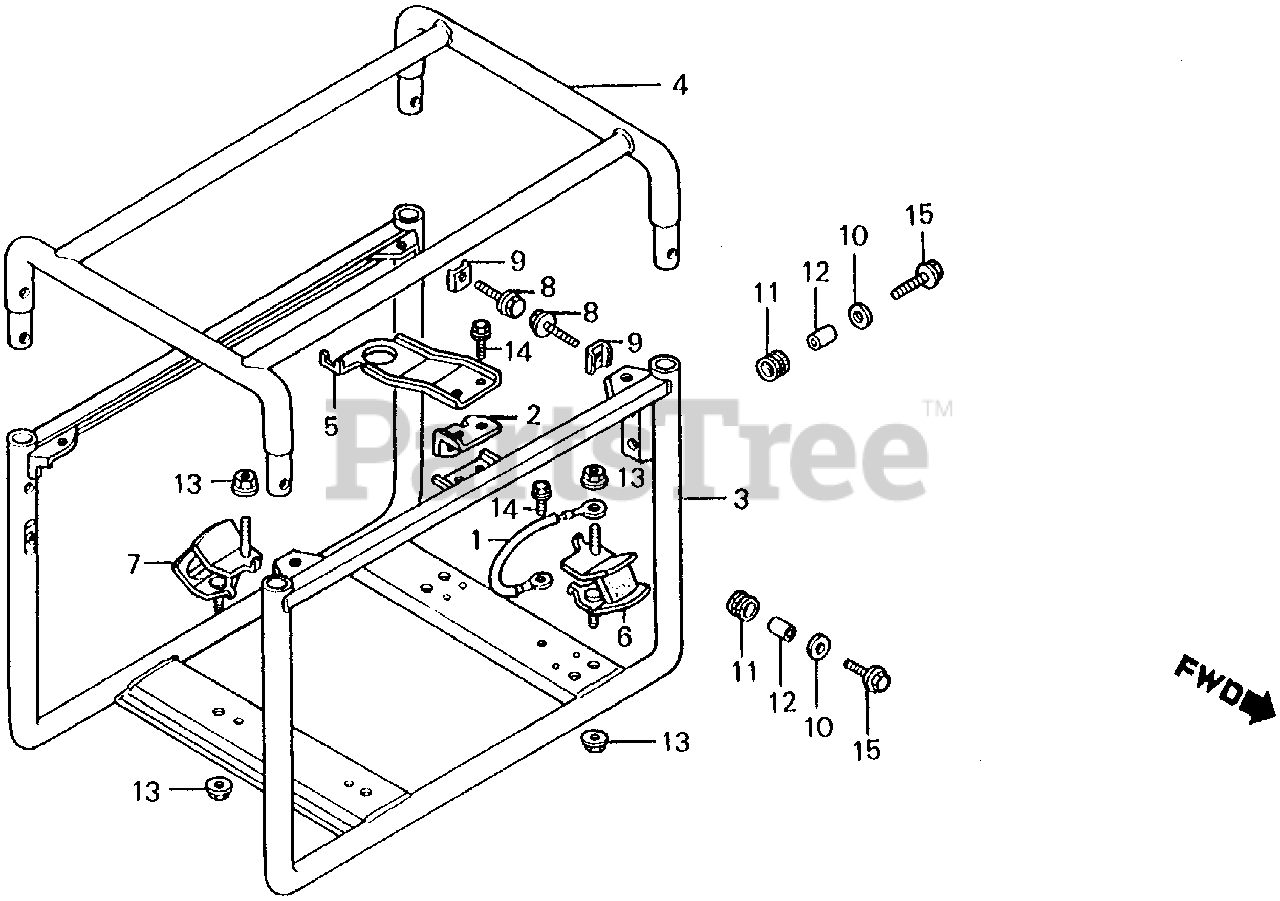

EM1600 A (GE200) - Honda Generator, Made in Japan (SN: GE200-1000001 - GE200-9999999) LOWER FRAME + UPPER FRAME Parts Diagram

Generator, Made in Japan

LOWER FRAME + UPPER FRAME Parts Diagram

  • Title

1

Honda 32610-898-000

CABLE, GROUND

$14.99

$

Usually ships in 3-6 days

0

2

Honda 39101-898-700

BRACKET, CONTROL BOX MOUNTING

$

$

Not available

3

Honda 50310-897-720

FRAME (LOWER)

$

$

Not available

4

Honda 50350-898-000

FRAME (UPPER)

$

$

Currently unavailable

5

Honda 50361-898-000

STAY, BUMP STOP

$

$

Not available

6

Honda 68325-898-000

RUBBER, FR. (LOWER)

$

$

Not available

7

Honda 68327-898-000

RUBBER, RR. (LOWER)

$50.99

$

Usually ships in 3-6 days

0

8

Honda 90015-898-000

BOLT, FLANGE (8X20)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, only 2 left!

0

10

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

11

Honda 90852-898-000

RUBBER, CONTROL BOX

$5.49

$

In Stock, only 2 left!

0

12

Honda 91552-898-000

COLLAR, CONTROL BOX

$5.49

$

Usually ships in 3-6 days

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 8

0

15

Honda 95700-06018-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18)
(Superseded to 95701-06018-00)

$2.49

$

In Stock, Qty 5

0

15

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 5

0
