ELT 2240RD (2690785) - Snapper 40" Lawn Tractor, 22hp Lift Group - Manual Parts Diagram

40" Lawn Tractor, 22hp

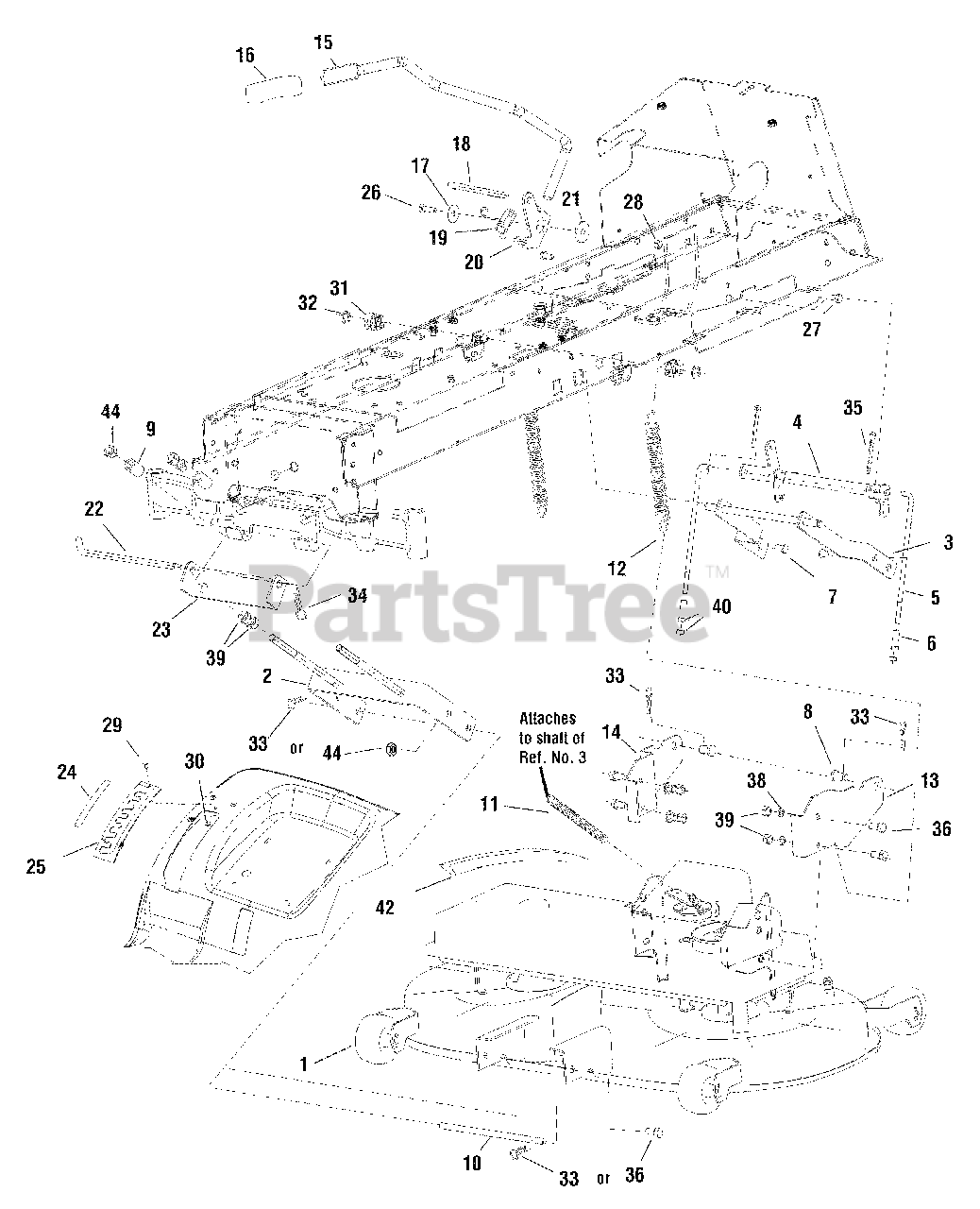

Lift Group - Manual Parts Diagram

  • Title
1

Snapper 1735923

MOWING MECHANISM

$

$

Not available

2

Snapper 1735902

HINGE, Front

$

$

Not available

3

Snapper 1735848

ARM, Lift

$

$

Not available

4

Snapper 1735958

ROD, Lift

$

$

Not available

5

Snapper 1735979

TIE ROD, Lift 0-8040-311

$

$

Not available

6

Snapper 1735893

DISTANCE, Lift 0-9521-289

$

$

Not available

7

Snapper 1735945

PIN, 0-9016-463

$

$

Not available

8

Snapper 1735947

PIN, Mowing 1-9310-417

$

$

Not available

9

Snapper 1735895

DISTANCE, Lift Hitch 0-9521-290

$

$

Not available

10

Snapper 1735944

STUD

Note: Used on models before serial number 2013642213)

$

$

Currently unavailable

11

Snapper 1735825

SPRING, 0-9746-460

$

$

Currently unavailable

12

Snapper 1735967

SPRING, 0-9746-483

$

$

Not available

13

Snapper 1735898

HANDLE, Extend, Left

$

$

Not available

14

Snapper 1735899

HANDLE, Extend, Right

$

$

Not available

15

Snapper 1735956

ROD, Lift

$

$

Not available

16

Snapper 1722302

GRIP, Black
(Superseded to 1722302SM)

$8.49

$

In Stock, Qty 10

0

17

Snapper 1960044

WASHER, 5/16
(Superseded to 1960044SM)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 1727954

ROD, Lift 3/8 dia
(Superseded to 1727954SM)

$6.99

$

Usually ships in 2-12 days

0

19

Snapper 1729652

SPRING, Torsion
(Superseded to 1729652SM)

$6.49

$

In Stock, only 1 left!

0

20

Snapper 1728990

CLEVIS, Lift
(Superseded to 1728990ASM)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 2 left!

0

22

Snapper 1731414

PIN, Hitch
(Superseded to 1731414SM)

$14.99

$

Usually ships in 2-12 days

0

23

Snapper 1730221A

HANGER, Front
(Superseded to 1730221ASM)

$12.99

$

In Stock, only 2 left!

0

24

Snapper 1730264

DECAL, Height of Cut
(Superseded to 1730264SM)

$8.99

$

Usually ships in 2-12 days

0

25

Snapper 1727985

QUADRANT, Lift Height
(Superseded to 1727985BMYP)

$12.99

$

Usually ships in 2-12 days

0

26

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

27

Snapper 1930601

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

28

Snapper 1931277

NUT, Hex Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

29

Snapper 1960252

BOLT, Carriage, 1/4-20 x 5/8
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

30

Snapper 1930641

NUT, Hex Flange Whiz, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 1735881

BUSHING, 0-9462-202

$

$

Not available

32

Snapper 1735920

LOCK RING, 12

$

$

Not available

33

Snapper 1735965

PIN, Flexible 0-9245-240

Note: Used on models before serial number 2013642213)

$

$

Currently unavailable

34

Snapper 2176012

CLIP, Pin Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

35

Snapper 1735964

SPINDLE

$

$

Not available

36

Snapper 1751847

BOLT, M12 x 30

Note: Used on models after serial number 2013642213)

$

$

Not available

38

Snapper 1735992

WASHER, 12

$

$

Not available

39

Snapper 1735927

NUT, M12

Note: (Use with Washer Ref. 38)

$

$

Not available

39

Snapper 1751848

NUT, Flange Lock, M12

Note: (Washer Ref. 38 Not Required)

$

$

Not available

40

Snapper 1735925

NUT, M10

$

$

Not available

42

Snapper 1735986

V-BELT, Li, 17 x 1200

$

$

Not available

44

Snapper 1735796

NUT, M12

Note: Used on models after serial number 2013642213)

$

$

Not available
