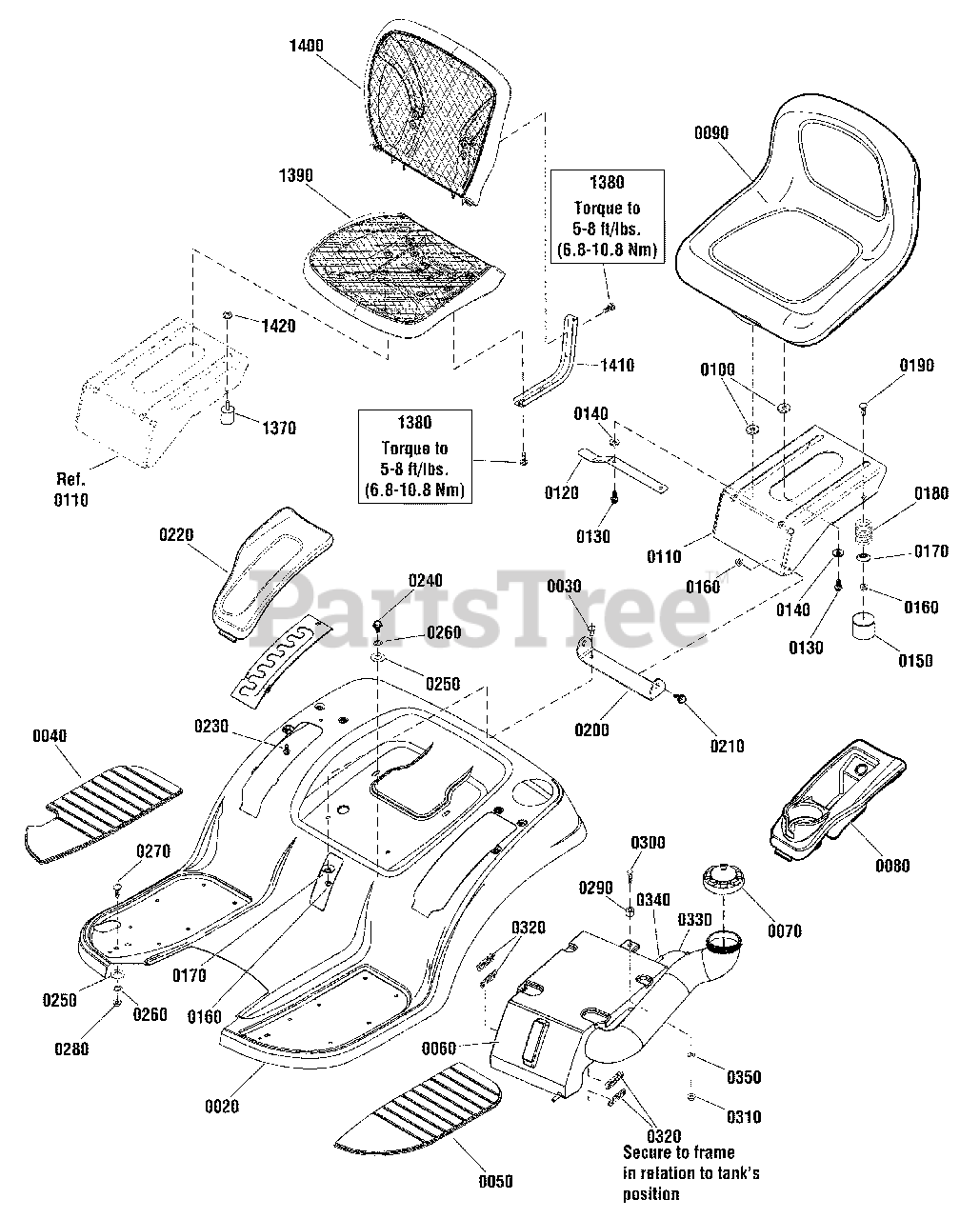

ELT 2040RDF (2691071) - Snapper 40" Lawn Tractor, 20hp Seat Deck & Fuel Group Parts Diagram

40" Lawn Tractor, 20hp

Seat Deck & Fuel Group Parts Diagram

  • Title
0020

Snapper 1735259D

DECK, Seat With Foot Rests

$

$

Currently unavailable

0030

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0040

Snapper 1728007

PAD, Footrest, Right
(Superseded to 1728007SM)

$20.99

$

In Stock, only 1 left!

0

0050

Snapper 1728006

PAD, Footrest, Left
(Superseded to 1728006SM)

$21.99

$

In Stock, only 2 left!

0

0060

Snapper 1735976

TANK, Fuel 9-2770-244

$

$

Not available

0070

Snapper 1715917

CAP, Fuel
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

0080

Snapper 1739535

POD, Cup Holder, Left
(Superseded to 1739535YP)

$32.99

$

Usually ships in 2-12 days

0

0090

Snapper 1754213

SEAT
(Superseded to 1754213YP)

$372.99

$

Usually ships in 2-12 days

0

0100

Snapper 1731300

SPACER
(Superseded to 1731300SM)

$5.49

$

Usually ships in 2-12 days

0

0110

Snapper 1727265

SUPPORT, Seat
(Superseded to 1727265SM)

$102.99

$

Usually ships in 2-12 days

0

0120

Snapper 1727268

LATCH, Seat
(Superseded to 1727268SM)

$8.99

$

Usually ships in 2-12 days

0

0130

Snapper 1960667

SCREW, Flange 5/16-18 x 1
(Superseded to 1960667SM)

$4.99

$

Usually ships in 2-12 days

0

0140

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0

0150

Snapper 1704724

COVER, Spring
(Superseded to 1704724SM)

$7.99

$

In Stock, only 2 left!

0

0160

Snapper 1960686

NUT, Hex Flange, 5/16-18
(Superseded to 703115)

Note: (Qty 4 used with Mesh Seat)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1709256

WASHER, Spring
(Superseded to 1709256SM)

Note: (Qty 2 used with Mesh Seat)

$5.99

$

In Stock, only 1 left!

0

0180

Snapper 1704728

SPRING, Compression
(Superseded to 1704728SM)

Note: (Use with Standard Seat)

$9.99

$

In Stock, only 2 left!

0

0190

Snapper 1960282

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

Note: (Use with Standard Seat)

$3.99

$

In Stock, Qty 20+

0

0200

Snapper 1727266

PIVOT, Seat
(Superseded to 1687866)

$74.99

$

Usually ships in 2-12 days

0

0210

Snapper 1729576

BOLT, Shoulder, 5/16-18 x 1/8
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0220

Snapper 1739537

POD, Lift, Right
(Superseded to 1739537YP)

$31.99

$

Usually ships in 2-12 days

0

0230

Snapper 1960536

SCREW, Hex, 1/4-1/2
(Superseded to 1960536SM)

$4.99

$

Usually ships in 2-12 days

0

0240

Snapper 1735854

BOLT, M8 x 16

$

$

Not available

0250

Snapper 1735989

WASHER, 8.4

$

$

Not available

0260

Snapper 1736000

WASHER, 8

$

$

Not available

0270

Snapper 1735869

BOLT, M8 x 20

$

$

Not available

0280

Snapper 1735937

NUT, M8

$

$

Not available

0290

Snapper 1735894

DISTANCE, Lift 0-9521-289

$

$

Not available

0300

Snapper 1735867

BOLT, M6 x 30

$

$

Not available

0310

Snapper 1735932

NUT, M6

$

$

Not available

0320

Snapper 1735878

BRAID, Steel Insert 0-9634-219

$

$

Not available

0330

Snapper 1735914

HOSE, Air Escape 1-9920-248

$

$

Not available

0340

Snapper 1736993

CLIP, UM 5008

$

$

Not available

0350

Snapper 1735999

WASHER, 6.6

$

$

Not available

1370

Snapper 1739934

BUMPER, Rubber
(Superseded to 1739934YP)

Note: (Use with Mesh Seat)

$10.99

$

Usually ships in 2-12 days

0

1380

Snapper 1930591

SCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

Note: (Use with Mesh Seat)

$5.49

$

In Stock, Qty 14

0

1390

Snapper 1738013

SEAT, Mesh, Bottom
(Superseded to 1738013YP)

$225.99

$

In Stock, only 1 left!

0

1400

Snapper 1738014

SEAT, Mesh, Back
(Superseded to 1738014YP)

$262.99

$

In Stock, only 1 left!

0

1410

Snapper 1737848A

SUPPORT, Mesh Seat
(Superseded to 1737848AYP)

Note: (Use with Mesh Seat)

$29.99

$

Usually ships in 2-12 days

0

1420

Snapper 1931277

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

Note: (Use with Mesh Seat)

$5.49

$

In Stock, Qty 20+

0
