ELT 2040RD (2691070) - Snapper 40" Lawn Tractor, 20hp Collector Group Parts Diagram

40" Lawn Tractor, 20hp

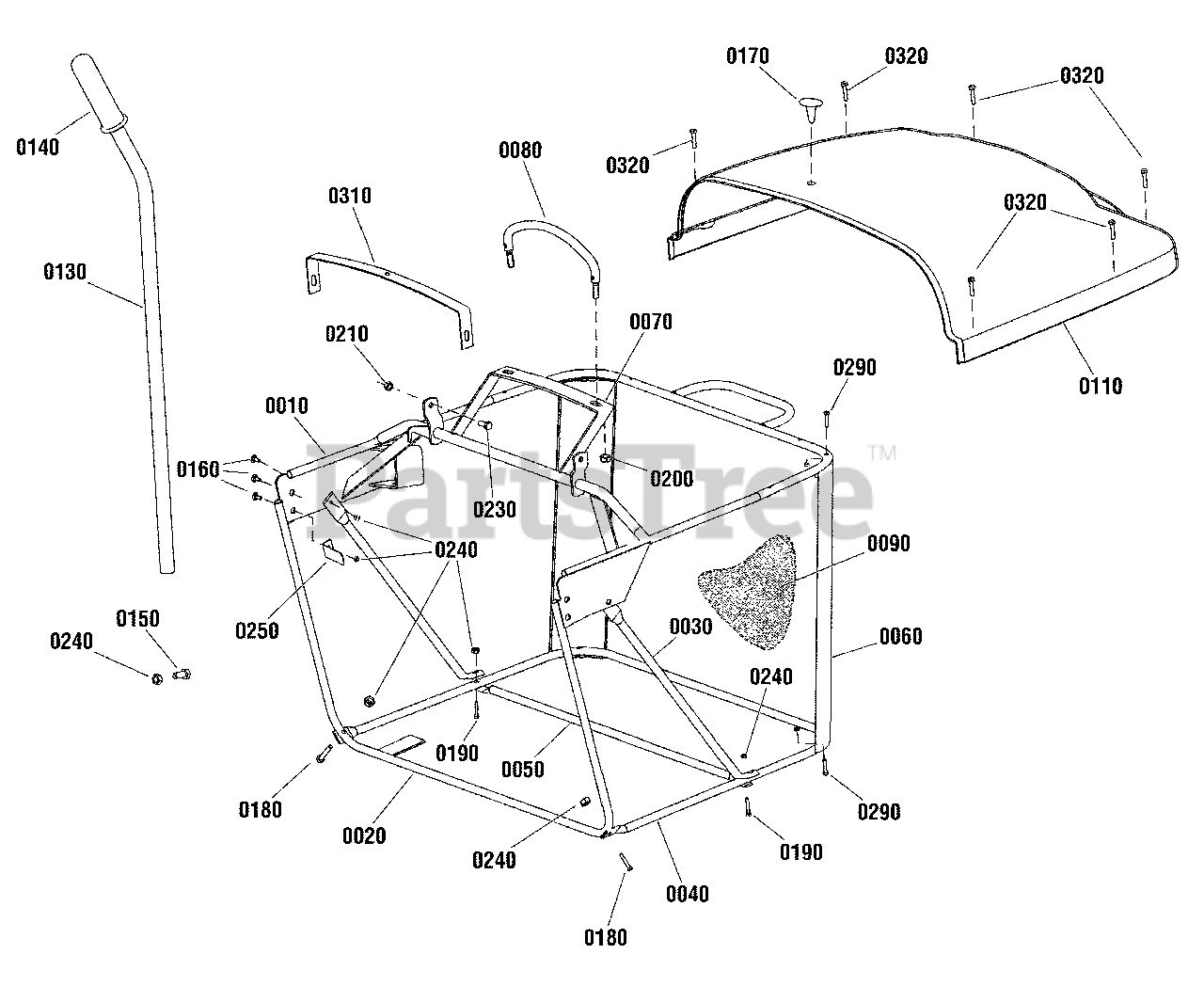

Collector Group Parts Diagram

  • Title
0010

Snapper 1735897

FRAME, Top

$

$

Not available

0020

Snapper 1736463

TUBE, Front

$

$

Not available

0030

$

$

Not available

0040

Snapper 1735984

TUBE, Bottom

$

$

Not available

0050

Snapper 1735953

TUBE, Connecting

$

$

Not available

0060

Snapper 1736236

REINFORCEMENT, Left

$

$

Not available

0070

Snapper 1735954

REINFORCEMENT, Right

$

$

Not available

0080

Snapper 1751833

HANDLE, Full

$

$

Not available

0090

Snapper 1735885

COAT, Fabric

$

$

Not available

0110

Snapper 1735982

TOP, Collector

$

$

Currently unavailable

0130

Snapper 1735916

LEVER, Dumping

$

$

Not available

0140

Snapper 1735901

HANDLE, Rubber

$

$

Not available

0150

Snapper 1735859

BOLT, M5 x 12

$

$

Not available

0160

Snapper 1735860

BOLT, M5 x 16

$

$

Not available

0170

Snapper 1735948

PLUG, Plastic

$

$

Not available

0180

Snapper 1735863

BOLT, M5 x 30

$

$

Not available

0190

Snapper 1735864

BOLT, M5 x 35

$

$

Not available

0200

Snapper 1751830

NUT, Flange Lock, M10

$

$

Not available

0210

Snapper 1751829

NUT, Flange Lock, M8

$

$

Not available

0230

Snapper 1735868

SCREW, M8 x 40

$

$

Not available

0240

Snapper 1751831

NUT, M5

$

$

Not available

0250

Snapper 1751832

SPRING, Flat

$

$

Not available

0290

Snapper 1735862

BOLT, M5 x 25

$

$

Not available

0310

Snapper 1735955

REINFORCEMENT, Top

$

$

Not available

0320

Snapper 1736416

SCREW, 6.3 x 32

$

$

Not available
