ELT 19540RD (2690784) - Snapper 40" Lawn Tractor, 19.5hp Controls Group Parts Diagram

40" Lawn Tractor, 19.5hp

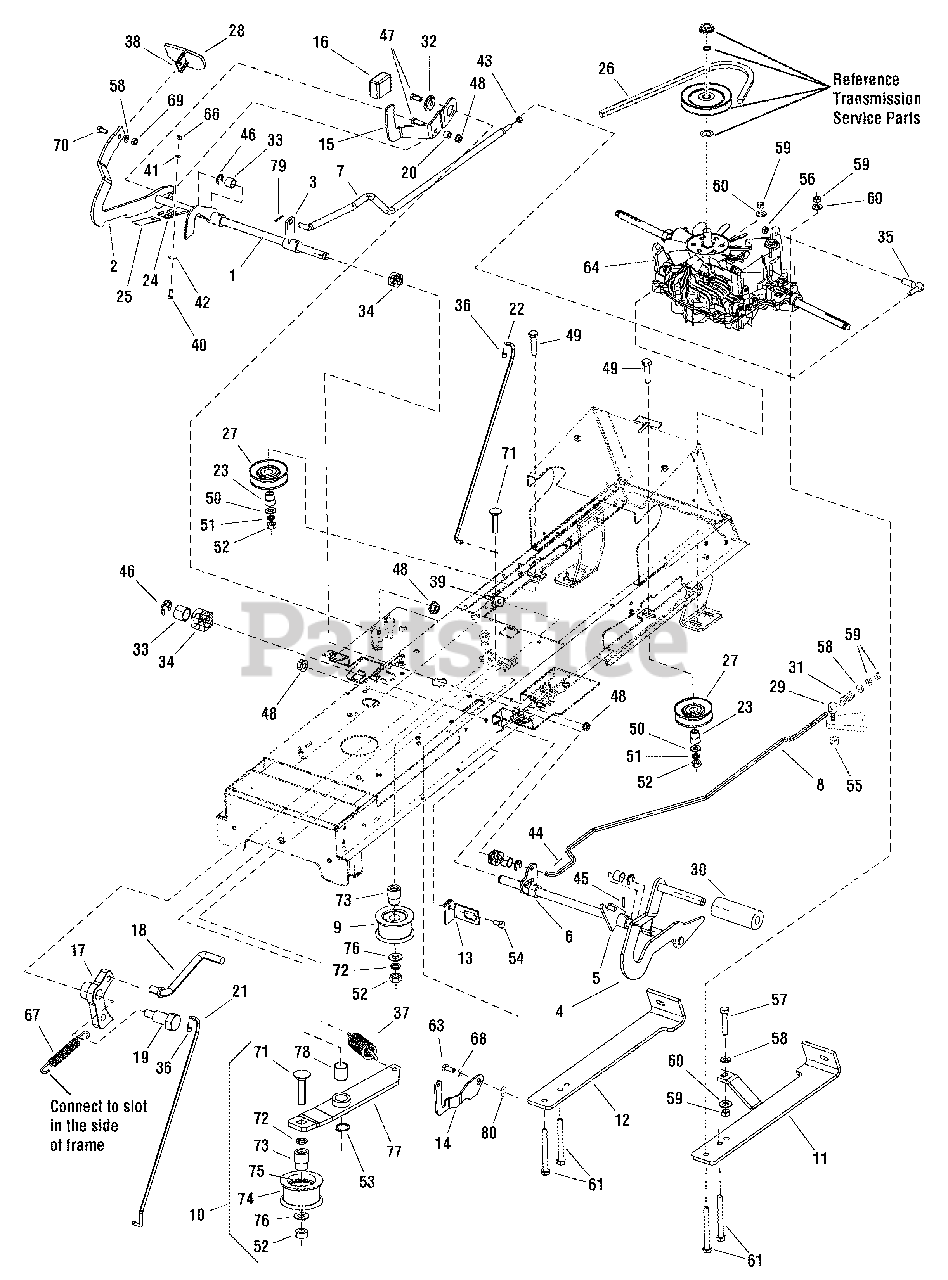

Controls Group Parts Diagram

  • Title

1

Snapper 1735940

PEDAL, Forward

$

$

Not available

2

Snapper 1735952

RATCHET

$

$

Not available

3

Snapper 1735847

ARM

$

$

Not available

4

Snapper 1735941

PEDAL, Brake

$

$

Not available

5

Snapper 1735918

LEVER, Parking Brake

$

$

Not available

6

Snapper 1735917

LEVER, Brake

$

$

Not available

7

Snapper 1735959

ROD, Traveling

$

$

Not available

8

Snapper 1735957

ROD, Brake

$

$

Not available

9

Snapper 1751841

PULLEY, Tensioning

$

$

Not available

10

Snapper 1735950

PULLEY, Idler

Note: (Incl. Ref. Nos. 52, 71, 72, 73, 74, 75, 76, 77, & 78)

$

$

Not available

11

Snapper 1735910

HOLDER, Left

$

$

Not available

12

Snapper 1735911

HOLDER, Right

$

$

Not available

13

Snapper 1735974

SUPPORT, Switch

$

$

Not available

14

Snapper 1735595A

LATCH, Brake Lock
(Superseded to 1735595ASM)

$10.99

$

Usually ships in 2-12 days

0

15

Snapper 1727246

PEDAL, Reverse
(Superseded to 1727246SM)

$20.99

$

Usually ships in 2-12 days

0

16

Snapper 1727259

PAD, Foot Pedal
(Superseded to 1727259SM)

$8.49

$

Usually ships in 2-12 days

0

17

Snapper 1727897

LATCH, Cruise
(Superseded to 1727897SM)

$9.99

$

Usually ships in 2-12 days

0

18

Snapper 1727899

ROD, Cruise 5/16 Dia. x 2.83"
(Superseded to 1727899SM)

$7.49

$

Usually ships in 2-12 days

0

19

Snapper 1728976

BOLT, Shoulder, 5/16-18 x 1-5/8
(Superseded to 1728976SM)

$6.49

$

In Stock, only 2 left!

0

20

Snapper 1728024

SPACER, Foot Pedal
(Superseded to 1728024SM)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 1727898

ROD, Cruise Latch, Upper
(Superseded to 1738760YP)

$16.99

$

Usually ships in 2-12 days

0

22

Snapper 1727267

ROD, 15.95 lg
(Superseded to 1727267SM)

$15.99

$

Usually ships in 2-12 days

0

23

Snapper 1735880

BUSHING, 0-9421-418

$

$

Not available

24

Snapper 1736001

WASHER, Lock

$

$

Not available

25

Snapper 1735972

SPRING, Flat 0-9740-221

$

$

Not available

26

Snapper 1735987

V-BELT, Li, BBT, 13 x 2580

$

$

Currently unavailable

27

Snapper 1735949

PULLEY, Compensa C-00237/1

$

$

Not available

28

Snapper 1735942

PEDAL, Forward Rubber

$

$

Not available

29

Snapper 1735853

BOLT, 0-9016-447

$

$

Not available

30

Snapper 1727261

PEDAL, Brake Pad
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

31

Snapper 1735968

SPRING, TLZ 250.150.0530 Yellow

$

$

Not available

32

Snapper 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 1 left!

0

33

Snapper 1735896

DISTANCE, Pedal 0-9521-288

$

$

Not available

34

Snapper 1735881

BUSHING, 0-9462-202

$

$

Not available

35

Snapper 1735850

BALL JOINT, CS 13 DIN 71802 M8, Silver

$

$

Not available

36

Snapper 1728111

CLIP, Linkage .250 dia
(Superseded to 1728111SM)

$6.99

$

In Stock, only 1 left!

0

37

Snapper 1735969

SPRING, TZ 2x14x62, Yellow

$

$

Not available

38

Snapper 1735943

PEDAL, Forward, Top

$

$

Not available

39

Snapper 1735875

BOLT, Eye M6x80 BN1006

$

$

Not available

40

Snapper 1735866

BOLT, M6 x 16

$

$

Not available

41

Snapper 1735998

WASHER, 6.4

$

$

Not available

42

Snapper 1751842

WASHER, 6

$

$

Not available

44

Snapper 1735963

SPINDLE, 2 x 20

$

$

Not available

43

Snapper 1735936

NUT, M8

$

$

Not available

45

Snapper 1735946

PIN, Flex. 5 x 25

$

$

Not available

46

Snapper 1735920

LOCK RING, 12

$

$

Not available

47

Snapper 1960223

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

48

Snapper 1931277

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

49

Snapper 1735855

BOLT, M10 x 40

$

$

Not available

50

Snapper 1735990

WASHER, 10.5

$

$

Not available

51

Snapper 1735991

WASHER, 10.0

$

$

Not available

52

Snapper 1735925

NUT, M10

$

$

Not available

53

Snapper 1735921

LOCK RING, 16

$

$

Not available

54

Snapper 1930601

SCREW, Tap, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

55

Snapper 1735924

NUT, M10

$

$

Not available

56

Snapper 1735938

NUT, M8 DIN 6923 8 Yellow, Tooth

$

$

Not available

57

Snapper 1735873

BOLT, M8 x 45

$

$

Not available

58

Snapper 1735989

WASHER, 8.4

$

$

Not available

59

Snapper 1735934

NUT, M8

$

$

Not available

60

Snapper 1736000

WASHER, 8

$

$

Not available

61

Snapper 1735874

BOLT, M8 x 75

$

$

Not available

63

Snapper 1729576

BOLT, Shoulder 5/16-18 x 1-3/16
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

64

Snapper 1729589

TRANSMISSION, Tuff Torq, K-46BL
(Superseded to 1729589SM)

Note: (Early Models)

$1253.99

$

Usually ships in 2-12 days

0

64

Snapper 1735476

TRANSMISSION, Tuff Torq, K-46CW

Note: (Late Models)

$

$

Not available

66

Snapper 1735933

NUT, M6

$

$

Not available

67

Snapper 2159181

SPRING
(Superseded to 2159181SM)

$7.49

$

In Stock, only 1 left!

0

68

Snapper 1735994

WASHER, 14x26/0.2

$

$

Not available

69

Snapper 1735935

NUT, M8

$

$

Not available

70

Snapper 1751843

BOLT, M8 x 20

$

$

Not available

71

Snapper 1736455

SCREW, M10 x 45

$

$

Currently unavailable

72

Snapper 1736456

LOCK RING, 40

$

$

Not available

73

Snapper 1751840

BUSHING, Pulley, Tension

$

$

Not available

74

Snapper 1736458

PULLEY

$

$

Not available

75

Snapper 1736459

BALL BEARING, Pulley, 62032RS

$

$

Not available

76

Snapper 1751845

WASHER, 11

$

$

Not available

77

Snapper 1736461

ARM, Pulley, Tension

$

$

Not available

78

Snapper 1736462

BEARING, Slide

$

$

Not available

79

Snapper 1735964

SPINDLE, 3.2 x 25

$

$

Not available

80

Snapper 1739135

WASHER, 16 x 22 x 1

$

$

Not available
