ELT 19540RD (2690784) - Snapper 40" Lawn Tractor, 19.5hp Back Plate Group - 19.5HP & 22HP Parts Diagram

40" Lawn Tractor, 19.5hp

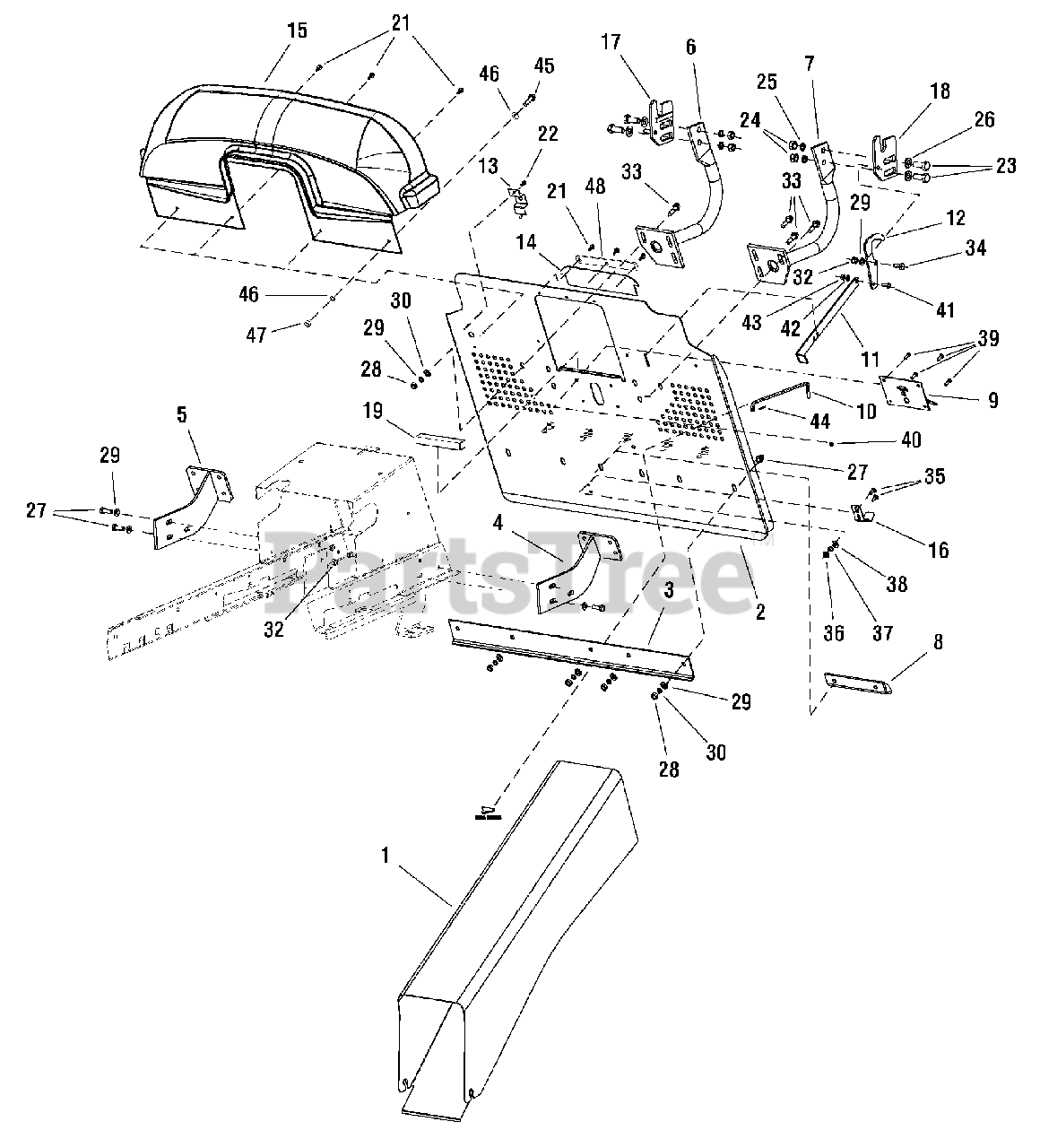

Back Plate Group - 19.5HP & 22HP Parts Diagram

  • Title

$

$

Not available

2

Snapper 1735849YP

BACK PLATE

$

$

Not available

$

$

Not available

4

Snapper 1735906YP

HOLDER, Back Plate, L.H.

$

$

Not available

5

Snapper 1735907YP

HOLDER, Back Plate, R.H.

$

$

Not available

6

Snapper 1735908YP

HOLDER, Collector, R.H.

$

$

Not available

7

Snapper 1735909YP

HOLDER, Collector, L.H.

$

$

Not available

$

$

Not available

9

Snapper 1735975YP

SWITCH, Full Collector

$

$

Not available

10

Snapper 1735977YP

TIE ROD, Bypass 0-8045-260

$

$

Not available

11

Snapper 1735978YP

LATCH, Tie Rod

$

$

Not available

$

$

Not available

13

Snapper 1735887YP

COVER, Switch

$

$

Not available

14

Snapper 1735939YP

PAD, Rubber 1-1332-332

$

$

Not available

15

Snapper 1735983YP

COVER, Plastic

$

$

Not available

16

Snapper 1735970YP

SPRING COLLECTOR, Lock

$

$

Not available

17

Snapper 1735904YP

HOLDER, Adjustable, Right

$

$

Not available

18

Snapper 1735905YP

HOLDER, Adjustable, Left

$

$

Not available

19

Snapper 1736998YP

RUBBER EDGE

$

$

Not available

21

Snapper 1735961YP

SCREW, ST 5.5 x 19 DIN 7504-K BN1880

$

$

Not available

22

Snapper 1735960YP

SCREW, ST 4.2 x 9.5 DIN 7504-K BN1880

$

$

Not available

23

Snapper 1735857YP

BOLT , M12 x 30

$

$

Not available

24

$

$

Not available

25

Snapper 1735993YP

WASHER, 13

$

$

Not available

26

Snapper 1735992YP

WASHER, 12

$

$

Not available

27

Snapper 1735871YP

BOLT, M8 x 25 DIN 6921 8.8

$

$

Not available

28

$

$

Not available

29

Snapper 1735989YP

WASHER, 8.4

$

$

Not available

30

Snapper 1736000YP

WASHER, 8

$

$

Not available

32

$

$

Not available

33

Snapper 1735872YP

BOLT, M8 x 30 DIN 6921 8.8

$

$

Not available

34

Snapper 1735868YP

BOLT, M8 x 40

$

$

Not available

35

Snapper 1735860YP

BOLT, M5 x 16

$

$

Not available

36

$

$

Not available

37

Snapper 1735997YP

WASHER, 5.3

$

$

Not available

38

Snapper 1735996YP

WASHER, 5

$

$

Not available

39

Snapper 1735861YP

BOLT, M5 x 16

$

$

Not available

40

$

$

Not available

41

Snapper 1735865YP

BOLT, M6 x 16

$

$

Not available

42

Snapper 1735998YP

WASHER, 6.4

$

$

Not available

43

$

$

Not available

44

Snapper 1735963YP

SPINDLE, 2 x 20

$

$

Not available

45

Snapper 1735858YP

BOLT, M4 x 16

$

$

Not available

46

Snapper 1735995YP

WASHER, 4.3

$

$

Not available

47

$

$

Not available
