ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp Transmission SERVICE PARTS - Hydro Gear 324-0610 Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

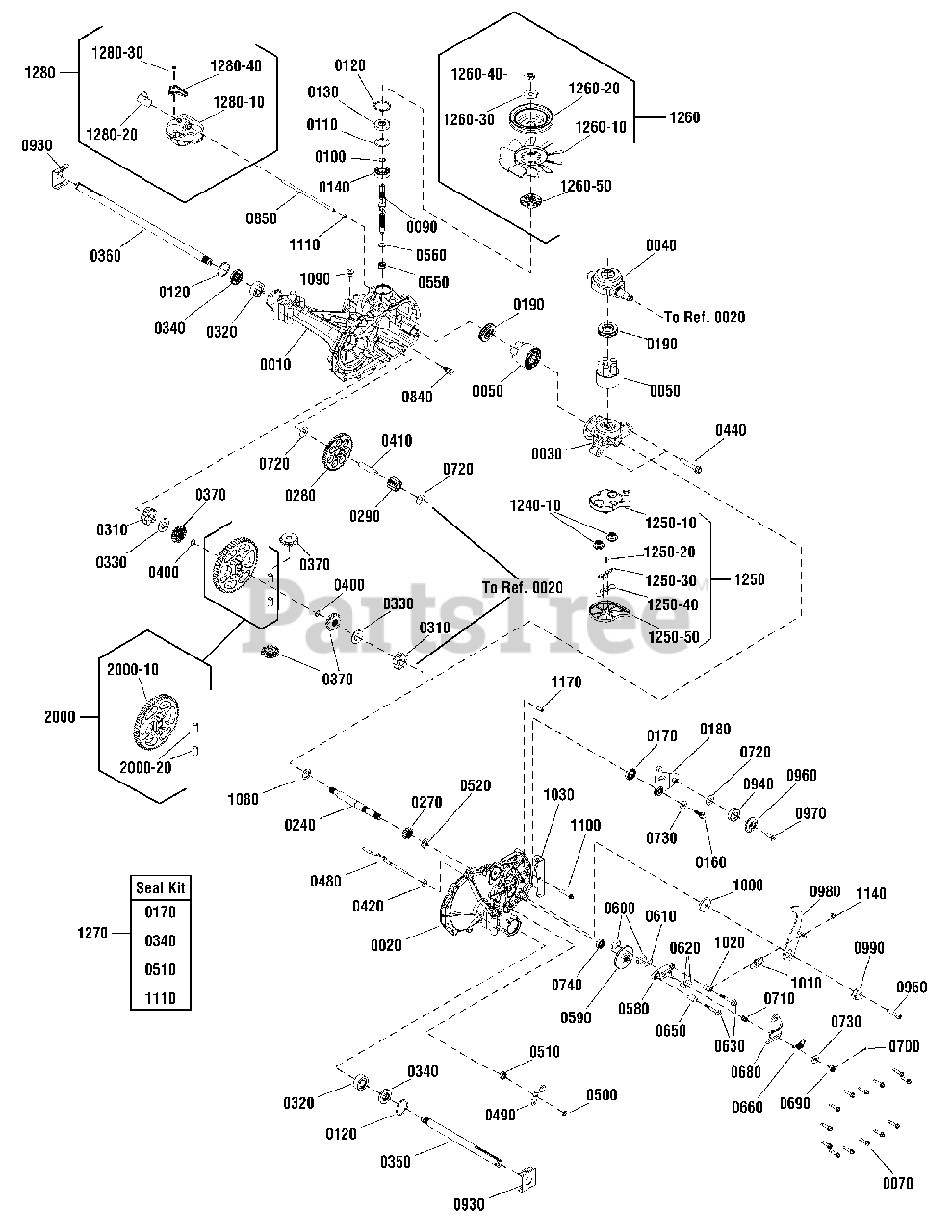

Transmission SERVICE PARTS - Hydro Gear 324-0610 Parts Diagram

  • Title

0010

-----

* MAIN HOUSING ASSEMBLY

$

$

Not available

0020

-----

* SIDE HOUSING ASSEMBLY

$

$

Not available

0030

-----

* CENTERSECTION ASSEMBLY

$

$

Not available

0040

-----

* TRUNNION, Swashplate

$

$

Not available

0050

-----

* BLOCK ASSEMBLY

$

$

Not available

0060

-----

* SEALANT, 10.1 oz.

Note: (Not Illustrated)

$

$

Not available

0070

-----

* SCREW, Hex Washer, 1/4-20 x 1-1/8

$

$

Not available

0090

Snapper 1752461YP

SHAFT, Input

$111.99

$

Usually ships in 2-12 days

0

0100

Snapper 1715270SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

0110

Snapper 1752462YP

WASHER, Flat, 1.23 x 1.57 x .04

$5.49

$

Usually ships in 2-12 days

0

0120

Snapper 1752463YP

RING, Retaining
(Superseded to 5101026X4SM)

$12.99

$

Usually ships in 2-12 days

0

0130

Snapper 1752464YP

SEAL, LIP 17 x 40 x 12

$9.99

$

Usually ships in 2-12 days

0

0140

Snapper 1752465YP

BEARING, Ball 17 x 40 x 12

$17.99

$

Usually ships in 2-12 days

0

0160

-----

* SCREW, Hex Flange, With Patch, 5/16-24 x 15/16

$

$

Not available

0170

-----

* SEAL, Lip, 18 x 32 x 7

Note: (Not a serviceable part, order kit # 1270)

$

$

Not available

0180

-----

* ARM, Control

$

$

Not available

0190

Snapper 1715144SM

* BEARING, Thrust, 30 x 52 x 13

$27.99

$

Usually ships in 2-12 days

0

0240

-----

* SHAFT, Motor

$

$

Not available

0270

-----

* GEAR, Pinion, 12T

$

$

Not available

0280

-----

* GEAR, 10T/49T

$

$

Not available

0290

-----

* GEAR, Jackshaft, 10T

$

$

Not available

0310

-----

* BUSHING, Sleeve (Inboard)

$

$

Not available

0320

-----

* BUSHING, Sleeve, 3/4 x 1-1.571 x 5/8

$

$

Not available

0330

-----

* WASHER, Flat, 3/4 x 1-1/2 x 7/64

$

$

Not available

0340

-----

* SEAL, Lip, 3/4 x 1.577 x 1/4

Note: (Not a serviceable part, order kit # 1270)

$

$

Not available

0350

-----

* SHAFT, Axle, 3/4 x 11.39 (Key, RH)

$

$

Not available

0360

-----

* SHAFT, AXLE, 3/4 x 16.99 (Key, LH)

$

$

Not available

0370

-----

* KIT, Miter Gear

$

$

Not available

0400

-----

* RING, Retaining Spiral

$

$

Not available

0410

-----

* PIN, Jackshaft, 1/2 x 2.43

$

$

Not available

0420

-----

* MAGNET, Ring

$

$

Not available

0440

Snapper 1717965SM

SCREW, Hex Flange, 3/8-24 x 2-1/2

$4.49

$

Usually ships in 2-12 days

0

0480

-----

* ROD, Actuator Bypass

$

$

Not available

0490

-----

* ARM, Bypass

$

$

Not available

0500

-----

* RING, Retaining, External, 1/4

$

$

Not available

0510

-----

* SEAL, Lip, 1/4 x 3/4 x 1/4 TC

Note: (Not a serviceable part, order kit # 1270)

$

$

Not available

0520

-----

* WASHER, Flat, 5/8 x 1 x 1/2

$

$

Not available

0530

-----

* RING, Retaining

$

$

Not available

0540

-----

* BUSHING, Center Block

$

$

Not available

0550

-----

* SPRING, Block

$

$

Not available

0560

-----

* WASHER, Thrust, .59 x .79 x .04

$

$

Not available

0580

-----

* BRAKE YOKE KIT

$

$

Not available

0590

-----

* DISK, Brake

$

$

Not available

0600

-----

* PUCK, Brake

$

$

Not available

0610

-----

* PLATE, Puck

$

$

Not available

0620

-----

* PIN, Brake Actuating

$

$

Not available

0630

-----

* SCREW, Hex Head, With Patch, 1/4-20 x 2

$

$

Not available

0650

Snapper 1715199SM

SPACER, .26 x .57 x .87

$1.99

$

Usually ships in 2-12 days

0

0660

-----

* SPRING, Brake arm Bias

$

$

Not available

0670

Snapper 1706160SM

SCREW, Square Head, Ribbed, 5/16-24

$7.99

$

Usually ships in 2-12 days

0

0680

-----

* ARM, Brake

$

$

Not available

0690

-----

* NUT, Castle, 5/16-24

$

$

Not available

0700

-----

* PIN, Cotter, 3/32 x 3/4

$

$

Not available

0710

-----

* SPRING, Compression Brake, Anti-Drag

$

$

Not available

0720

-----

* WASHER, Flat, .51 x 1.0 x .03

$

$

Not available

0730

-----

* WASHER, Flat, .34 x .88 x .06

$

$

Not available

0740

-----

* KIT, Seal

$

$

Not available

0840

-----

* FITTING, 5/16 SAE 5/32 TUBE

$

$

Not available

0850

-----

* HOSE, Expansion Tank, 7.56 In.

$

$

Not available

0930

Snapper 1752466YP

SPRING CLIP, Housing Thrust (3/4" Axle)

$16.99

$

Usually ships in 2-12 days

0

0940

-----

* BEARING, Ball, .62 x 1.38 x .44

$

$

Not available

0950

-----

* CAPSCREW, Socket Head, 5/16-24 x 1-1/2

$

$

Not available

0960

-----

* SPACER, Locating

$

$

Not available

0970

-----

* SCREW, Countersunk, 5/16-18 x 1

$

$

Not available

0980

-----

* ARM, Return

$

$

Not available

0990

-----

* PUCK, Adjusting

$

$

Not available

1000

-----

* WASHER, Flat, .32 x 1.60 x .24

$

$

Not available

1010

-----

* SPRING, Extension, Double Loop

$

$

Not available

1020

-----

* SPACER, .26 x .56 x .87

$

$

Not available

1030

-----

* BRACKET, Torque

$

$

Not available

1080

-----

* WASHER, Flat, .71 x 1.16 x .04

$

$

Not available

1090

-----

* PLUG, 9/16-18 (METAL)

$

$

Not available

1100

-----

* SCREW, Torx Head, 5/16-18 x 1-1/2

$

$

Not available

1110

-----

* O-RING, .299 x .505 x . 103

Note: (Not a serviceable part, order kit # 1270)

$

$

Not available

1140

-----

* SPRING, Guide

$

$

Not available

1170

-----

* PIN, Spring, .304 x .75

$

$

Not available

1240

-----

* CENTERSECTION ASSEMBLY, Filter, Bypass

Note: (Not Illustrated) (Includes Ref. Nos. 0030, 1240-10 & 1250)

$

$

Not available

1240-10

-----

* CENTERSECTION (5-Piston)

Note: (Not a serviceable part, order kit # 1240)

$

$

Not available

1250

-----

* FILTER ASSEMBLY

Note: (Includes Ref. Nos. 1250-10, 1250-20, 1250-30, 1250-40 & 1250-50)

$

$

Not available

1250-10

-----

* BASE, Filter, With Poppet

Note: (Not a serviceable part, order kit # 1250)

$

$

Not available

1250-20

-----

* SPRING, Bypass, 1/2"

Note: (Not a serviceable part, order kit # 1250)

$

$

Not available

1250-30

-----

* ACTUATOR, Bypass

Note: (Not a serviceable part, order kit # 1250)

$

$

Not available

1250-40

-----

* DEFLECTOR

Note: (Not a serviceable part, order kit # 1250)

$

$

Not available

1250-50

-----

* BOTTOM, Filter

Note: (Not a serviceable part, order kit # 1250)

$

$

Not available

1260

Snapper 1752467YP

FAN & PULLEY KIT
(Superseded to 5102809X1YP)

Note: (Includes Ref. Nos. 1260-10, 1260-20, 1260-30, 1260-40 & 1260-50)

$152.99

$

Usually ships in 2-12 days

0

1260-10

-----

* FAN, 7" (10 BLADE)

Note: (Not a serviceable part, order kit # 1260)

$

$

Not available

1260-20

-----

* PULLEY, Cupped, 4-1/2"

Note: (Not a serviceable part, order kit # 1260)

$

$

Not available

1260-30

-----

* NUT, Hex Jam, With Patch, 1/2-20

Note: (Not a serviceable part, order kit # 1260)

$

$

Not available

1260-40

-----

* WASHER, Slotted, .53 x 1.63 x .06

Note: (Not a serviceable part, order kit # 1260)

$

$

Not available

1260-50

-----

* HUB, Pulley

Note: (Not a serviceable part, order kit # 1260)

$

$

Not available

1270

Snapper 1752468YP

SEAL & O-RING KIT

Note: (Includes Ref. Nos. 0170, 0340, 0510 & 1110)

$59.99

$

Usually ships in 2-12 days

0

1280

Snapper 1752469YP

EXPANSION TANK KIT

Note: (Includes Ref. Nos. 1280-10, 1280-20, 1280-30 & 1280-40)

$125.99

$

Usually ships in 2-12 days

0

1280-10

-----

* TANK, Expansion

Note: (Not a serviceable part, order kit # 1280)

$

$

Not available

1280-20

-----

* CAP, Expansion Tank

Note: (Not a serviceable part, order kit # 1280)

$

$

Not available

2000-20

-----

* PIN, 1/2

$

$

Not available

2000-10

-----

* GEAR, 60T

$

$

Not available

2000

-----

* KIT, 60T Bull Gear Diff Pins

Note: (Includes Ref. Nos. 2000-10 & 2000-20)

$

$

Not available

1280-40

-----

* BRACKET, Expansion Tank

Note: (Not a serviceable part, order kit # 1280)

$

$

Not available

1280-30

-----

* BOLT, Self Tapping, 10-32 x 1/2

Note: (Not a serviceable part, order kit # 1280)

$

$

Not available
