ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp Transmission Group Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

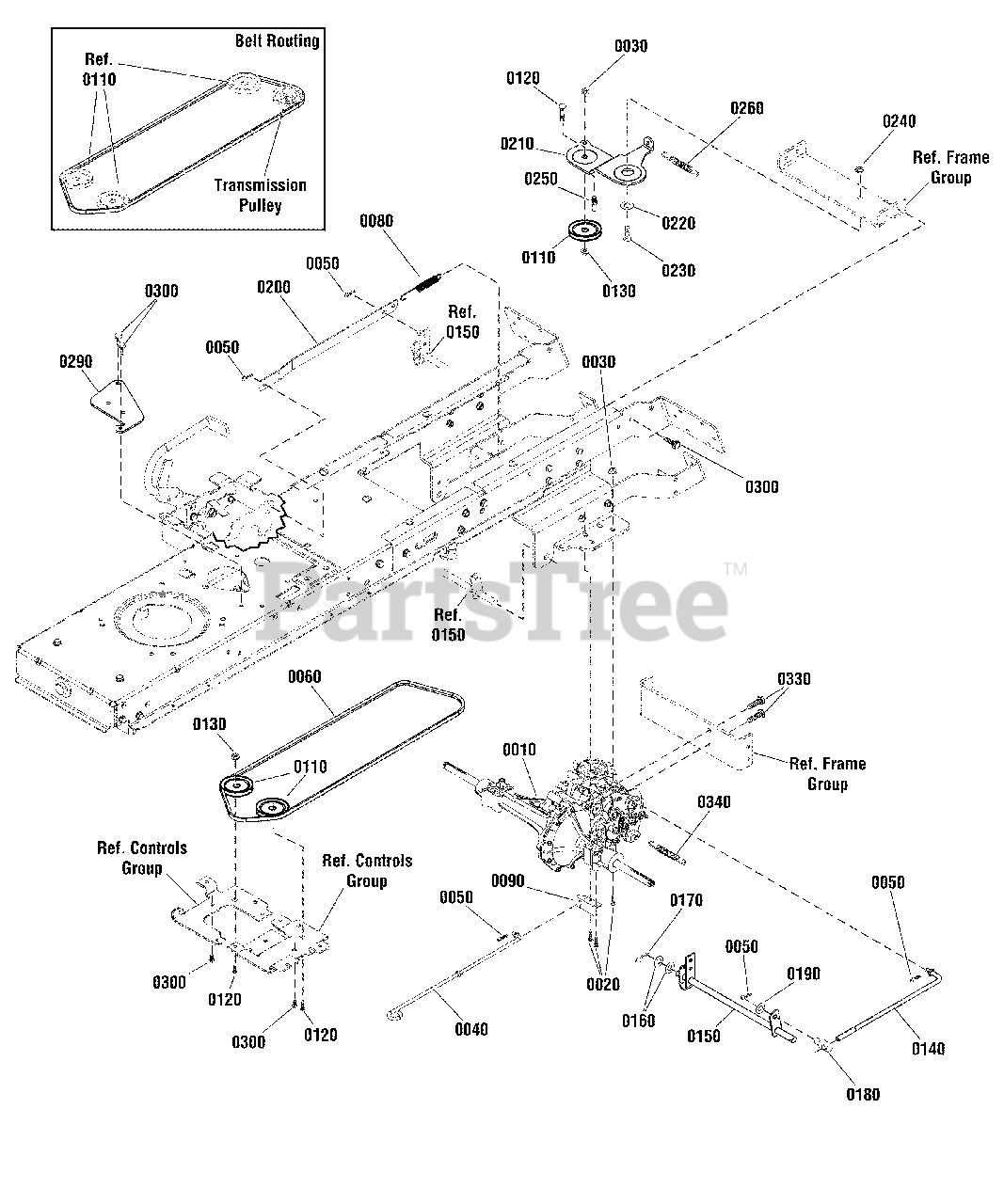

Transmission Group Parts Diagram

  • Title

0010

Snapper 885528

* TRANSMISSION, Hydro Gear, 610
(Superseded to 885528YP)

$1424.99

$

Usually ships in 2-12 days

0

0020

Snapper 1923141

SCREW, Hex Head Flange Lock, 5/16-18 x 2-3/4, G5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

0030

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 885436

LEVER, Roll Release
(Superseded to 885436YP)

$20.99

$

Usually ships in 2-12 days

0

0050

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0060

Snapper 885495

BELT, Secondary (81.37" EL, HA section)
(Superseded to 885495YP)

$38.99

$

Usually ships in 2-12 days

0

0080

Snapper 722481

SPRING, Extension
(Superseded to 165X75MA)

$8.49

$

Usually ships in 2-12 days

0

0090

Snapper 7300701BM

BRACKET, Roll Release
(Superseded to 7300701BMYP)

$3.99

$

Usually ships in 2-12 days

0

0110

Snapper 885645

PULLEY, Idler
(Superseded to 1760012YP)

$33.99

$

Usually ships in 2-12 days

0

0120

Snapper 1931352

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 5

0

0130

Snapper 720142

NUT, Hex Flange, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0140

Snapper 885476

SPEED CONTROL, Short Link
(Superseded to 885476YP)

$21.99

$

Usually ships in 2-12 days

0

0150

Snapper 885477A

SPEED CONTROL ASSEMBLY
(Superseded to 885477AYP)

$37.99

$

Usually ships in 2-12 days

0

0160

Snapper 720173

WASHER, Flat, 13/16
(Superseded to 017X91MA)

$5.49

$

In Stock, Qty 11

0

0170

Snapper 1960074

PIN, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 727774

NUT, Adjusting
(Superseded to 021920ZMA)

$17.99

$

Usually ships in 2-12 days

0

0190

Snapper 720166

WASHER, Flat, .41
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0200

Snapper 885480

LINK, Speed Control
(Superseded to 885480AYP)

$60.99

$

Usually ships in 2-12 days

0

0210

Snapper 885409A

BRACKET, Idler, Rear
(Superseded to 885409AYP)

$20.99

$

Usually ships in 2-12 days

0

0220

Snapper 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 1 left!

0

0230

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1, G5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0240

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0250

Snapper 885077

BELT GUIDE
(Superseded to 885077YP)

$5.99

$

Usually ships in 2-12 days

0

0260

Snapper 1731939

SPRING, Extension
(Superseded to 1731939SM)

$9.99

$

Usually ships in 2-12 days

0

0290

Snapper 885681A

PLATE, Front Fixed Idler
(Superseded to 885681BMYP)

$11.99

$

Usually ships in 2-12 days

0

0300

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0330

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0340

Snapper 722494

SPRING, Extension
(Superseded to 165X92MA)

$5.49

$

In Stock, only 2 left!

0
