ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp Steering Group Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

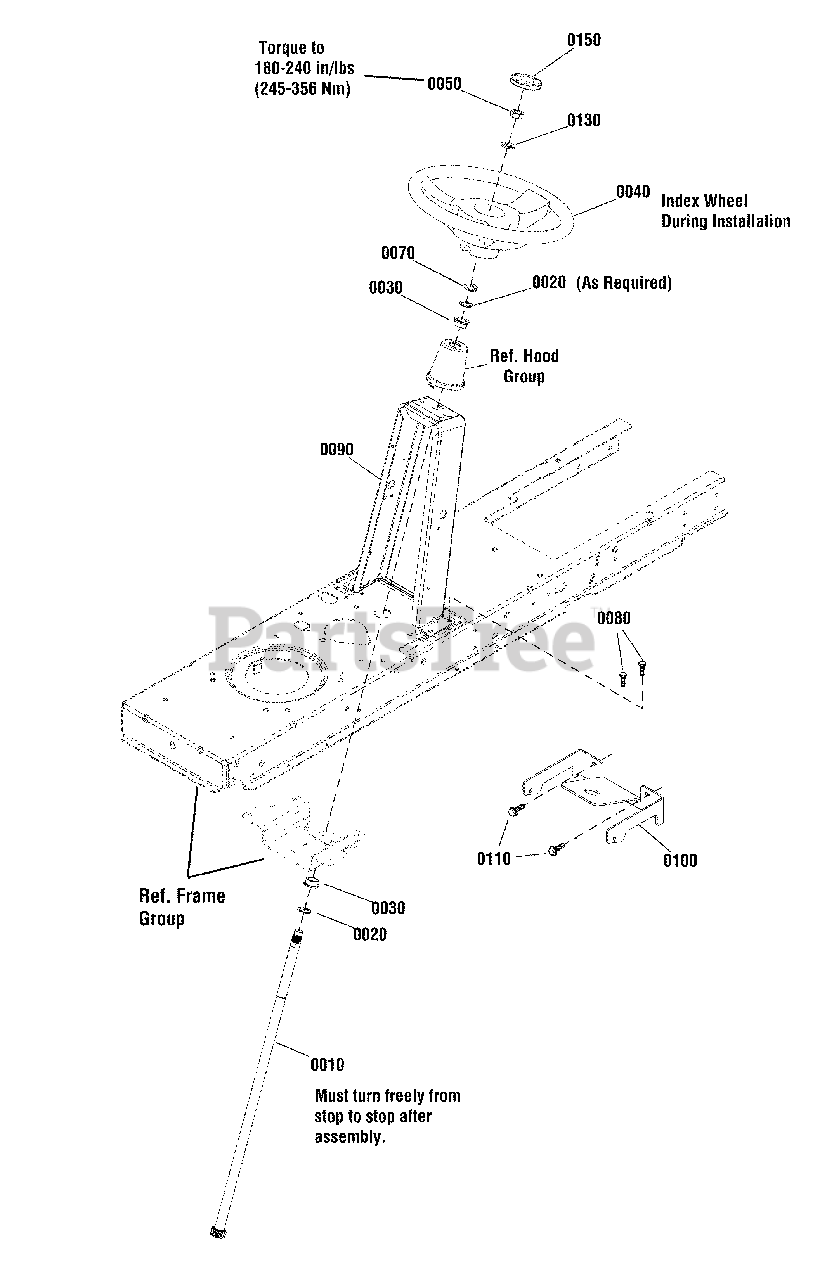

Steering Group Parts Diagram

  • Title
0010

Snapper 1727813

SHAFT, Steering Gear & Spline Yellow
(Superseded to 1727813SM)

$76.99

$

In Stock, Qty 20+

0

0020

Snapper 1960114

WASHER, 3/4 x 1
(Superseded to 80003650)

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 1729665

BUSHING, Steering
(Superseded to 1729665SM)

$5.99

$

In Stock, Qty 5

0

0040

Snapper 1728069

STEERING WHEEL
(Superseded to 1728069SM)

$74.99

$

Usually ships in 2-12 days

0

0050

Snapper 1960576

NUT, Hex Lock, ESNA Light, 5/8-18, Thin
(Superseded to 1960576SM)

$5.99

$

In Stock, Qty 9

0

0070

Snapper 1611710

RING, Klipring Extension
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 1930601

SCREW, Hex Washer Head, Taptite
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0090

Snapper 885530A

TOWER
(Superseded to 885835BMYP)

$76.99

$

Usually ships in 2-12 days

0

0100

Snapper 7300653BM

BRACKET, Tank
(Superseded to 7300653BMYP)

$33.99

$

Usually ships in 2-12 days

0

0110

Snapper 1925003

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

0130

Snapper 1924366

WASHER, 5/8 x 1-1/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 1725024

CAP, Steering Wheel, Plain
(Superseded to 1725024SM)

$7.49

$

In Stock, only 1 left!

0
